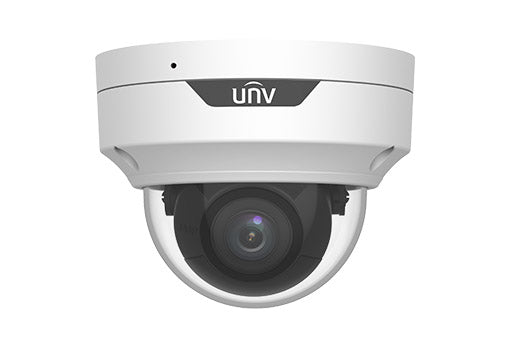

Uniview 4MP HD Intelligent LightHunter Cable-free IR VF Dome Network Camera - IPC3534SB-ADNZK-I0
Uniview 4MP HD Intelligent LightHunter Cable-free IR VF Dome Network Camera - IPC3534SB-ADNZK-I0
Utilizing Uniview's 4MP HD Intelligent LightHunter technology, the IPC3534SB-ADNZK-I0 dome network camera offers exceptional image quality and low light performance. With cable-free installation and a variable focal length lens, this camera provides a reliable and customizable surveillance solution.
Features
• High quality image with 4MP, 1/2.7"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98 ft) IR distance
• Supports 256 G Micro SD card
• Cable-free
• Support PoE power supply
Specifications
Camera | ||||||||
Sensor | 1/2.7", 4.0 megapixel, progressive scan, CMOS | |||||||
Minimum Illumination | Colour: 0.002 lux (F1.2, AGC ON) 0 lux with IR |
|||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment angle | Pan: 0° ~ 356° | Tilt: 0° ~ 70° | Rotate: 0° ~ 356° | |||||
WDR | 120dB | |||||||
S/N | >56dB | |||||||
Lens | ||||||||
Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | |||||||
Iris | Fixed | |||||||
Field of View (H) | 103.58°~ 31.05° | |||||||
Field of View (V) | 54.37°~ 17.55° | |||||||
Field of View (D) | 134.65°~36.63° | |||||||
DORI | ||||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
2.7 | 60.8 | 24.3 | 12.2 | 6.1 | ||||
13.5 | 303.8 | 121.5 | 60.8 | 30.4 | ||||
Illuminator | ||||||||
IR Range | Up to 30m (98ft) IR range | |||||||
Wavelength | 850nm | |||||||
IR On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||||
U-code | Support | |||||||
OSD | Up to 8 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 8 areas | |||||||
Video Stream | Triple streams | |||||||
Image | ||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
Dewarping | NA | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Intelligent | ||||||||
Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||||||
Statistical Analysis | People counting, support people flow counting and crowd density monitoring | |||||||
Events | ||||||||
Basic Detection | Motion detection, Ultra motion detection, tampering alarm, audio detection | |||||||
General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 8KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 256GB | |||||||
Network Storage | ANR, NAS(NFS) | |||||||
Network | ||||||||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||
Client | EZStation EZView EZLive |
|||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||
Interface | ||||||||
Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
Output: impedance 600Ω; amplitude 2V [p-p] | ||||||||
Alarm I/O | 1/1 | |||||||
RS485 | N/A | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 10M/100M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certifications | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
|||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power consumption: Max 6.5W | ||||||||
Power Interface | Cable-free | |||||||
Dimensions (Ø x H) | Φ128mmx100mm (Ø5.04” x 3.94”) | |||||||
Net Weight | 0.59kg (1.31lb) | |||||||
Material | Metal | |||||||
Working Environment | -30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing) | |||||||
Strorage Environment | -30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 6KV | |||||||
Reset Button | Support |
