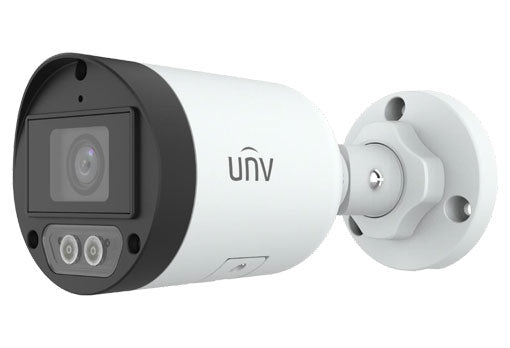

Uniview 4MP HD ColorHunter Mini Fixed Bullet Network Camera - IPC2124LB-AF28K-DL
Uniview 4MP HD ColorHunter Mini Fixed Bullet Network Camera - IPC2124LB-AF28K-DL
Expertly capture every detail and color with the Uniview 4MP HD ColorHunter Mini Bullet Network Camera. Its advanced technology and 4MP resolution provide unparalleled image clarity, while the fixed lens ensures precise focus. With its compact design and easy installation, it's the perfect choice for any surveillance needs.
Features
ā¢ High quality image with 4MP, 1/3"CMOS sensor
ā¢ 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
ā¢ Ultra H.265,H.265, H.264
ā¢ Support 9:16 Corridor Mode
ā¢ Built-in Mic
ā¢ Smart IR, up to 30m (98ft) IR distance
ā¢ Warm Light, up to 30m (98ft) warm light distance
ā¢ 2D/3D DNR (Digital Noise Reduction)
ā¢ Support 128GB Micro SD card
ā¢ IP67 protection
ā¢ Support PoE power supply
ā¢ 3-Axis
Specifications
Camera | ||||||||
Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
Minimum Illumination | Colour: 0.005 lux ( F1.6, AGC ON) 0 Lux with light |
|||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Adjustment Angle | Pan: 0Ā° ~ 360Ā° | Tilt: 0Ā° ~ 90Ā° | Rotate: 0Ā° ~ 360Ā° | |||||
WDR | DWDR | |||||||
S/N | >52dB | |||||||
Lens | ||||||||
Lens type | 2.8mm@F1.6 | |||||||
Iris | Fixed | |||||||
Field of View (H) | 97.0Ā° | |||||||
Field of View (V) | 52.2Ā° | |||||||
Field of View (D) | 107.5Ā° | |||||||
DORI | ||||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
2.8 | 63(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | ||||
Illuminator | ||||||||
IR Range | Up to 30m (98ft) | |||||||
Warm Light Range | Up to 30m (98ft) | |||||||
Light On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Video Compression | Ultra H.265,H.265, H.264 | |||||||
Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||
H.264 code profile | Baseline profile, Main profile, High profile | |||||||
Video Bit Rate | 128 Kbps~6144Kbps | |||||||
U-code | Support | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 8 areas | |||||||
Video stream | Dual streams | |||||||
Image | ||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
Smart Illumination | Support | |||||||
Flip | Normal/Vertical/Horizontal/180Ā°/90Ā°Clockwise/90Ā°Anti-clockwise | |||||||
Dewarping | N/A | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Events | ||||||||
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 64 Kbps | |||||||
Two-way Audio | N/A | |||||||
Suppression | Support | |||||||
Sampling Rate | 8KHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 128 GB | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, Qos, SMTP, SSL/TLS, SNMP | |||||||
Compatible Integration | ONVIF (Profile S, Profile T, Profile G),API,SDK | |||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||
Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF | |||||||
Client | EZStation EZLive EZView |
|||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||
Interface | ||||||||
Audio I/O | N/A | |||||||
Alarm I/O | N/A | |||||||
Serial Port | N/A | |||||||
Built-in Mic | Support | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC (FCC 47 CFR part15 B) |
|||||||
Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) | |||||||
General | ||||||||
Power | DC12V(Ā±25%) , PoE(IEEE 802.3af) | |||||||
Power consumption: Max 2.8W | ||||||||
Power Interface | Ć 5.5mm coaxial power plug | |||||||
Dimensions (L x W x H) | 162 Ć 67 Ć 67mm (6.4ā Ć 2.6ā Ć 2.6ā) | |||||||
Weight | 0.24kg(0.53lb) | |||||||
Material | Metal + Plastic | |||||||
Working Environment | -30Ā°C ~ 60Ā°C (-22Ā°F ~ 140Ā°F), Humidity: ā¤95% RH (non-condensing) | |||||||
Storage Environment | -30Ā°C ~ 60Ā°C (-22Ā°F ~ 140Ā°F), Humidity: ā¤95% RH (non-condensing) | |||||||
Surge protection | 4KV | |||||||
Reset button | N/A |
