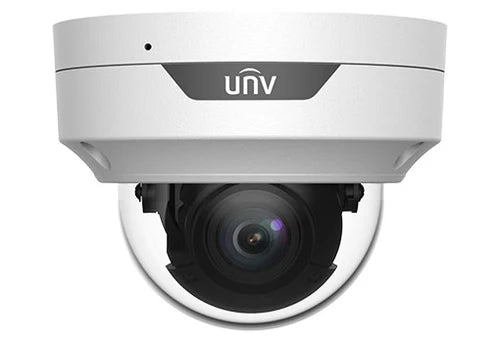

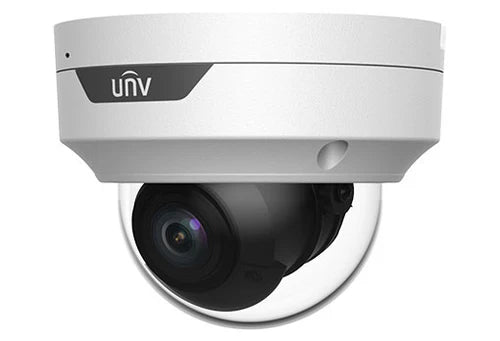

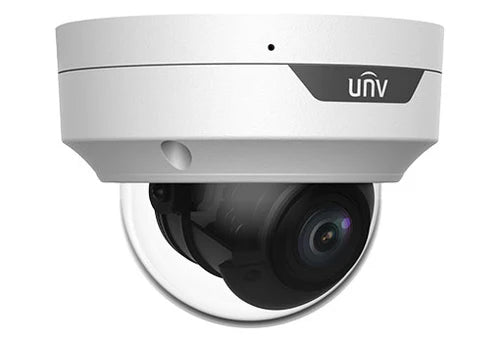

Uniview 4mp Colorhunter With Wise-isp Fixed Dome Network Camera - IPC3514SR-ADF28KM-WP
Uniview 4mp Colorhunter With Wise-isp Fixed Dome Network Camera - IPC3514SR-ADF28KM-WP
Regular price
$419.00 USD
Regular price
Sale price
$419.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Featuring Uniview's Colorhunter technology and Wise-isp fixed dome design, the IPC3514SR-ADF28KM-WP network camera captures high-quality 4mp footage in any lighting condition. With advanced algorithms and waterproof housing, this camera is an ideal solution for professional surveillance.
Features
High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter with Wise ISP technology ensures 24 hour full color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built in Mic
• Supports 256 GB Micro SD card
• IP67 protection
• IK10 protection
• Support PoE power supply
• 3 Axis
Specifications
| Camera | Description |
| Resolution | 4MP |
| Sensor | 1/1.8″CMOS |
| Min. Illumination | Colour: 0.0003 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | Description |
| Lens type | IPC3624SR-ADF28KM-WP:2.8mm IPC3624SR-ADF40KM-WP:4.0mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | IPC3624SR-ADF28KM-WP:110.4° IPC3624SR-ADF40KM-WP:89.4° |
| Field of View (V) | IPC3624SR-ADF28KM-WP:60.5° IPC3624SR-ADF40KM-WP:48.2° |
| Field of View (D) | IPC3624SR-ADF28KM-WP:115.2° IPC3624SR-ADF40KM-WP:94.7° |
| DORI | Description |
| DORI Distance(Lens) | IPC3624SR-ADF28KM-WP:2.8mm IPC3624SR-ADF40KM-WP:4.0mm |
| DORI Distance(Detect) | IPC3624SR-ADF28KM-WP:43.4m(142.5.7ft) IPC3624SR-ADF40KM-WP:62.1(203.6ft) |
| DORI Distance(Observe) | IPC3624SR-ADF28KM-WP:17.4(57.0ft) IPC3624SR-ADF40KM-WP:24.8(81.5ft) |
| DORI Distance(Recognize) | IPC3624SR-ADF28KM-WP:8.7(28.5ft) IPC3624SR-ADF40KM-WP:12.4(40.7ft) |
| DORI Distance(Identify) | IPC3624SR-ADF28KM-WP:4.3(14.3ft) IPC3624SR-ADF40KM-WP:6.2(20.4ft) |
| Illuminator | Description |
| Illumination Distance(Warm Light) | 30m |
| Light On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
| Video Bit Rate | 128 Kbps~6144Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Dual streams |
| Image | Description |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart Illumination | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | Description |
| Basic Detection | Motion detection; Ultra motion detection; Tampering alarm; Audio detection; Cross line (based on human body detection); Intrusion (based on human body detection) |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| Audio | Description |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | Description |
| Edge Storage | Micro SD，up to 256 GB |
| Network Storage | ANR; NAS(NFS) |
| Network | Description |
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client | UNV‑Link; UNV‑Link Pro; EZStation |
| Web Browser | Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | Description |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base‑TX Ethernet |
| Video Output | N/A |
| Certification | Description |
| EMC | CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) |
| Environment | CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| General | Description |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 2.8W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Φ118x106mm (Ø4.6” x 4.2”) |
| Weight | 0.48kg(1.06lb) |
| Material | Metal |
| Working Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Surge protection | 4KV |
| Reset button | Support |
| Web Client Language | 13 Languages English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
