TriStar Security Products

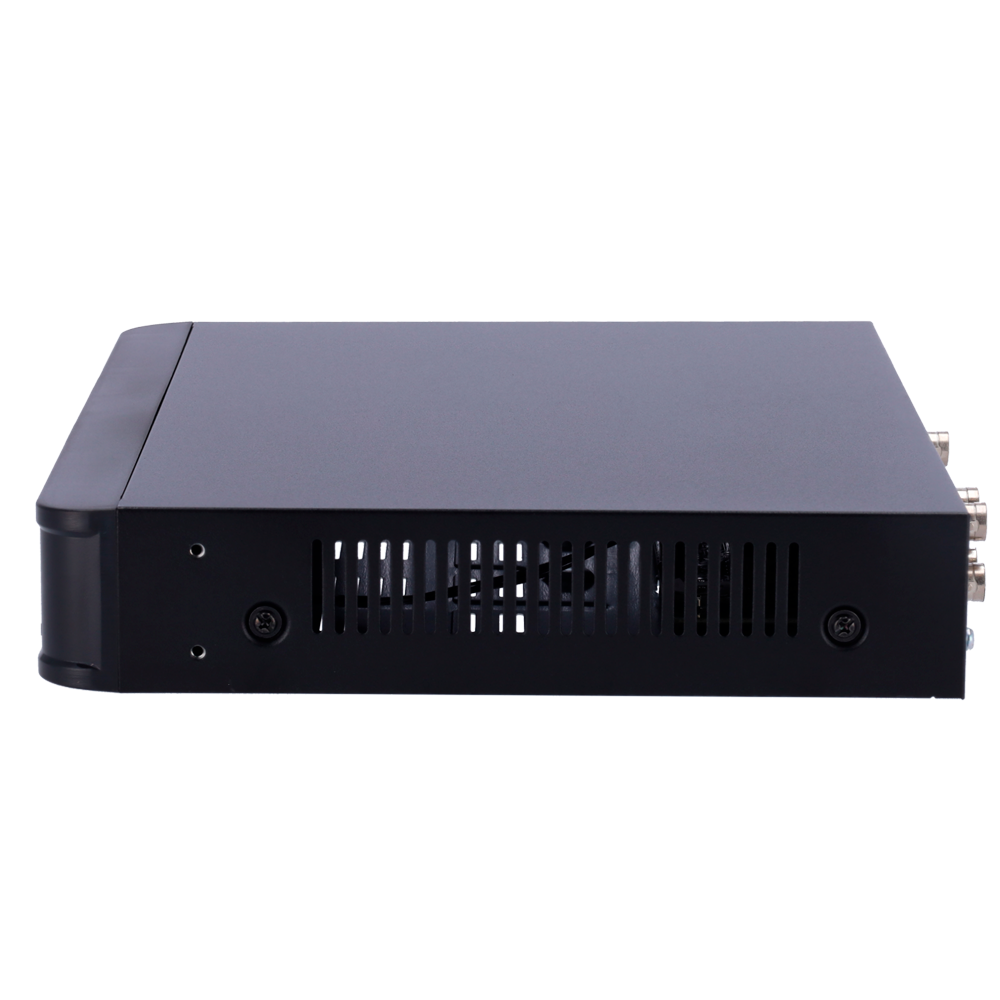

Uniview 4 Channel DVR, XVR, 4K, With 4 BNC - XVR301-04Q3
Uniview 4 Channel DVR, XVR, 4K, With 4 BNC - XVR301-04Q3
Regular price
$209.00 USD
Regular price
Sale price
$209.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Experience high-quality surveillance with the Uniview 4 Channel DVR, XVR, 4K, and 4 BNC - XVR301-04Q3. Featuring a 4K resolution, this DVR provides crystal clear images and includes 4 BNC ports for seamless connectivity. Keep your space secure with the reliable and advanced technology of Uniview.
Features
- Uniview DVR 5-in-1
- Easy range for simple setup
- 4 BNC video channels (IP-replaceable)
- Supports AHD, TVI, CVI, CVBS, and IP cameras
- 2 additional IP channels for expanded coverage
- 40 Mbps bandwidth supported
- Maximum IP camera resolution: 4 MP
- Maximum analog camera resolution: 8 MP
- Audio input/output supported
- Alarm integration for enhanced security
- HDMI and VGA output for display options
- RS485 interface for PTZ camera control
- 2 x USB 2.0 ports
- Includes a mouse for easy navigation
- Supports 1 HDD up to 8 TB for storage
- Access via WEB, CMS, smartphone, and NVR interface
Specifications
| Brand | Uniview |
| Range | Easy |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4 CH BNC |
| Hybrid configuration | 2 IP channels (IP only up to 6 channels) substituting all BNC channels |
| Video outputs | 1 HDMI, 1 VGA (1920x1080p) |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Alarms | 4 inputs/ 1 outputs |
| Maximum IP recording resolution | 4K |
| Analog cameras supported | Supports AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Supports TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Supports CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Supports CVBS input |
| Main Stream recording encoding | 8MP Lite/5MP/5MP Lite/4MP Lite/1080P/720P/CIF |
| Incoming bandwidth | 40 Mbps (up to 48 Mbps after all analog channel conversion) |
| Outgoing bandwidth | 48 Mbps |
| Recording method | Manual, programmed, motion detection |
| Network interface | 1 auto-adaptive Ethernet interface RJ45 10M/100M |
| Internal memory | 1 SATA HDD 3.5" of up to 8 TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 10W |
| Dimensions / Weight | 47 (H) x 260 (W) x 226 (D) mm / 1.1 kg |
