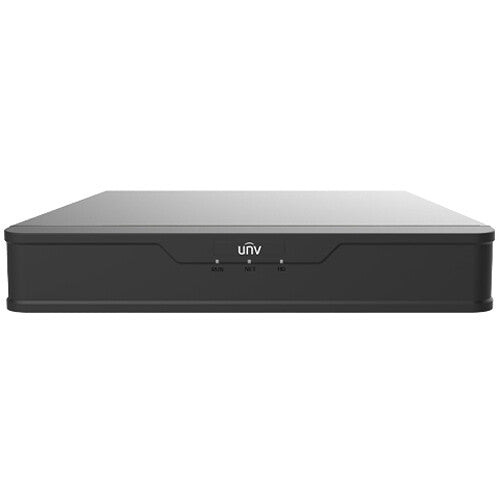

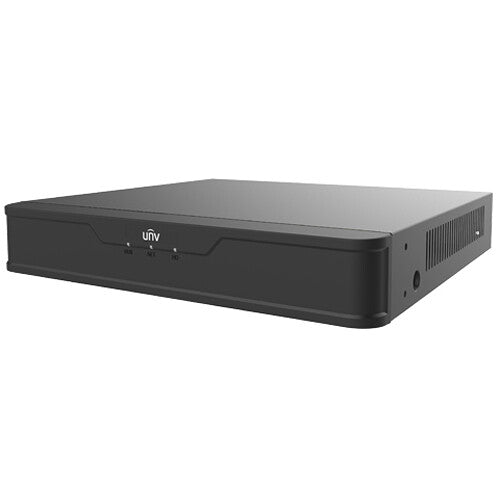

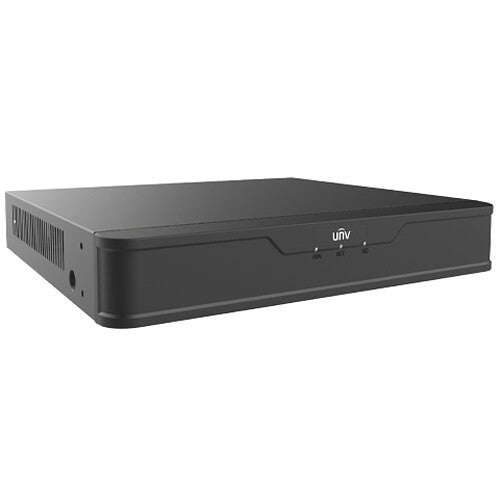

Uniview 4-Channel 8MP NVR - NVR501-04B-P4
Uniview 4-Channel 8MP NVR - NVR501-04B-P4
Regular price
$459.00 USD
Regular price
Sale price
$459.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
As a product expert, you can trust the Uniview 4-Channel 8MP NVR - NVR501-04B-P4 to efficiently record and store your high-resolution videos. With four channels available, this NVR ensures reliable surveillance of your property. Its 8MP capabilities provide high-quality video footage, perfect for identifying details and securing your space.
Features
- Plug-and-play operation
- 4K UHD HDMI and 1080p VGA video output
- 4-channel synchronous playback
- 3/4 corridor mode screen
- ANR technology enhances storage reliability when the network is disconnected
- Can be upgraded via cloud
Specifications
| Category | Specifications |
|---|---|
| Number of Channels | 4 |
| Playback Resolution |
HDMI: 3840 x 2160 at 30 Hz, 1920 x 1080 at 60 Hz VGA: 1920 x 1080 at 60 Hz |
| Recording Resolution | 1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP |
| PTZ Support | Yes |
| Throughput | 80 Mb/s (Incoming), 64 Mb/s (Outgoing) |
| IP Camera Support | 4 |
| Decoding Resolution | 4 Channels: 4K at 30 fps |
| 2-Way Audio | Yes |
| A/V I/O | 1x HDMI, 1x VGA, 1x RCA Audio Input, 1x RCA Audio Output |
| Communication I/O | 4x RJ45 10/100 Mb/s Ethernet (Rear) PoE, 1x RJ45 10/100 Mb/s Ethernet (Rear), 1x USB-A 2.0 (Front), 1x USB-A 3.0/3.1/3.2 Gen 1 (Rear) |
| Audio I/O | 1x Input, 1x Output |
| System Connection | 1x SATA |
| Wi-Fi | No |
| Bluetooth | No |
| Maximum User Access | 128 |
| Network Protocols | DDNS, DHCP, DNS, HTTP, HTTPS, NTP, P2P, PPPoE, SMTP, SNMP, TCP/IP, UPnP |
| Supported Video Codecs | H.265 |
| Supported Audio Codecs | G.711A, G.711U |
| Software Upgrade | Network |
| Supported IEEE Standards | 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W) |
| Installed Drive | No |
| Max Capacity Supported | 8 TB (Total) |
| Number of Bays | 1x Internal |
| OS Compatibility | Windows |
| Mobile App Compatibility | Yes: Android & iOS App Name: EZView, EZLive |
| Web Browser Support | Chrome, Edge, Firefox, Internet Explorer |
| Notifications |
Event Trigger: Alarm, Disconnected, Disk Failure, Disk Full, Motion, Network Loss, Recording, Snapshot, Sound, Tampering, Tracking, Video Loss Notification Type: Buzzer, Email, SNMP |
| Search Modes | Event, Object, Smart Search, Snapshot |
| Recording Modes | Alarm, Analytics, Event, Motion, Schedule, Tampering, Video Loss |
| Dual Streaming | Yes |
| Multi-Screen Configuration | 1, 4 |
| Fisheye Dewarping | No |
| Power Consumption | 10 W (Without HDD) |
| Power Supply Type | External |
| PoE Power Budget | 50 W |
| PoE per Port | 30 W |
| Input Power | 48 VDC at 1.35 A |
| Built-In Display | No |
| Operating Conditions | 14 to 131°F / -10 to 55°C, up to 90% Humidity |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| LED Indicators | Yes |
| Dimensions (W x D x H) | 10.2 x 8.7 x 1.9" / 260.0 x 222.0 x 47.0 mm |
| Weight | 2.16 lb / 0.98 kg |
| Package Weight | 3.405 lb |
| Box Dimensions (L x W x H) | 16.7 x 11.1 x 2.8" |
