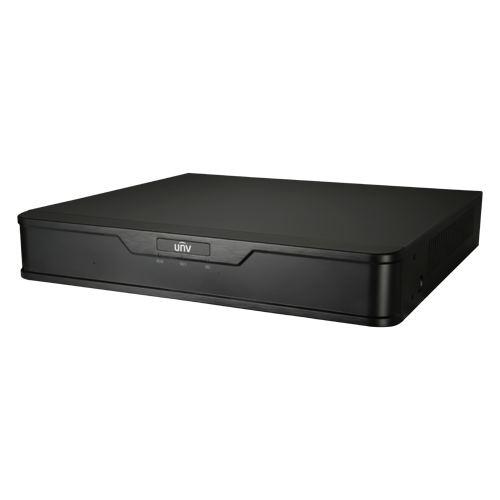

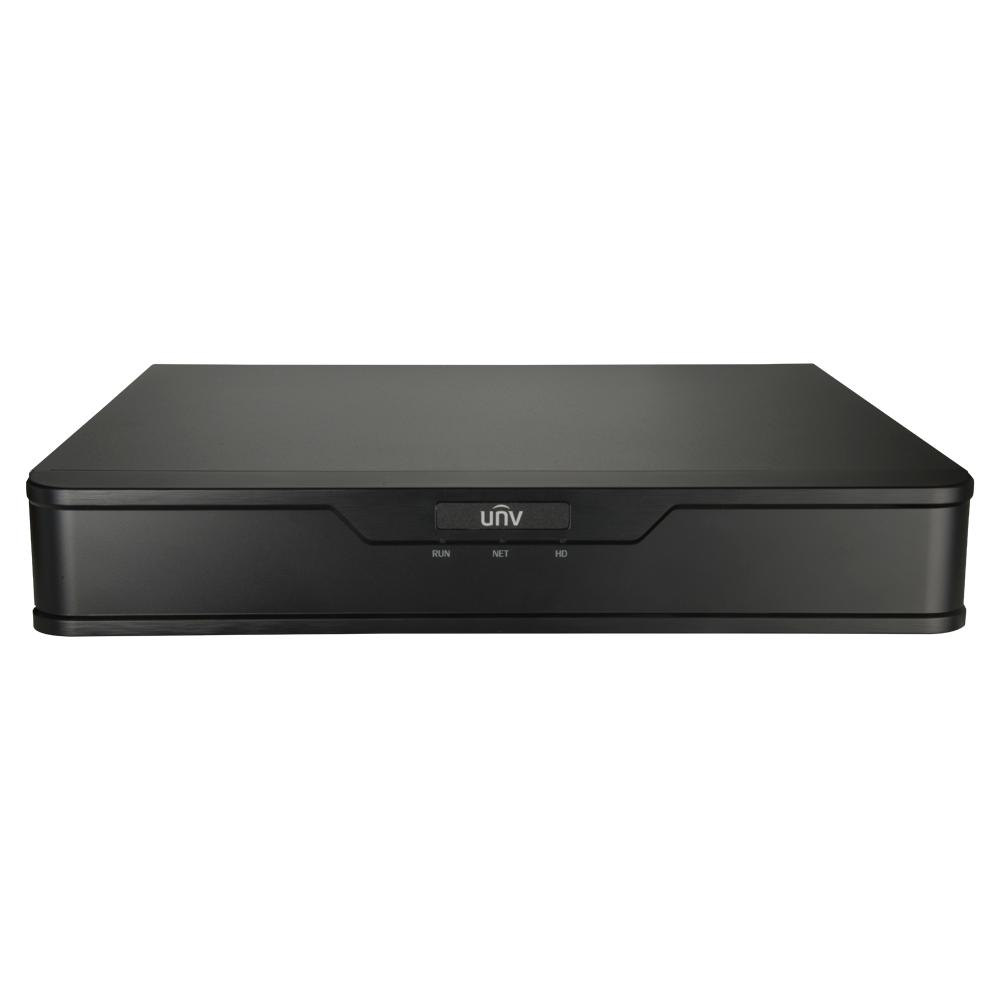

Uniview 4-ch 1-SATA Ultra 265/H.265/H.264 NVR - NVR301-04S3-P4

Uniview 4-ch 1-SATA Ultra 265/H.265/H.264 NVR - NVR301-04S3-P4

$319.00 USD
$319.00 USD
Sale Sold out
Shipping calculated at checkout.

Streamline your surveillance system with the Uniview 4-ch 1-SATA Ultra 265/H.265/H.264 NVR. Enjoy high-quality video storage and efficient compression technology, ensuring maximum storage capacity and cost-effectiveness. Expertly designed for optimal functionality and performance.

Features

  • For IP cameras
  • Easy range
  • 4 Channels (CH)
  • 64 Mbps bandwidth supported
  • Maximum resolution: 8 Megapixel
  • Compression: Ultra265/H.265/H.264
  • Audio output
  • VGA and HDMI 4K output
  • Corridor mode
  • Mouse control
  • Space for 1 HDD up to 6 TB
  • 4 PoE ports IEEE802.3af/at
  • WEB, CMS, Smartphone, and NVR interface
  • ONVIF Compatible


Specifications

Brand Uniview
Range Easy
Inputs for IP cameras LAN port up to 4 channels
Power over Ethernet 4 PoE IEEE802.3at(max.54 port switch W)
IP compatible cameras UNIVIEW, ONVIF
Bidirectional audio 1 RCA output
Video outputs 1 HDMI 4K, 1 VGA
Video compression format Ultra H.265 / H.265 / H.264
Display resolution 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Total bandwidth 64 Mbps downstream / 48 Mbps upstream
Main Stream recording 4K / 5Mpx 4Mpx 3Mpx / 1080p / 960p 720p / D12CIF / CIF
Decoding 1x4K @ 30fps / 4x5MPx @ 25fps / 4x4MPx @ 25fps
Smart Intrusion Prevention Available at 4 channels
Recording method Manual, programmed, motion detection
External Backup USB / HDD USB memory
Internal memory 1 SATA HDD 3.5" of up to 6 TB (not included)
Communication 2 x USB 2.0 / 1 x RJ45 (Ethernet)
Remote access EZStation Web Browser, Smartphone App and PC Software
Power DC 48 V
Dimensions / Weight 46(Al) x 260(An) x 240 (D) mm / 1Kg
