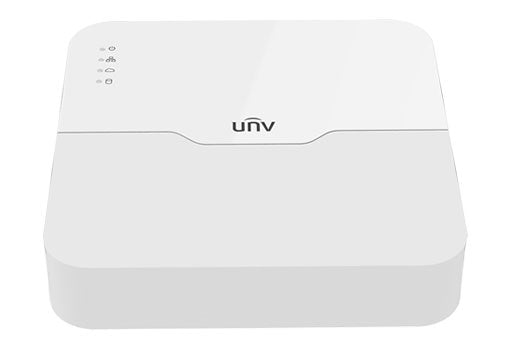

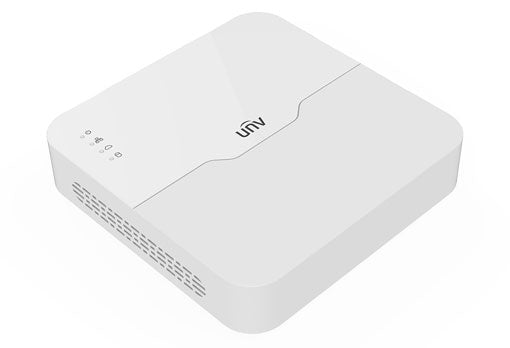

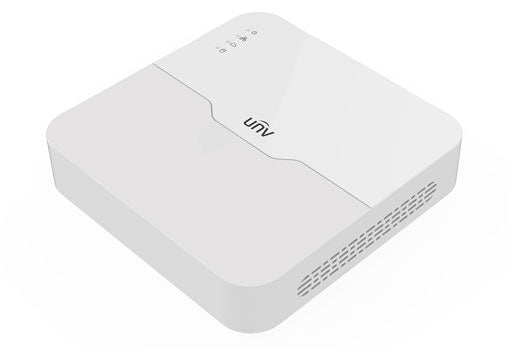

Uniview 4-ch 1-SATA Ultra 265/H.265/H.264 NVR - NVR301-04LX-P4

Uniview 4-ch 1-SATA Ultra 265/H.265/H.264 NVR - NVR301-04LX-P4

Regular price $369.00 USD
Regular price Sale price $369.00 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade your surveillance system with the Uniview 4-channel 1-SATA Ultra 265/H.265/H.264 NVR - NVR301-04LX-P4. With advanced compression technology, this NVR allows for efficient storage and smooth live view and playback. It's the perfect solution for large-scale CCTV systems.

Features

  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 4K resolution recording
  • 1 SATA HDD up to 6 TB
  • Support cloud upgrade


Specifications

Model NVR301-04LX-P4
Video/Audio Input
IP Video Input 4-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output HDMI:
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 4-ch
Liveview display 1/4
Corridor Mode Screen 3/4
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Decoding
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30
Hard Disk
SATA 1 SATA interface
Capacity up to 6TB for each disk
(The maximum HDD capacity varies with environment temperature)
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
VCA Search Behavior Search
People counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), UMD by Camera Total 4-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB2.0,1 x USB3.0
RS232 NA
RS485 NA
Alarm In NA
Alarm Out NA
PoE
Interface 4 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 54W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption: ≤9 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 205mm × 205mm × 47mm (8.1"×8.1"×1.8 ")
Weight (without HDD) ≤0.6kg (1.32 lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC Part15 Subpart B, ANSI C63.4
