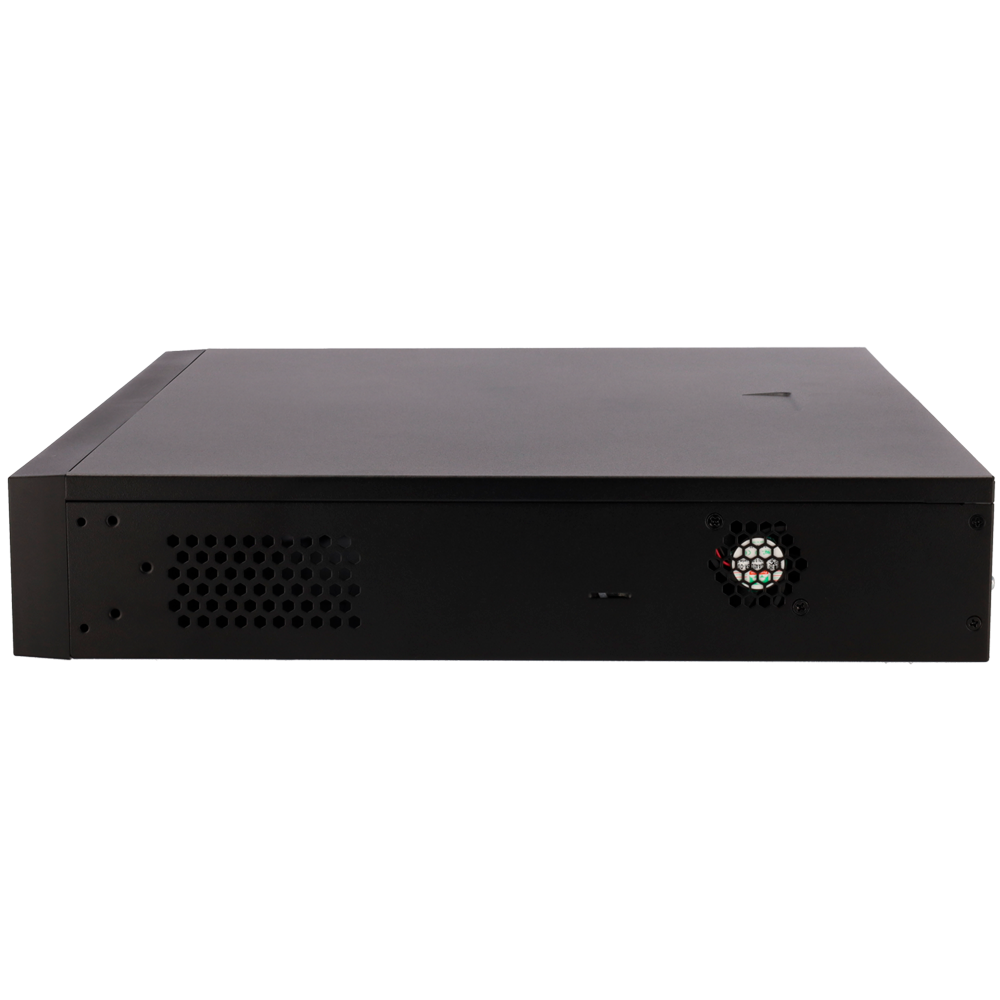

As an industry expert, trust the Uniview 32 Channel NVR 4 SATA Interface - NVR504-32B-P16-IQ to provide reliable and efficient video recording for up to 32 channels. With 4 SATA interfaces, this NVR allows for ample storage capacity so you never miss a moment of footage.
By IPC: Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter/Leave Area), Ultra Motion Detection, Temperature Detection, People Counting, Video Metadata, Traffic Monitoring By NVR: SIP, UMD
VCA Search
Motor Vehicle, Non-Motor Vehicle, Human Body, People Counting Report, Heat Map
Image Search
Supported
Vehicle Picture Library
5 libraries, up to 25,000 pictures in total
Capacity of Snapshot Records
2M vehicle snapshots, 3M SIP records, 2M video Metadata records
General Alarm
Defocus Detection, Scene Change, Object Left Behind/Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline/Abnormal, Illegal Access, Low Disk Space, Full Disk, Snapshot Abnormal, Array Damaged/Degraded
GUI Language
38 languages, including English, Spanish, Portuguese, French, German, Russian, Arabic, Korean, Japanese, and more
Hard Disk
4 SATA interfaces, up to 16TB each, RAID 1/5 supported
Network Interface
1x RJ45 10M/100M/1000M Ethernet
USB Interface
1x USB 2.0 (front), 1x USB 2.0 + 1x USB 3.0 (rear)
RS485
1
Alarm In/Out
16-ch In, 4-ch Out
PoE Interface
16x RJ45 10M/100M self-adaptive, Max 30W per port, 150W total
