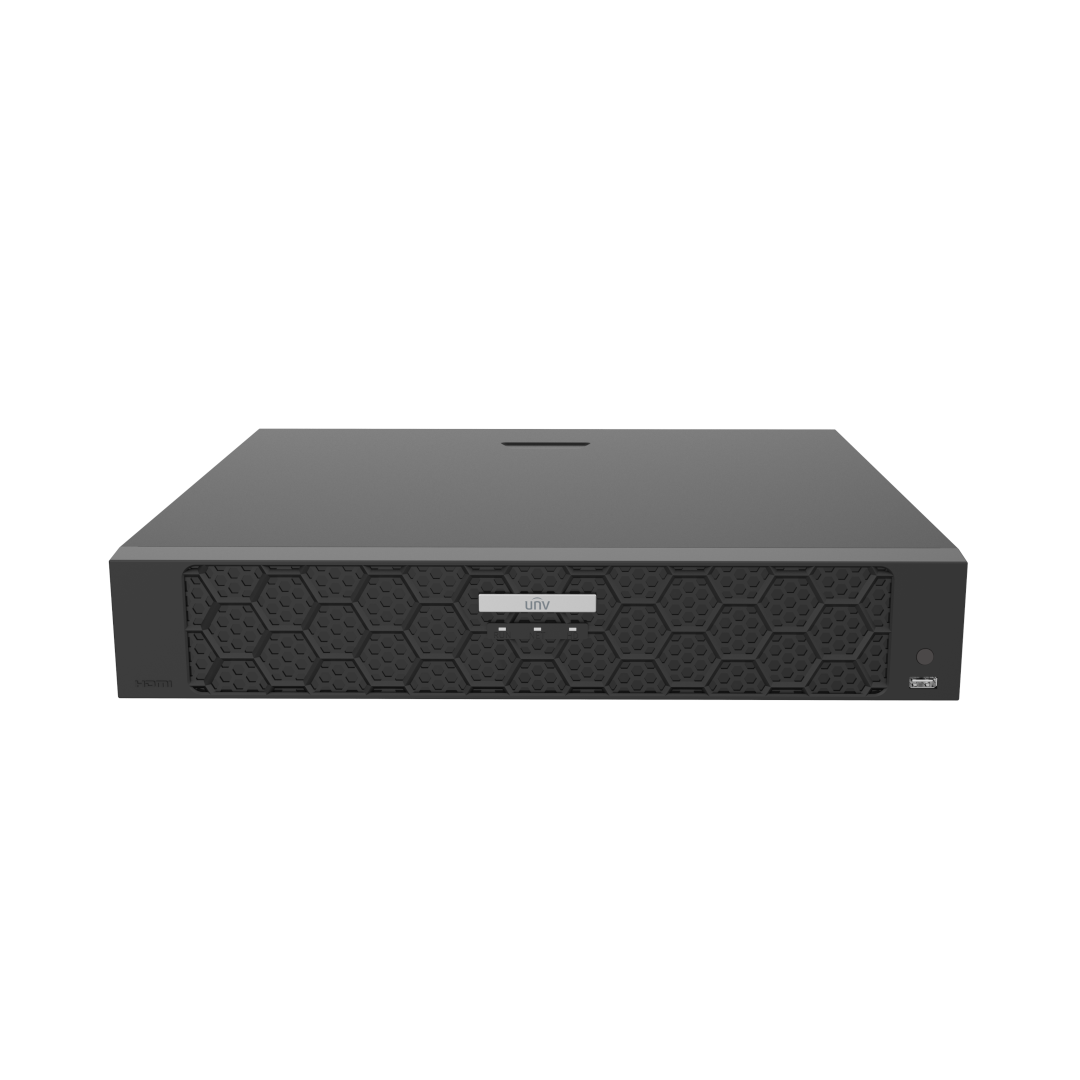

Uniview 32 Channel NVR 4 SATA Interface - NVR504-32B-IQ

Uniview 32 Channel NVR 4 SATA Interface - NVR504-32B-IQ

$1,339.00 USD
$1,339.00 USD
Sale Sold out
Shipping calculated at checkout.

Effortlessly manage your security system with the Uniview 32 Channel NVR 4 SATA Interface - NVR504-32B-IQ. Connect up to 32 channels and 4 SATA devices, ensuring efficient storage and backup for all your video footage. Trust in the expertise of Uniview to keep your property safe and secure.

Features

  • Support Ultra 265/H.265/H.264 video formats
  • 16/32 channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
  • VGA and HDMI independent output
  • Up to 16 Megapixels resolution recording
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • Complies with Section 889 of the NDAA


Specifications

Category Specifications
Decoding Format Ultra 265, H.265, H.264
Decoding Capability Smart Off:
2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30
Smart On:
2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 24 x 720P@30, 32 x D1
Audio Compression G.711A, G.711U
Incoming Bandwidth Smart Off: 320Mbps, Smart On: 160Mbps
Outgoing Bandwidth 160Mbps
Remote Users 128
Supported Protocols TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6
Supported Browsers Windows: IE (10/11), Firefox (52+), Chrome (45+), Edge (79+)
IP Video Input NVR504‑16B‑IQ: 16-ch
NVR504‑32B‑IQ: 32-ch
Video/Audio Output HDMI: 4K@30Hz, 1080p@60Hz, 720p@60Hz
VGA: 1080p@60Hz, 720p@60Hz
RCA Audio: 1-ch
Live View Display NVR504‑16B‑IQ: 1/4/6/8/9/16
NVR504‑32B‑IQ: 1/4/6/8/9/16/25/32
Corridor Mode Screen NVR504‑16B‑IQ: 3/4/5/7/9/10/12/16
NVR504‑32B‑IQ: 3/4/5/7/9/10/12/16/32
Recording Resolution 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, 2CIF, CIF
Smart Features (NVR/IPC) Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD), Vehicle/People Detection, Video Metadata, Traffic Monitoring
Snapshot 4-ch snapshot, up to 4K resolution
Alarm Defocus Detection, Scene Change, Motion Detection, Human Body Detection, IP Conflict, Disk Abnormal, Illegal Access
Storage Capacity Up to 16TB per HDD (4 SATA interfaces), RAID 1/5 support
Network Interface 2 RJ45 10M/100M/1000M Ethernet
External Ports 1 x USB 2.0 (front), 1 x USB 2.0, 1 x USB 3.0 (rear), RS485, 16-ch Alarm In, 4-ch Alarm Out
Power Supply DC 12V/5A, Power Switch support
Power Consumption ≤ 12W (without HDD)
Weight/Dimensions 7.5lb (3.4kg)
17.3" x 13.5" x 1.9" (440mm x 344mm x 48mm)
Operating Environment Temp: 14°F ~ 122°F (-10°C ~ 50°C)
Humidity: ≤ 90% RH (non-condensing)
Certifications CE, FCC, UL, RoHS, WEEE
