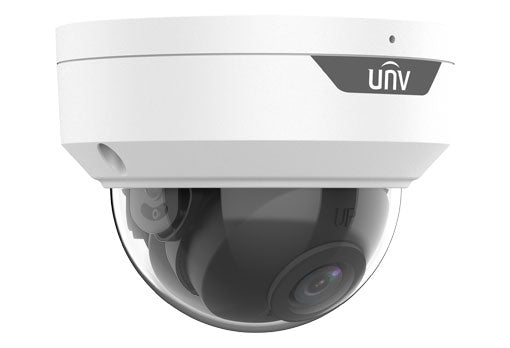

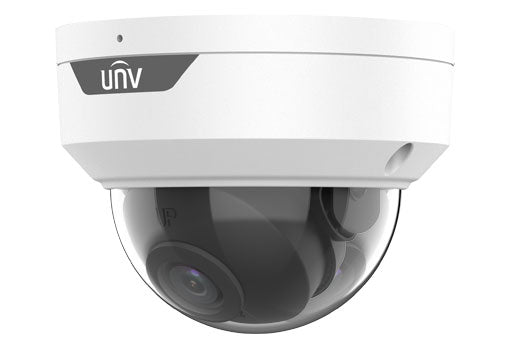

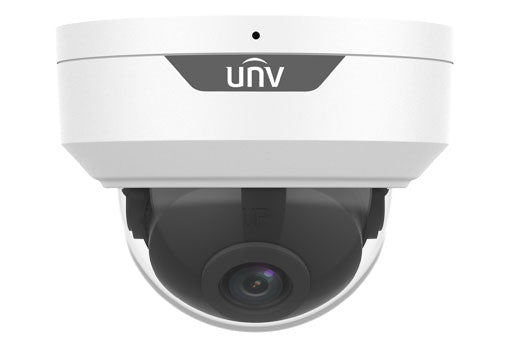

Uniview 2MP WIFI Fixed Dome Network Camera - IPC322LB-AF28WK-G

Uniview 2MP WIFI Fixed Dome Network Camera - IPC322LB-AF28WK-G

$209.00 USD
$209.00 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade your surveillance system with the Uniview 2MP WIFI Fixed Dome Network Camera - IPC322LB-AF28WK-G. With its advanced technology, this camera offers crystal clear 2MP resolution and wireless connectivity for easy installation and remote access. Capture every detail with confidence and ease.

Key Features:

• High quality image with 2MP, 1/2.9"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 128 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• 3-Axis

Specifications

  IPC322LB-AF28WK-G
Camera
Sensor 1/2.9", progressive scan , 2.0 megapixel, CMOS
Min. Illumination Colour: 0.01 lux (F2.0, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1~1/100000 s
Adjustment angle Pan: 0°~352° Tilt: 0°~70° Rotate: 0°~350°
S/N >52dB
WDR DWDR
Lens
Lens Type 2.8mm @F2.0
Iris Fixed
Field of View (H) 101.1°
Field of View (V) 55.0°
Field of View (D) 111.0°
DORI
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 45.0 18.0 9.0 4.5
Illuminator
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~6 Mbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video stream Dual streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Human body detection, Motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 128GB
Network Storage ANR,NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Wi-Fi
Wireless Standards IEEE802.11b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20 MHz Support
Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Security 64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power 802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @54Mbps
802.11n: 12.5±1.5dBm @150Mbps
Receive Sensitivity 802.11b: -90dBm @11Mbps (Typical)
802.11g: -75dBm @54Mbps (Typical)
802.11n: -74dBm @150Mbps(Typical)
Transmission Rate 802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Interface
Audio I/O N/A
Alarm I/O N/A
RS485 N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI Support
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
RF FCC ID (FCC CFR 47 part15 C)
CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09))
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
Power DC 12V±25%
Power consumption: Max 4.0W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ109 x 83 mm (Ø4.29” x 3.3”)
Weight 0.32 kg (0.71 lb)
Material Metal + Plastic
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection 4KV
Reset Button Support
