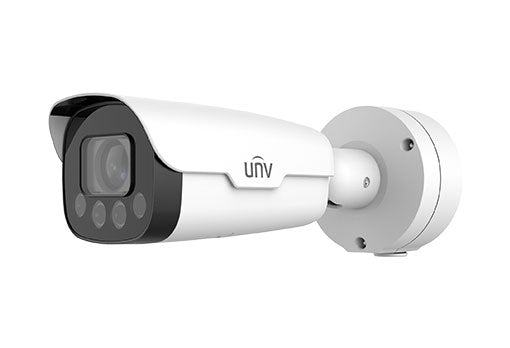

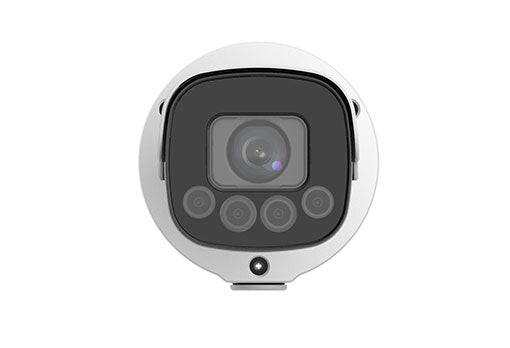

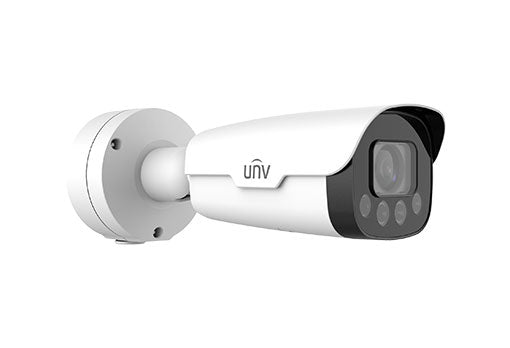

Uniview 2MP Lighthunter WDR Network IR Bullet Camera - IPC262EB-HDX10K-I0
Uniview 2MP Lighthunter WDR Network IR Bullet Camera - IPC262EB-HDX10K-I0
Regular price
$1,939.00 USD
Regular price
Sale price
$1,939.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Expertly capture high-quality images with the Uniview 2MP Lighthunter WDR Network IR Bullet Camera. Its advanced technology, including WDR and IR capabilities, ensures clear and detailed footage in any lighting condition. Stay informed and secure with this powerful camera at your disposal.
Features
- High-quality image with 2MP, 1/2.8’’ CMOS sensor
- 1920x1080 resolution at 60fps in the main stream
- Ultra 265, H.265, H.264, and MJPEG compression formats
- Triple streams provide flexibility for different client needs in integrated solutions
- 10x optical zoom for detailed, close-up viewing
- Smart intrusion prevention with false alarm filtering, including Cross Line, Intrusion, Enter Area, and Leave Area detection
- People Counting feature supports flow counting and crowd density monitoring for various statistical scenarios
- LightHunter technology delivers excellent image quality in low-light environments
- Up to 120 dB Optical WDR (Wide Dynamic Range) for better contrast and visibility
- Built-in heater allows for normal start-up in low temperatures
- Powered by DC12V or PoE+ (IEEE 802.3at)
Specifications
| Camera | |||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour:0.002 lux (F1.6, AGC ON) 0 lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens type | 5~50mm@F1.6, AF automatic focusing and motorized zoom lens | ||||
| Iris | DC-iris | ||||
| Field of View (H) | 4.71°~55.87° | ||||
| Field of View (V) | 2.65°~33.21° | ||||
| Field of View (D) | 5.56°~68.72° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 5 | 82.2(269.8ft) | 32.9(107.9ft) | 16.4(54.0ft) | 8.2(27.0ft) | |
| 50 | 977.6(3207.3ft) | 391.0(1282.9ft) | 195.5(641.5ft) | 97.8(320.7ft) | |
| Illuminator | |||||
| IR Range | Up to 100m (328.1 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 1080P (1920*1080),Max 60fps; Sub Stream: 1080P (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas per scene | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Intelligent | |||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8KHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZLive EZView |
||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||
| Interface | |||||
| Audio I/O | 1/1 | ||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | N/A | ||||
| Built-in Speaker | N/A | ||||
| Built-in Heater | Support | ||||
| WIFI | N/A | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC | ||||
| Certification | |||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
||||
| General | |||||
| Power | DC12V(±25%) , PoE+ (IEEE 802.3at) | ||||
| Power consumption: Max 13W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (L x W x H) | 354 x 105 x 98mm (13.9“ x 4.1“ x 3.9”) | ||||
| Weight | 1.93kg(4.25lb) | ||||
| Working Environment | -40℃~60℃(-40°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) | ||||
| Surge protection | 6KV | ||||
| Reset button | Support | ||||
| Heater | Support | ||||
