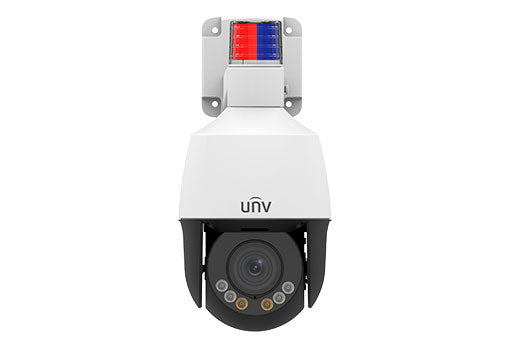

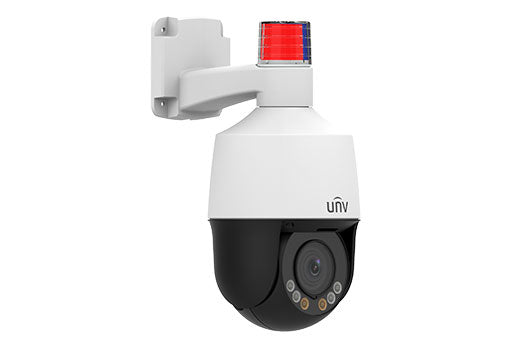

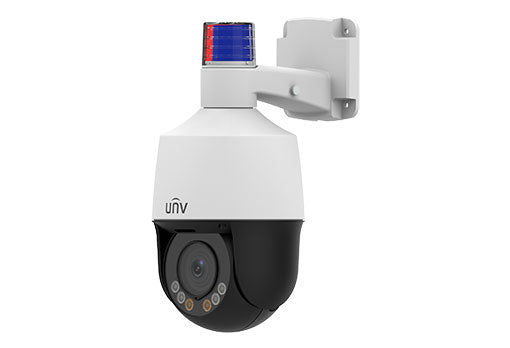

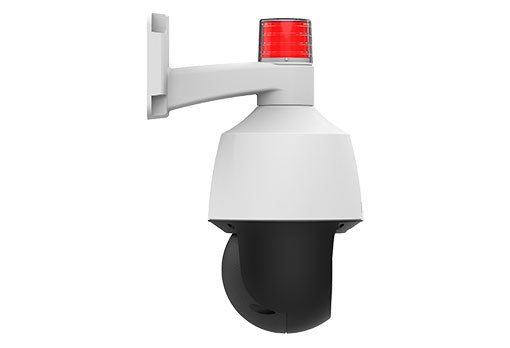

Uniview 2MP LightHunter Active Deterrence PTZ Camera - IPC6312LFW-AX4C-VG
Uniview 2MP LightHunter Active Deterrence PTZ Camera - IPC6312LFW-AX4C-VG
Couldn't load pickup availability
The Uniview 2MP LightHunter Active Deterrence PTZ Camera is a top-of-the-line surveillance solution. With advanced PTZ functionality, your viewing capabilities are limitless, and the Active Deterrence feature ensures added security. With 2MP resolution and LightHunter technology, this camera provides crystal clear images in low light conditions.
Features
• High quality image with 2MP, 1/2.7"CMOS sensor
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in Mic & Speaker
• Smart IR, Up to 50 m (164 ft) IR distance and 10m (33 ft) warm light distance
• Micro SD, up to 256GB
• IP66 protection
• DC12V or PoE (IEEE 802.3af) power supply
Specifications
| Camera | |||||
| Sensor | 1/2.7" progressive scan, 2.0 megapixel, CMOS | ||||
| Min. Illumination | Colour: 0.002Lux (F1.6, AGC ON) 0Lux with IR on |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens type | 2.8~12mm，AF automatic focusing and motorized zoom lens | ||||
| Optical Zoom | 4 | ||||
| Iris | Fixed; F1.6 | ||||
| Field of View (H) | 105.2° ~ 29.32° | ||||
| Field of View (V) | 52.6° ~ 16.38° | ||||
| Field of View (D) | 108.7° ~ 33.3° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8mm | 43.4 (142.4ft) | 17.4 (57.1ft) | 8.7 (28.5ft) | 4.3 (14.1ft) | |
| 12mm | 186.2 (610.9ft) | 74.5 (244.4ft) | 37.2 (122.1ft) | 18.6 (61.0ft) | |
| Illuminator | |||||
| IR Range | Up to 50m (164ft) | ||||
| Warm Light Range | Up to 10m (33ft) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | ||||
| ROI | Support | ||||
| Video Stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Intelligent | |||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| People Counting | Support people flow counting and crowd density monitoring | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | ||||
| Auto Tracking | Support | ||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 kHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | EZStation EZLive EZView |
||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Pan & Tilt | |||||
| Pan Range | 0° ~ 345° | ||||
| Pan Speed | 0.1°/s ~ 50°/s | ||||
| Preset speed: 50°/s | |||||
| Tilt Range | -10° ~ 110° | ||||
| Tilt Speed | 0.1°/s ~ 40°/s | ||||
| Preset speed: 40°/s | |||||
| Number of Presets | 256 | ||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
| Patrol Stay Time | 120s~1800s | ||||
| Home Position | Support | ||||
| Interface | |||||
| Built-in Mic | Support | ||||
| Built-in Speaker | Support | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Alarm Light | Support | ||||
| Certification | |||||
| EMC | CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | ||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
| General | |||||
| Power | DC12V(±25%), PoE (IEEE 802.3af) | ||||
| Power consumption: MAX 15W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Φ133mm*269mm (Φ5.2”x 10.6”) | ||||
| Weight | 0.87 kg (1.92lb) | ||||
| Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) | ||||
| Storage Environment | -40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing) | ||||
| Surge Protection | 2KV | ||||
| Reset Button | Support | ||||
