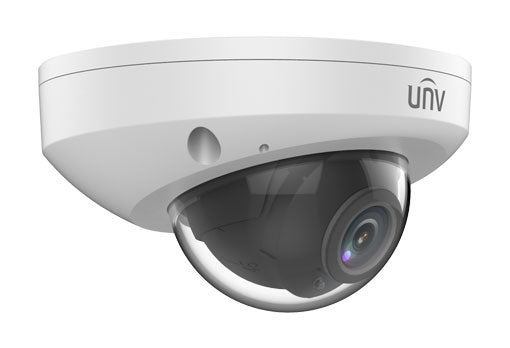

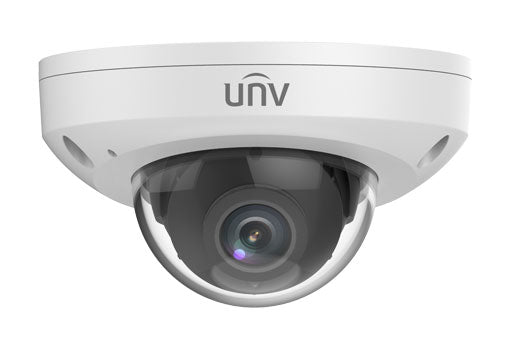

Uniview 2MP HD Intelligent LightHunter IR Fixed Mini Dome Camera - IPC312SB-ADF28K-I0
Uniview 2MP HD Intelligent LightHunter IR Fixed Mini Dome Camera - IPC312SB-ADF28K-I0
Couldn't load pickup availability
The Uniview 2MP HD Intelligent LightHunter IR Fixed Mini Dome Camera - IPC312SB-ADF28K-I0 is a high-quality security camera designed to provide superior surveillance in various lighting conditions. With intelligent LightHunter technology and powerful IR capabilities, this camera captures clear and detailed footage day and night. Its compact and durable design makes it a reliable choice for any security setup.
Features
• High quality imaging with 2MP, 1/2.8"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non motor vehicle
• Intelligent
• Intelligent People Flow Counting and Crowd Density Monitoring
• LightHunter technology ensures ultra high image quality in low illumination environment
• 120dB true WDR technology enables clear imaging in strong light scene
• Support 9:16 Corridor Mode
• Built in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
Specifications
| Camera | Description |
| Resolution | 2MP |
| Sensor | 1/2.8''CMOS |
| Min. Illumination | Colour: 0.001 lux (F1.6, AGC ON) 0 lux with IR on |
| Day/Night | IR‑cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 3° ~ 90°, Tilt: 0° ~ 68°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | Description |
| Lens type | 2.8mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 106.7° |
| Field of View (V) | 57.1° |
| Field of View (D) | 115.7° |
| Zoom | Fixed |
| DORI | Description |
| DORI Distance（Lens） | 2.8mm |
| DORI Distance（Detect） | 43.4m(142.39ft) |
| DORI Distance（Observe） | 17.4m(57.09ft) |
| DORI Distance（Recognize） | 8.7m(28.54ft) |
| DORI Distance（Identify） | 4.3m(14.11ft) |
| Illuminator | Description |
| Illumination Distance(IR) | 30m |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| Image | Description |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | Description |
| Smart intrusion prevention | Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection |
| Recognition | |
| Statistical Analysis | People counting; support people flow counting and crowd density monitoring |
| Events | Description |
| Basic Detection | Motion detection; Ultra motion detection; Tampering alarm; Audio detection |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| Audio | Description |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | Description |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR; NAS(NFS) |
| Network | Description |
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M); API; SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client | EZStation; EZView; EZLive |
| Web Browser | Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | Description |
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p‑p]; 1 Output: impedance 600Ω; amplitude 2V [p‑p] |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base‑TX Ethernet |
| Video Output | N/A |
| Certification | Description |
| EMC | CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368‑1) CB (IEC 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) |
| Environment | CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
| General | Description |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 6.0W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Φ110 x 61mm (Ø4.3” x 2.4”) |
| Weight | 0.37kg (0.82lb) |
| Material | Metal |
| Working Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Surge protection | 4KV |
| Reset button | N/A |
| Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
