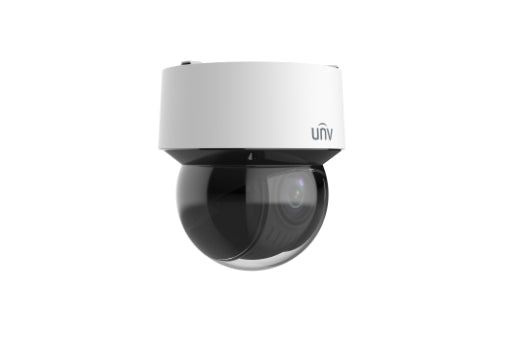

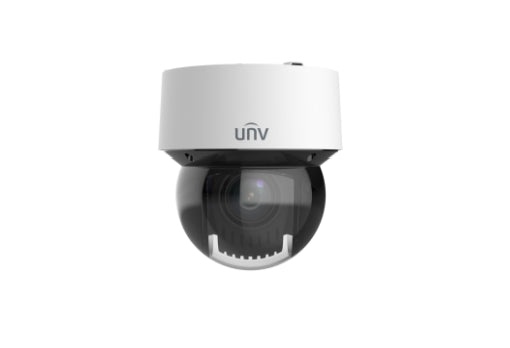

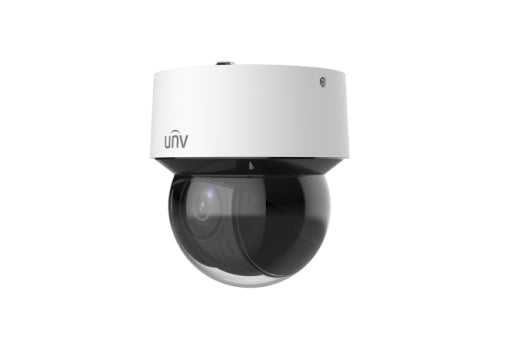

Uniview 2MP 16X LightHunter Network PTZ Dome Camera Datasheet - IPC6432LR-X16-VG1
Uniview 2MP 16X LightHunter Network PTZ Dome Camera Datasheet - IPC6432LR-X16-VG1
Regular price
$1,009.00 USD
Regular price
Sale price
$1,009.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Become an expert with the Uniview 2MP 16X LightHunter Network PTZ Dome Camera Datasheet - IPC6432LR-X16-VG1. With 16X optical zoom and LightHunter technology, capture clear and detailed images even in low-light conditions. Perfect for surveillance and security purposes.
Features
- High quality image with 2MP, 1/2.8" CMOS sensor
- 1920*1080 @ 60fps in the main stream
- Supports Ultra 265, H.265, H.264, MJPEG compression
- Dual streams for versatile streaming options
- 16X optical zoom for detailed imaging
- LightHunter technology ensures ultra-high image quality in low light environments
- Smart IR with up to 100m (328ft) IR distance
- Power options: DC12V ±10% or PoE+ (IEEE 802.3at)
- Alarm: 2 inputs and 1 output, Audio: 1 input and 1 output
- IP66 ingress protection for weather resistance
- IK10 vandal-resistant rating for enhanced durability
Specifications
| Camera | Description |
| Resolution | 2MP |
| Sensor | 1/2.8''CMOS |
| Min. Illumination | Colour: 0.003 Lux (F1.78, AGC ON) 0 Lux with IR |
| Day/Night | IR‑cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | Description |
| Lens type | 5.5~88mm |
| Optical Zoom | 16X |
| Iris | F1.78‑F3.73 |
| Field of View (H) | 52.46°~3.67° |
| Field of View (V) | 30.98°~2.07° |
| Field of View (D) | 64.53°~4.33° |
| DORI | Description |
| DORI Distance（Detect） | 88.0m~1412.7m(288.7ft~4634.8ft) |
| DORI Distance（Observe） | 35.2m~565.1m(115.5ft~1853.9ft) |
| DORI Distance（Recognize） | 17.6m~282.5m(57.7ft~927.0ft) |
| DORI Distance（Identify） | 8.8m~141.3m(28.9ft~463.5ft) |
| Illuminator | Description |
| Illumination Distance(IR) | Up to 100m (328 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| Video stream | Dual streams |
| Frame Rate | Main Stream: 2MP(1920*1080),Max 60fps Sub Stream: 720P(1280*720), Max 60fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Image | Description |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | Description |
| Smart intrusion prevention | Support false alarm filtering: Cross line detection, Intrusion detection |
| Auto-Tracking | Support, target filtering: vehicle, humanbody |
| Events | Description |
| Basic Detection | Motion detection; Tampering alarm; Audio detection |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; Alarm input |
| Audio | Description |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | Description |
| Edge Storage | Micro SD，up to 256 GB |
| Network Storage | ANR; NAS(NFS) |
| Network | Description |
| Protocols | IPv4; IPv6; IGMP; RTP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; QoS; SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client | EZStation; EZLive; EZView |
| Web Browser | Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan/Tilt | Description |
| Pan Range | 360°(endless) |
| Pan Speed | 0.1°/s~240°/s |
| Tilt Range | –5°~90°(auto flip) |
| Tilt Speed | 0.1°/s~120°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Home Position | Support |
| Interface | Description |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1*RS485 |
| Network | 1*RJ45 10M/100M Base‑TX Ethernet |
| Certification | Description |
| EMC | CE‑EMC (EN 55032: 2015+A11:2020+A1：2020,EN IEC 61000‑3‑2: 2019+A1: 2021,EN 61000‑3‑3: 2013+A1: 2019+A2:2021,EN 50130‑4: 2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4‑2014) |
| Safety | CE LVD (EN 62368‑1:2014+A11:2017) UL (UL 62368‑1, 2nd Ed., Issue Date: 2014‑12‑01) |
| Environment | CE‑RoHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | Description |
| Power | DC12V(±10%,3A), PoE+(IEEE 802.3at) |
| Power Consumption | Max 23W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Ø 167 x 181mm(Ø 6.6” x 7.1”) |
| Weight | 2.3Kg(5.07lb) |
| Working Environment | ‑40℃~65℃ (‑40°F~149°F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment | ‑40℃~70℃ (‑40°F~158°F), Humidity: ≤95% RH (non‑condensing) |
| Surge protection | 6KV |
| Reset button | Support |
