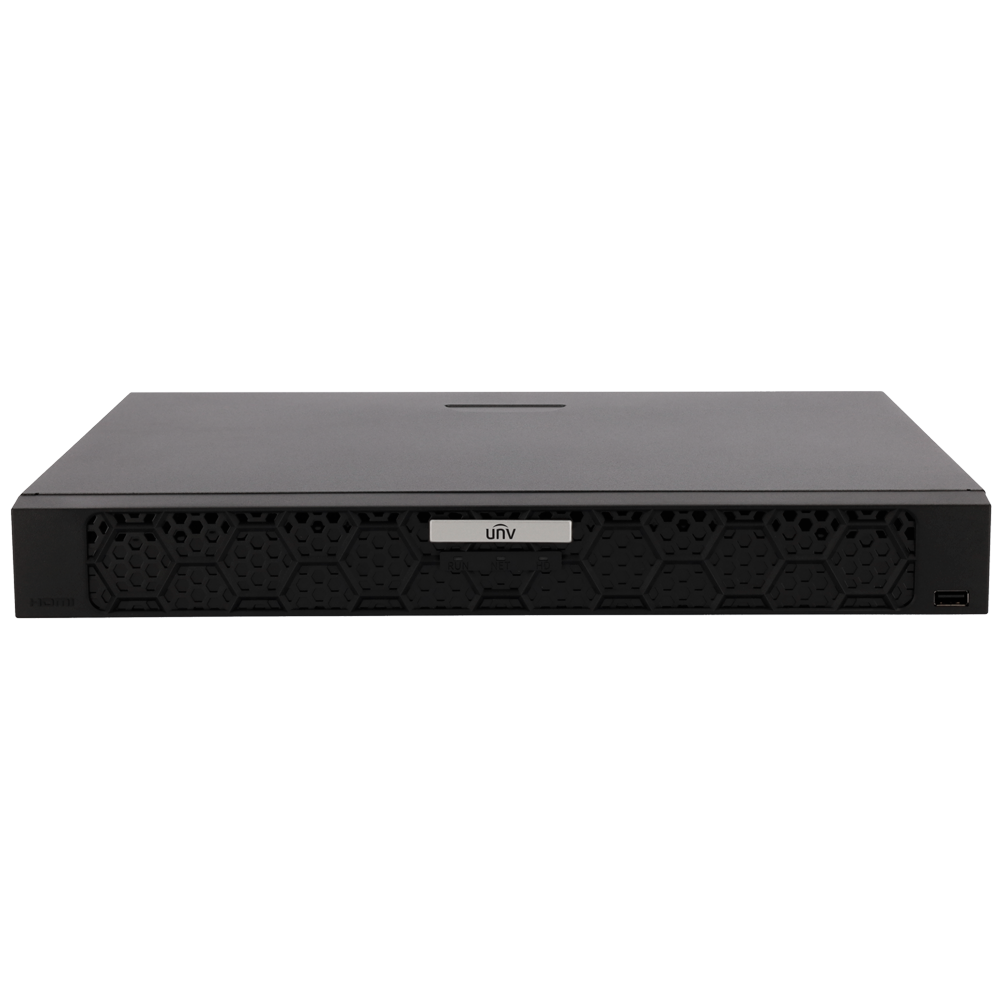

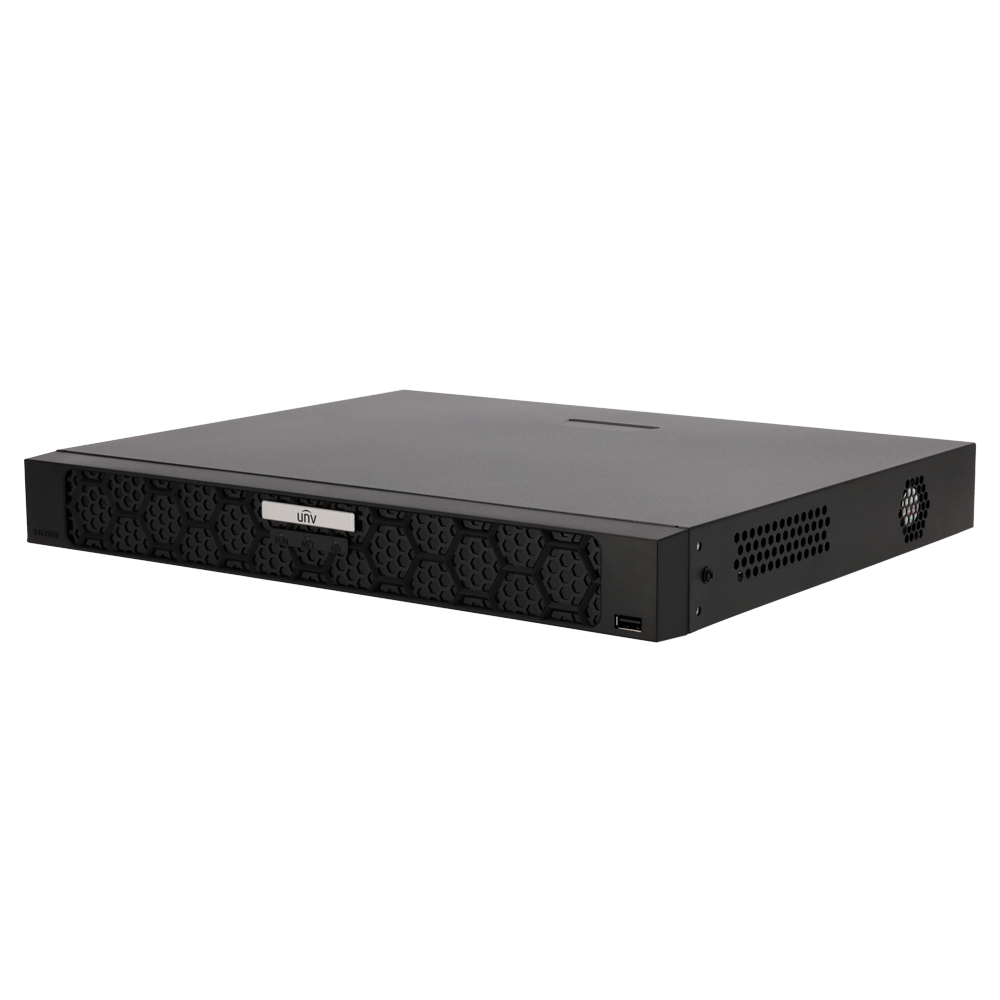

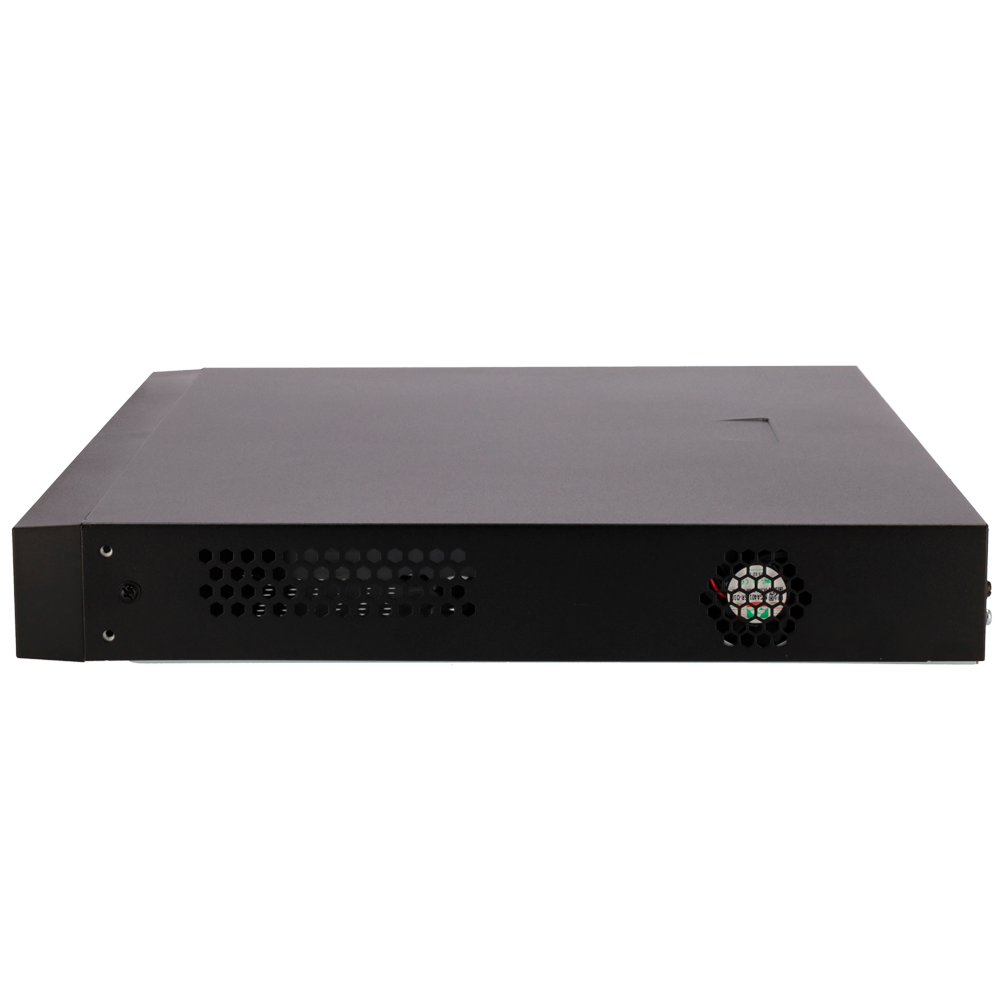

Uniview 16 Channel NVR - NVR502-32B-P16
Uniview 16 Channel NVR - NVR502-32B-P16
Regular price
$1,169.00 USD
Regular price
Sale price
$1,169.00 USD
Unit price
/
per
The Uniview 16 Channel NVR - NVR502-32B-P16 is a cutting-edge network video recorder that offers advanced functionality and high-quality surveillance for your security needs. With 16 channels and support for up to 32 IP cameras, this NVR provides reliable and efficient performance. Stay informed and secure with the Uniview NVR.
Features
- Uniview
- NVR for IP cameras
- Prime range
- 32 CH
- Supported bandwidth 320 Mbps AI off
- Maximum resolution 16Megapíxel
- Compression Ultra265/H.265/H.264
- Alarms
- Smart Features
- Compatible with LPR cameras
- Facial Recognition
- ANR Technology
- Outputs 4K HDMI & VGA
- Mouse
- Space for 2HDD up to 16TB
- RAID support
- 16 PoE ports IEEE802.3af/at
- WEB, CMS, Smartphone and NVR interface
- ONVIF and RTSP support
Specifications
Brand | Uniview |
Range | Prime |
Inputs for IP cameras | LAN port up to 32 channels |
Power over Ethernet | 16 port PoE Switch IEEE802.3af/at (max. 130 W) |
IP compatible cameras | UNIVIEW, ONVIF |
Bidirectional audio | 1 input / 1 RCA output |
Video outputs | 1 HDMI 4K, 1 VGA |
Display resolution | HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Video compression format | Ultra H.265 / H.265 / H.264 |
Incoming bandwidth | With smart functions off: 320Mbps With smart functions on: 160Mbps |
Outgoing bandwidth | 160Mbps |
Main Stream recording | 16MP / 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
Recording method | Manual, programmed, motion detection |
Intelligent functions per IP camera | YESP (Smart Intrusion Prevention): Detection of human/vehicle and two-wheeled vehicles on Line Crossing, Area Intrusion, Area Entry and Area Exit. UMD (Ultra Motion Detection): Advanced motion detection based on human and vehicle classification. Temperature detection: Fire detection, smoke detection, temperature measurement, cigarette smoke detection. People count: People capacity and people counting within an area Other functions: Video metadata and traffic monitoring with LPR cameras. |
Intelligent functions for the NVR | SIP: Up to 4CH UMD: Up to 8CH |
Facial recognition | Up to 1CH 16 lists of face images up to 50.000 images in total |
VCA Search | Vehicle search, non-motorized vehicles, people counting reports, heat mapping, etc |
Lists of vehicles | Up to 5 lists with up to 25.000 images in total |
POS Function | Supported |
General alarms | Detection of blur, scene change, abandoned object, removed object, autotracking, tampering, video loss, alarm or audio input |
Alarms | 8 inputs / 2 relay |
ANR function | SI |
External Backup | USB / HDD USB memory |
Internal memory | 2 SATA HDD 3.5" of up to 16 TB (not included) RAID support |
Communication | Front panel: 1 x USB 2.0 Rear panel: 1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/100/1000M(Ethernet) |
Power supply | AC 100-240V Energy consumption: ≤ 12W (no HDD) |
Dimensions / Weight | 380 (W) × 322 (D) × 53 (H) / 2.7 Kg |
