TriStar Security Products

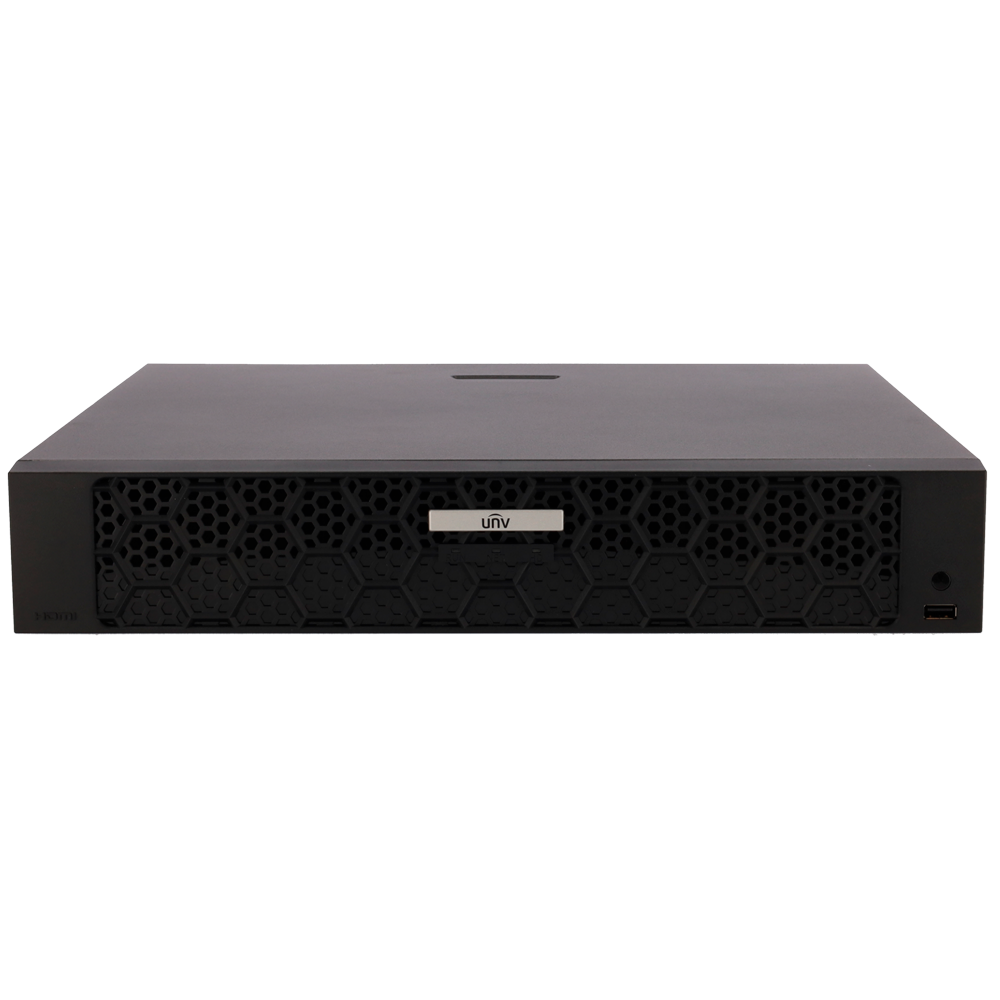

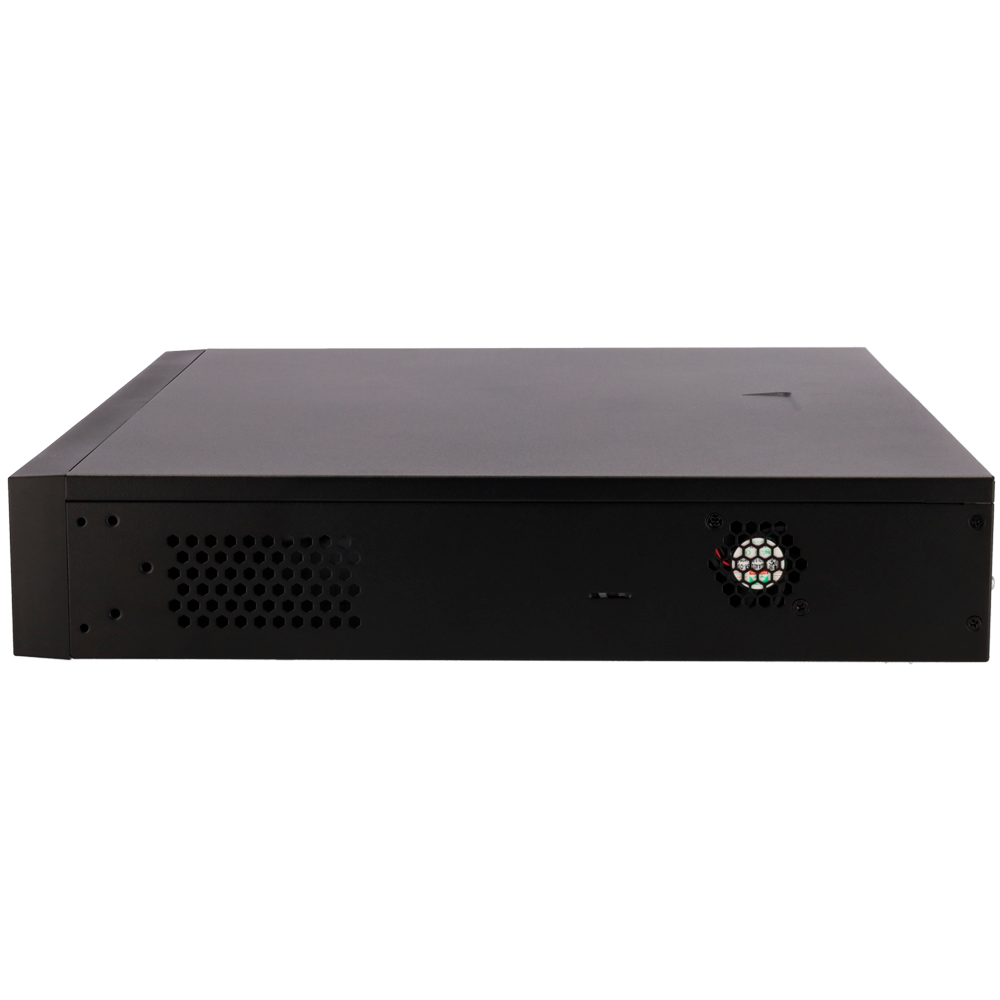

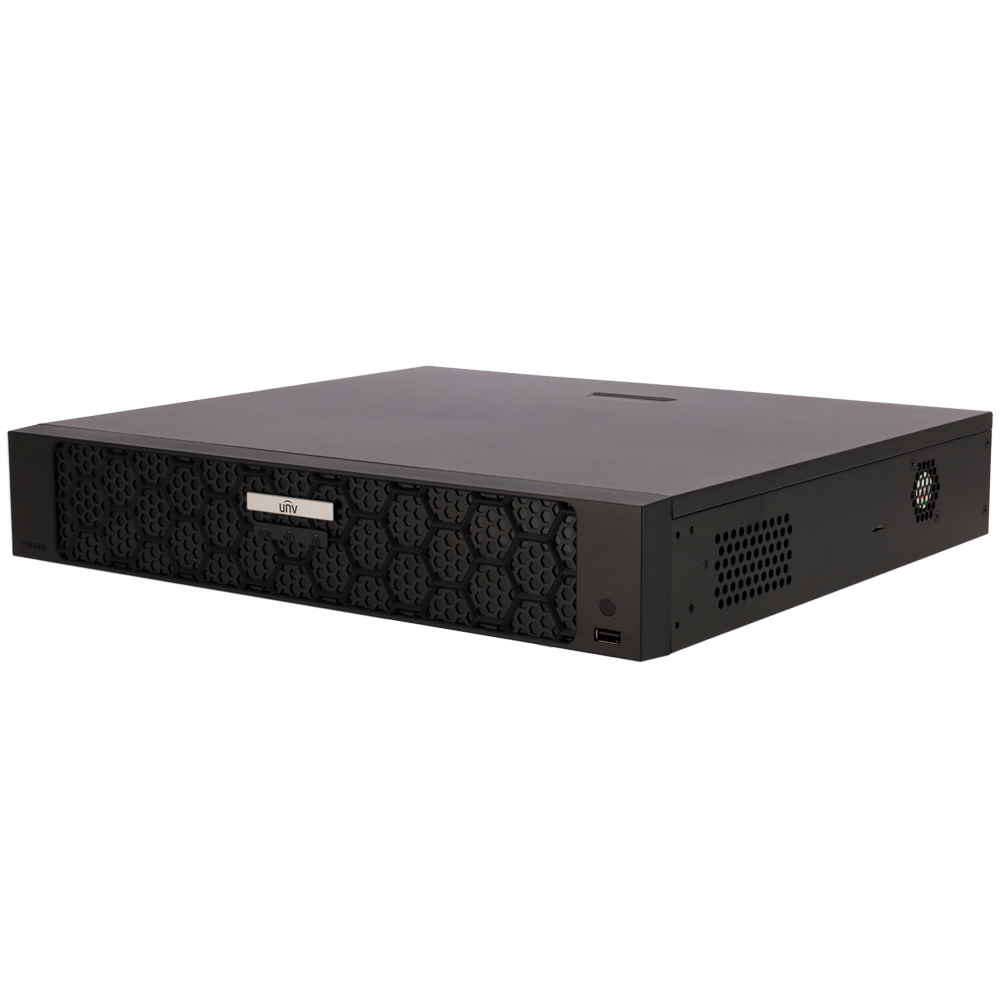

Uniview 16 Channel NVR 4 SATA Interface - NVR504-16B-P16-IQ
Uniview 16 Channel NVR 4 SATA Interface - NVR504-16B-P16-IQ
Regular price
$1,689.00 USD
Regular price
Sale price
$1,689.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Upgrade your surveillance system with the Uniview 16 Channel NVR, equipped with 4 SATA interfaces for increased storage and the NVR504-16B-P16-IQ feature for improved image quality. Enjoy reliable and efficient monitoring with this industry-leading product.
Features
- Uniview
- NVR for IP cameras
- Prime range
- 16 CH
- Supported bandwidth 320 Mbps AI off
- Maximum resolution 16Megapíxel
- Compression Ultra265/H.265/H.264
- Alarms
- Smart Features
- Compatible with LPR cameras
- Facial Recognition
- ANR Technology
- Outputs 4K HDMI & VGA
- Mouse
- Space for 4HDD up to 16TB
- RAID support
- 16 PoE ports IEEE802.3af/at
- WEB, CMS, Smartphone and NVR interface
- ONVIF and RTSP support
Specifications
| Brand | Uniview |
| Range | Prime |
| Inputs for IP cameras | LAN port up to 16 channels |
| Power over Ethernet | 16 port PoE Switch IEEE802.3af/at (max. 130 W) |
| IP compatible cameras | UNIVIEW, ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Display resolution | HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Incoming bandwidth | With smart functions off: 320Mbps With smart functions on: 160Mbps |
| Outgoing bandwidth | 160Mbps |
| Main Stream recording | 16MP / 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF |
| Recording method | Manual, programmed, motion detection |
| Intelligent functions per IP camera | YESP (Smart Intrusion Prevention): Detection of human/vehicle and two-wheeled vehicles on Line Crossing, Area Intrusion, Area Entry and Area Exit. UMD (Ultra Motion Detection): Advanced motion detection based on human and vehicle classification. Temperature detection: Fire detection, smoke detection, temperature measurement, cigarette smoke detection. People count: People capacity and people counting within an area Other functions: Video metadata and traffic monitoring with LPR cameras. |
| Intelligent functions for the NVR | SIP: Up to 4CH UMD: Up to 8CH |
| Facial recognition | Up to 1CH 16 lists of face images up to 50.000 images in total |
| VCA Search | Vehicle search, non-motorized vehicles, people counting reports, heat mapping, etc |
| Lists of vehicles | Up to 5 lists with up to 25.000 images in total |
| POS Function | Supported |
| General alarms | Detection of blur, scene change, abandoned object, removed object, autotracking, tampering, video loss, alarm or audio input |
| Alarms | 8 inputs / 2 relay |
| ANR function | SI |
| External Backup | USB / HDD USB memory |
| Internal memory | 4 SATA HDD 3.5" of up to 16 TB (not included) RAID support |
| Communication | Front panel: 1 x USB 2.0 Rear panel: 1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/100/1000M(Ethernet) |
| Power supply | AC 100-240V Energy consumption: ≤ 12W (no HDD) |
| Dimensions / Weight | 400 (W) × 368 (D) × 74 (H) / 4 Kg |
