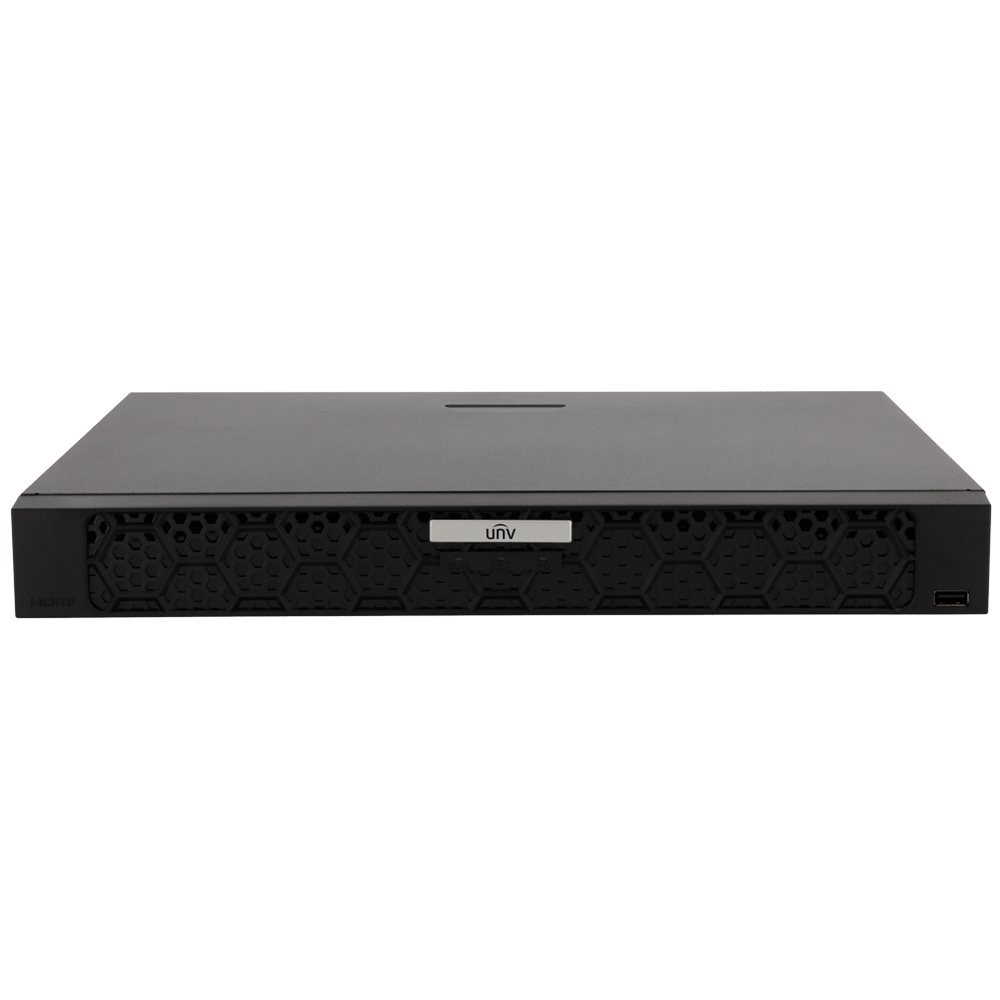

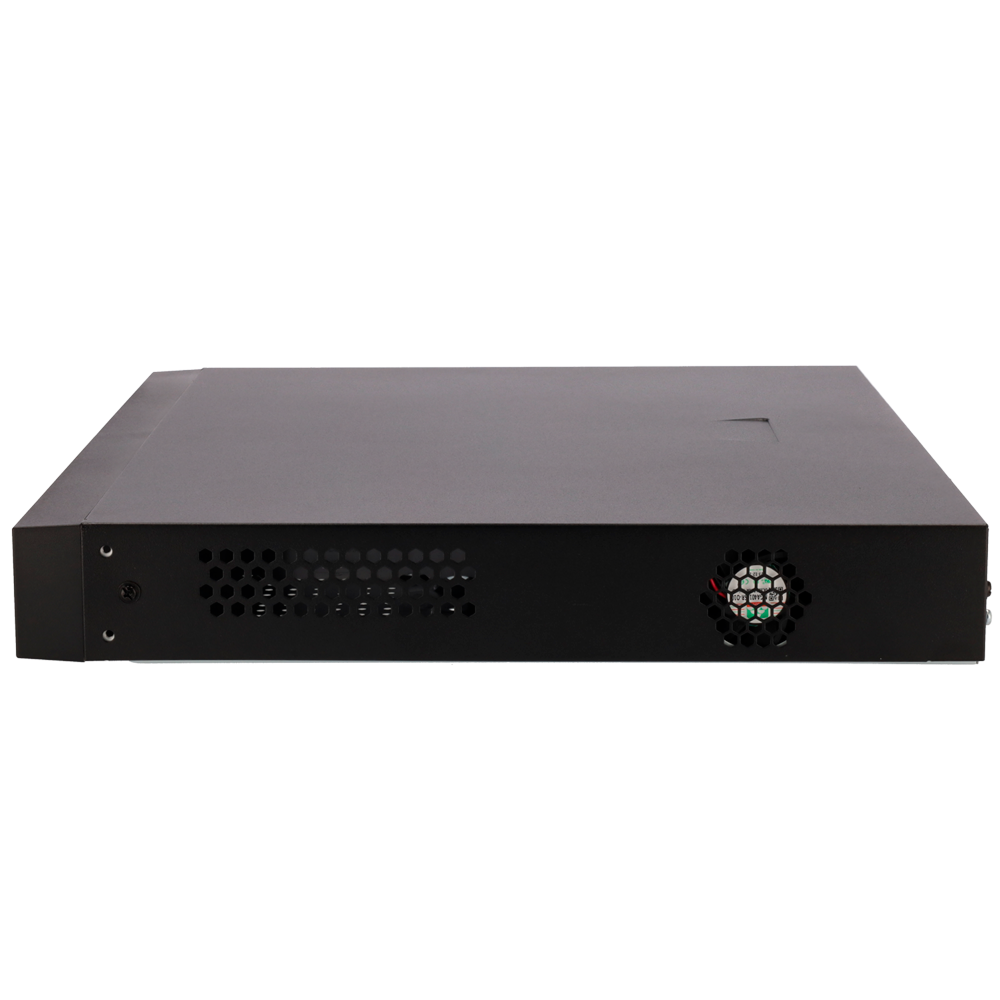

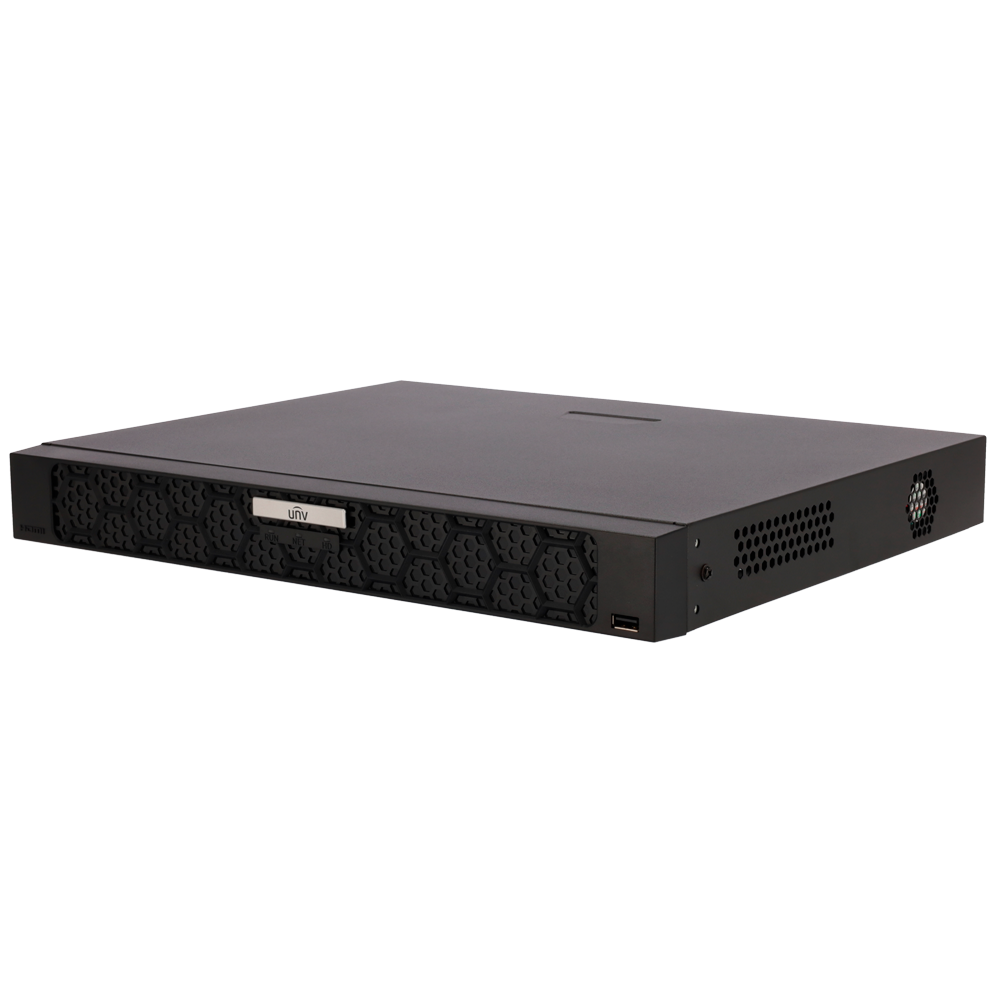

Uniview 16 Channel NVR 2 SATA Interface - NVR502-16B-P16-IQ

Uniview 16 Channel NVR 2 SATA Interface - NVR502-16B-P16-IQ

Regular price $1,289.00 USD
Regular price Sale price $1,289.00 USD
Sale Sold out
Shipping calculated at checkout.

Enhance your surveillance system with the Uniview 16 Channel NVR. Featuring a 2 SATA interface and NVR502-16B-P16-IQ, this NVR allows for seamless storage and playback of your security footage. Upgrade your security today and have peace of mind.

Features

  • Uniview
  • NVR for IP cameras
  • Prime range
  • 16 CH
  • Supported bandwidth 320 Mbps AI off
  • Maximum resolution 16Megapíxel
  • Compression Ultra265/H.265/H.264
  • Alarms
  • Smart Features
  • Compatible with LPR cameras
  • Facial Recognition
  • ANR Technology
  • Outputs 4K HDMI & VGA
  • Mouse
  • Space for 2HDD up to 16TB
  • RAID support
  • 16 PoE ports IEEE802.3af/at
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF and RTSP support


Specifications

Brand Uniview
Range Prime
Inputs for IP cameras 16 channels
Power over Ethernet 16 port PoE Switch IEEE802.3af/at (max. 130 W)
IP compatible cameras UNIVIEW, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 1 HDMI 4K, 1 VGA
Display resolution HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video compression format Ultra H.265 / H.265 / H.264
Incoming bandwidth With smart functions off: 320Mbps
With smart functions on: 160Mbps
Outgoing bandwidth 160Mbps
Main Stream recording 16MP / 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF
Recording method Manual, programmed, motion detection
Intelligent functions per IP camera YESP (Smart Intrusion Prevention): Detection of human/vehicle and two-wheeled vehicles on Line Crossing, Area Intrusion, Area Entry and Area Exit.

UMD (Ultra Motion Detection): Advanced motion detection based on human and vehicle classification.

Temperature detection: Fire detection, smoke detection, temperature measurement, cigarette smoke detection.

People count: People capacity and people counting within an area

Other functions: Video metadata and traffic monitoring with LPR cameras.
Intelligent functions for the NVR SIP: Up to 4CH
UMD: Up to 8CH
Facial recognition Up to 1CH
16 lists of face images up to 50.000 images in total
VCA Search Vehicle search, non-motorized vehicles, people counting reports, heat mapping, etc
Lists of vehicles Up to 5 lists with up to 25.000 images in total
POS Function Supported
General alarms Detection of blur, scene change, abandoned object, removed object, autotracking, tampering, video loss, alarm or audio input
Alarms 8 inputs / 2 relay
ANR function SI
External Backup USB / HDD USB memory
Internal memory 2 SATA HDD 3.5" of up to 16 TB (not included)
RAID support
Communication Front panel: 1 x USB 2.0
Rear panel: 1 x USB 3.0 / 1 x USB 2.0 / 1 x RJ45 10/100/1000M(Ethernet)
Power supply AC 100-240V
Energy consumption: ≤ 12W (no HDD)
Dimensions / Weight 380 (W) × 315 (D) × 53 (H) / 2 Kg
