Hanwha Wisenet NOA-E1PW4 – Accessory

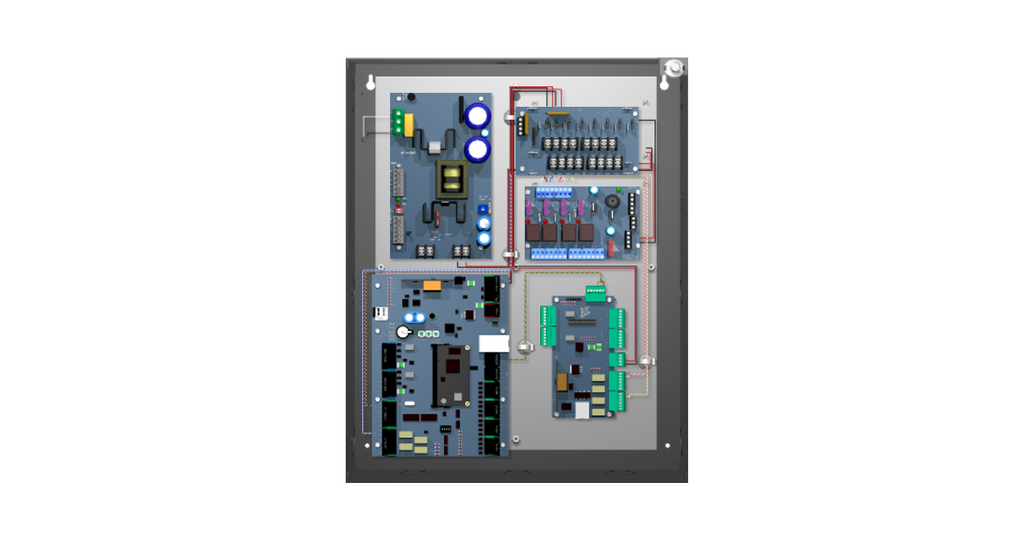

Access and Power Integration Solution, 4-door kit, Prewired for 1(2-Door Intelligent Controller (IC2) and 1 (Downstream Reader Interface Panel (RI2MS)), includes eFlow6NB power supply/charger (6A @ 12/24VDC, PDS8CB 8-output power distribution module (2.5A max per output, PTC protected), VR6 voltage regulator (5-12VDC), and ACM4CB 4-relay access control module (2.5A max per output, PTC protected). Dual-voltage outputs for controllers and locking devices, factory-installed wire management and harness assemblies with terminal blocks, 16 AWG galvanized steel backplane, convenient knockout configuration (1 × 1.5" conduit, 9 × double knockouts for 3/4" & 1"), supervision for AC fail, battery fail/presence, and FACP accommodates up to two 12VDC/7AH batteries, UL294, cUL s319-05, CE compliant, lifetime warranty on Altronix power supply/chargers and sub-assemblies, dimensions: 18.0" × 14.5" × 4.625" (457.2 × 368.3 × 117.5 mm). **NOP Series controllers/panels are not included.** Pre-Wired Compatibility with (1) NOP-IC2 & (1) NOP-RI2MS

The Hanwha Wisenet NOA-E1PW4 is a professional-grade accessory from Hanwha Vision, sold by TriStar Security Products — an authorized Hanwha dealer. All units are new, genuine, and warranty-backed.

Specifications

Is the NOA-E1PW4 genuine Hanwha Wisenet? Yes — supplied new and warranty-backed by authorized dealer TriStar Security Products.
