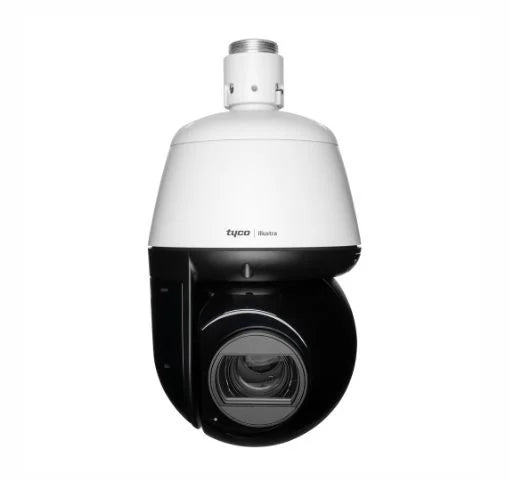

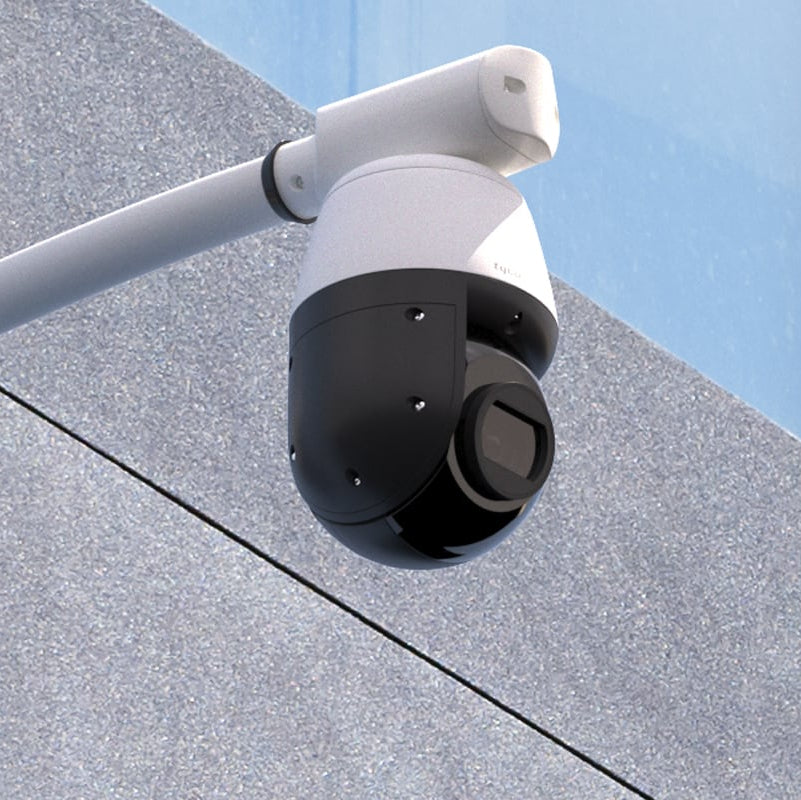

American Dynamics IPS08-P25-OI04 8 Megapixel IR Outdoor PTZ Camera, 22X Lens
American Dynamics IPS08-P25-OI04 8 Megapixel IR Outdoor PTZ Camera, 22X Lens
The IPS08-P25-OI04 from American Dynamics is a 8 Megapixel IR Outdoor PTZ Camera, 22X Lens.
Maintain Control and Detail with a Responsive, Accurate PTZ
The exceptional speed and silence of the Illustra Pro PTZ coupled with ultra-low latency performance gives security personnel the ability to accurately track subjects in mission critical applications. The camera employs zoom-adjusted program technology to automatically control the pan and tilt speed in proportion to the amount of zoom used, delivering precise pan and tilt control. Using programmed presets and tours, the Illustra Pro PTZ moves into position at up to 700° per second.
Safeguard Against Cyber Attacks Across Devices
Illustra Pro Cameras have been designed to be resilient against cyber-threats. Our products are gated, analysed, tested and required to meet or exceed the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program for every consecutive release. This holistic approach is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments.
Achieve Clarity Despite Challenging Scene and Lighting Conditions
The Illustra Pro Gen 4 PTZ is designed to provide a suite of benefits to enable operators to benefit from better situational awareness and to respond more quickly to potential threats or situations. Leveraging the latest chip technology, the camera has inbuilt Automated Intelligent (AI) analytics such as person and object identification which also can be used for automated tracking.
Features
- AI Object classification combined with event rules to pinpoint forensic searches or trigger events
- Large zoom capacity to identify important features at a greater distance
- Rain dispersion for a clear image
- Auto-tracking based upon face or person detection
- Image stabilisation for clarity of image at large zoom setting
- True Day/Night and an IR distance up to 200M
- Encrypted, end to end, video streaming for protection of video
Specifications
Attribute | Details |
---|---|
SKU | IPS08-P25-OI04 |
Features | Audio, Auto Gain Control, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range, 4K Resolution |
Manufacturer | American Dynamics |
Camera Signal | Network IP |
Infrared Distance | 101 Feet + |
Resolution | 8 Megapixel |
Lens Type | Motorized Zoom |
Lens Size | 22X |
Mount Type | Ceiling, Wall |
Compression Method | H.264, M-JPEG, H.265 |
Durability | Vandal Resistant, Weather Resistant |
Voltage | 22-30vAC |
Dimensions (W x H) | Ø8.03 x 13.74 in (Ø204 x 349 mm) |
Electronic Shutter | ≥ 1/10,000 to 1/4 sec |
Image Device | CMOS 1/1.8” |
IR Wavelength | 850 nm |
Minimum Scene Illumination | Color: 0.06 lux, B/W: 0.015 lux |
Operating Humidity | Up to 95% RH Non-Condensing |
Operating Temperature | -58°F to +140°F (-50°C to +65°C) |
Power Consumption | 802.3bt Type 4 (90W) |
Privacy Zones | 8 |
Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, SNMP, UPNP™, RTSP, LLDP |
Video Output | RJ45 |
Weatherproof Rating | IP66 |
Digital Noise Reduction | 2D and 3D |
Angle of View | Wide Angle: 61.9°/36.2°, Telephoto: 3.4°/1.7° |
IR Distance | 150m/492ft |
Audio | Yes |
Auto Gain Control | Yes |
Day/Night Functionality | Yes |
Digital Noise Reduction | Yes (2D and 3D) |
Motion Detection Tracking | Yes |
Privacy Masking | Yes |
Wide Dynamic Range | Yes |
ONVIF | Yes |
Digital Zoom | Yes |
