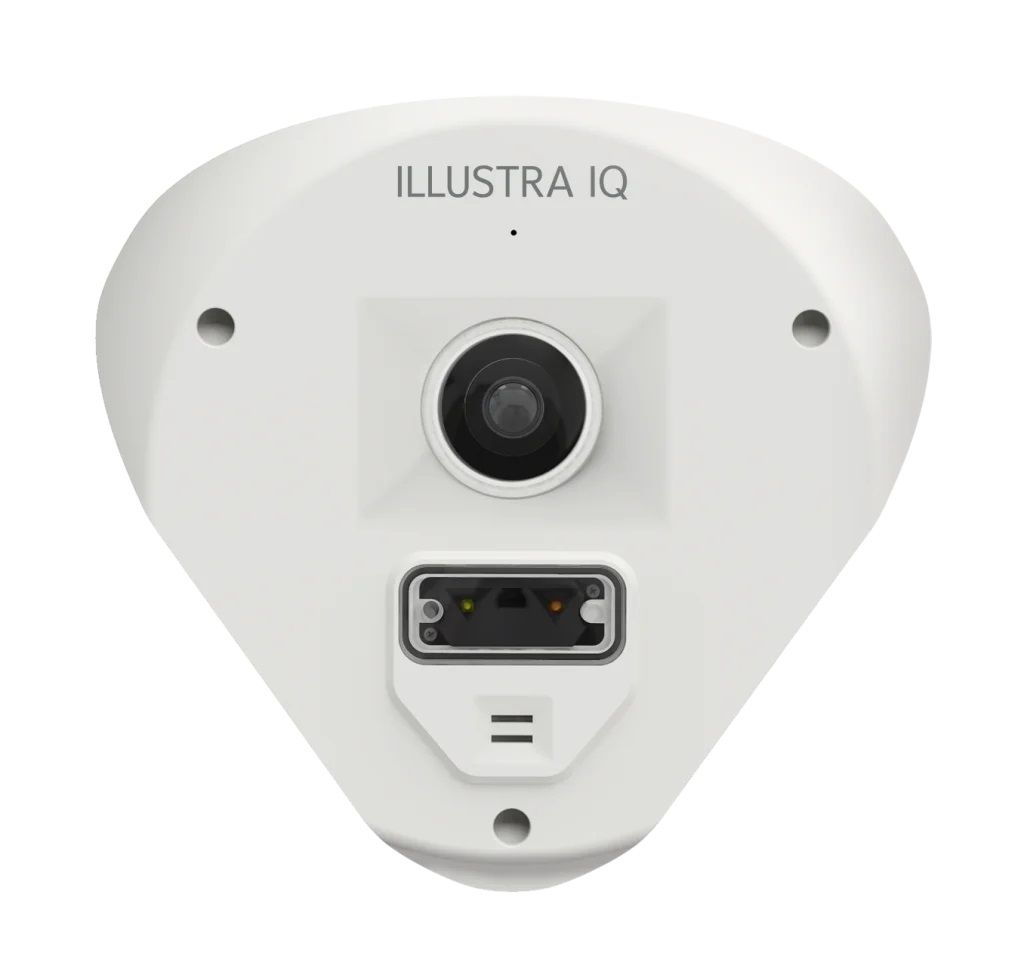

American Dynamics IPS05-R10-OIA4 5 Megapixel Network Outdoor Corner/Wedge Camera with 2.3mm Lens
American Dynamics IPS05-R10-OIA4 5 Megapixel Network Outdoor Corner/Wedge Camera with 2.3mm Lens
Regular price
$1,380.00 USD
Regular price
Sale price
$1,380.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
4 Cameras in One
Four individually repositionable sensors with motorized varifocal lenses in a single camera.
High-Quality Images
Available in 20MP and 32MP resolution plus superior WDR, defog and integrated 30m infrared vision.
Designed for Easy Install
Built-in hinge holds camera during install process.
Edge Analytics
Deep learning AI built into each of the four sensors for independent object classification, rules and alerts.
Cost Effective
1 camera license and 1 network cable for connectivity to the video management system (VMS).
Cyber Secure
NDAA compliant, exceeds JCI security requirements.
Specifications
| Attribute | Details |
|---|---|
| SKU | IPS05-R10-OIA4 |
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | American Dynamics |
| NDAA | Compliant |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.3mm |
| Mount Type | Corner |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 208.3 x 200.9 x 57 mm (8.2 x 7.9 x 2.2 in) |
| Electronic Shutter | 1/32,000 sec ~ 1/4 sec |
| Image Device | Sony 1/2.8” progressive scan ultra-lowlight CMOS sensor |
| IR Wavelength | 940 nm |
| Minimum Scene Illumination | Color: 0.17 lux, B/W: 0.06 lux, 0 lux when IR on |
| Operating Temperature | 65°C (165°F) |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, QoS, SIP |
| Weatherproof Rating | IP68 |
| Digital Noise Reduction | 2D/3D |
| IR Distance | 940 nm invisible IR, effective in 10x10 m (33x33 ft) space |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night Functionality | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
Product Highlights
- NDAA compliant, exceeds JCI security requirements
- 1 camera license and 1 network cable for connectivity to the video management system (VMS)
- Built-in hinge holds camera during install process
- Four individually repositionable sensors with motorized varifocal lenses in a single camera
- Deep learning AI built into each of the four sensors for independent object classification, rules and alerts
