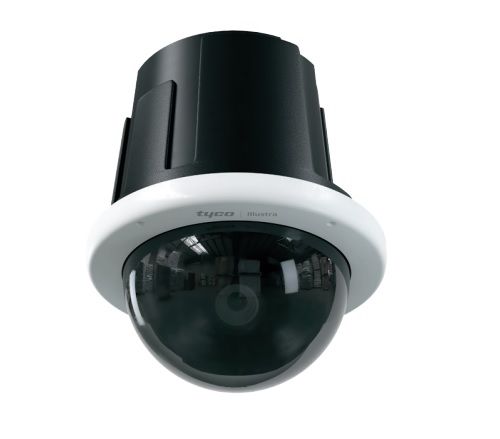

American Dynamics IPS02-P07-RT04 2 Megapixel Indoor PTZ Camera, 30X Lens

American Dynamics IPS02-P07-RT04 2 Megapixel Indoor PTZ Camera, 30X Lens

Regular price $4,180.00 USD
Regular price Sale price $4,180.00 USD
Sale Sold out
Shipping calculated at checkout.

The IPS02-P07-RT04 from American Dynamics is a 2 Megapixel Indoor PTZ Camera, 30X Lens.
Maintain Control and Detail with a Responsive, Accurate PTZ
The exceptional speed and silence of the Illustra Pro PTZ coupled with ultra-low latency performance gives security personnel the ability to accurately track subjects in mission critical applications. The camera employs zoom-adjusted program technology to automatically control the pan and tilt speed in proportion to the amount of zoom used, delivering precise pan and tilt control. Using programmed presets and tours, the Illustra Pro PTZ moves into position at up to 700° per second.
Safeguard Against Cyber Attacks Across Devices
Illustra Pro Cameras have been designed to be resilient against cyber-threats. Our products are gated, analysed, tested and required to meet or exceed the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program for every consecutive release. This holistic approach is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments.
Situational Awareness with AI and Analytics
Building intelligence in to the camera, such as Object Classification can reduce the burden on the operators to review, or view live, vast amounts of video footage. The rule based AI can be used to effectively reduce the amount of video presented to an operator so they can concentrate on the important and critical situations.
Achieve Clarity Despite Challenging Scene and Lighting Conditions
With up to a 30X zoom capability, True Day/Night and WDR functionality, the illustra Pro 4 PTZ can be deployed in a variety of situations where light or distance can be a challenge, such as inside warehouses, department stores and shopping malls.

Features

  • Object classification combined with event rules to pinpoint forensic searches or trigger events
  • Large zoom capacity to identify important features at a greater distance
  • Auto-tracking based upon face or person detection
  • True WDR and Day/Night function for 24/7 use and deployment in variable lighting conditions
  • Advanced analytics on-board, such as Object Removed, Queue Formation, Loitering and more
  • Fast and accurate reaction to events with a Pant/Tilt Speed of up to 700°/sec and a preset accuracy of <0.1°

Specifications

SKU IPS02-P07-RT04
Features Audio, Auto Gain Control, Day/Night, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer American Dynamics
Camera Signal Network IP
Infrared Distance Non Infrared
Resolution 2 Megapixel
Lens Type Motorized Zoom
Lens Size 30X
Mount Type Ceiling, Wall
Compression Method H.264, M-JPEG, H.265
Durability Indoor, Vandal Resistant, Weather Resistant
Voltage 22-30vAC
Dimensions (W x H) Ø204 x 349 mm (Ø8.03 x 13.74 in)
Electronic Shutter ≥ 1/10,000 to 1/4 s
Image Device CMOS 1/2.18”
Minimum Scene Illumination Color: 0.013 lux, BW: 0.0035 lux
Operating Humidity Up to 95% RH Non-Condensing
Operating Temperature -14°F to 140°F (-10°C to 60°C)
Power Consumption 802.3at PoE+ Type 2 (30W)
Privacy Zone 8
Protocols TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, SNMP, UPNP™, RTSP, LLDP
Video Output RJ45
Weatherproof IP66, IP47
Angle of View Wide Angle: 60°/37°, Telephoto: 5°/3°
Motion Detection Tracking 8
Audio Yes
Auto Gain Control Yes
Day/Night Yes
Digital Zoom Yes
Privacy Masking Yes
Wide Dynamic Range Yes
ONVIF Yes



Product Highlights
    • Object classification combined with event rules to pinpoint forensic searches or trigger events
    • Large zoom capacity to identify important features at a greater distance
    • Auto-tracking based upon face or person detection
    • True WDR and Day/Night function for 24/7 use and deployment in variable lighting conditions
    • Advanced analytics on-board, such as Object Removed, Queue Formation, Loitering and more
