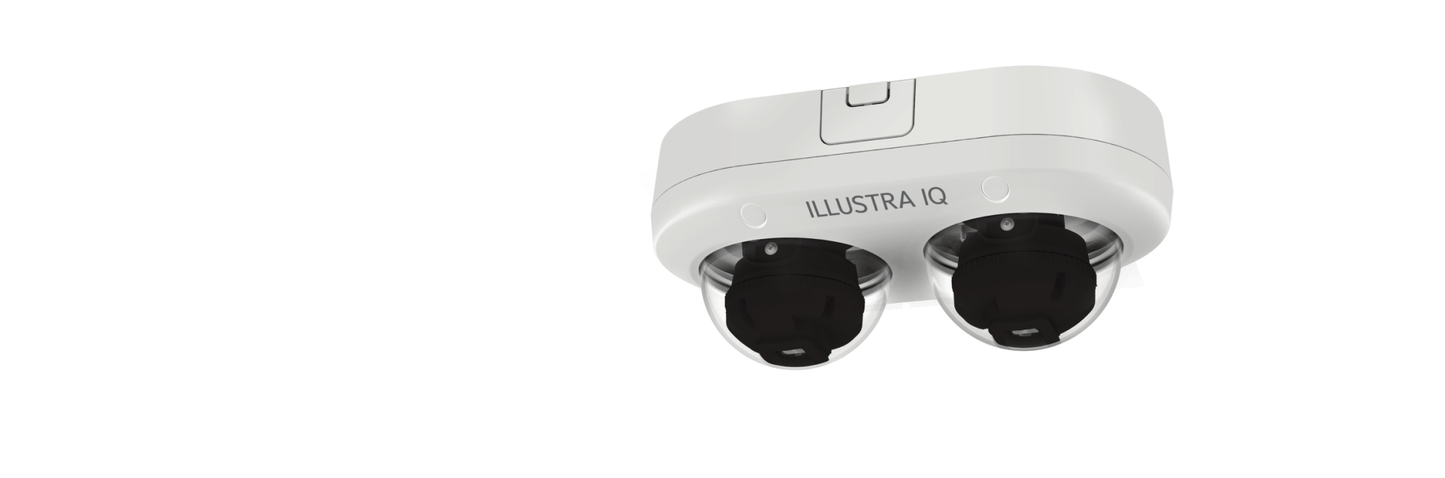

American Dynamics IFS10-M10-OTA4 10 Megapixel Network Outdoor Dome Camera with 3.42-6.85mm Lens
American Dynamics IFS10-M10-OTA4 10 Megapixel Network Outdoor Dome Camera with 3.42-6.85mm Lens
Regular price
$1,400.00 USD
Regular price
Sale price
$1,400.00 USD
Unit price
/
per
Improved Situational Awareness
Available in 10MP and 16MP resolution plus superior WDR, defog and individually controllable IR per sensor.
Cost-Effective
Wider field of view and lower cost of ownership with dual-head sensors, one power cable, and one VMS license.
Designed for Easy Install
Camera simply clicks onto mounting plate featuring clips for internal connections and a single driver for all screws.
Edge Intelligence
Dedicated AI analytics built into each sensor enable independent object classification, rules and alerts with no restriction on captured data types.
Corridor Mode
Optimized aspect ratio to get less wall and more hall regardless of deployment.
Cyber Secure
NDAA compliant, encrypted data, and conforms to rigorous JCI cyber security regime.
Specifications
Attribute | Details |
---|---|
SKU | IFS10-M10-OTA4 |
Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
Manufacturer | American Dynamics |
NDAA Compliant | Yes |
Camera Signal | Network IP |
Connection Type | Wired |
Infrared Distance | 101 Feet + |
Resolution | 10 Megapixel |
Lens Type | Varifocal |
Lens Size | 3.42-6.85mm |
Mount Type | Ceiling, Wall |
Compression Method | H.264, M-JPEG, H.265 |
Durability | Vandal Resistant, Weather Resistant |
Voltage | 24vAC, PoE |
Dimensions (W x H) | 220mm x 123mm x 93.8mm (8.66in x 4.84in x 3.69in) |
Electronic Shutter | Automatic, Manual (1/4 to 1/32000 sec) |
Image Device | Sony 1/2.8” Progressive Scan CMOS imager |
IR Wavelength | 850 nm |
Minimum Scene Illumination | Color: 0.13 lux, B/W: 0.04 lux, IR on: 0 lux |
Operating Humidity | Up to 95% RH, Non-Condensing |
Operating Temperature | -40°C (-40°F) to +60°C (140°F) |
Start-up Temperature | -40°C (-40°F) |
Privacy Zone | 20 user-definable rectangular zones (10 per sensor) |
Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
Weatherproof | IP66/IP67 |
Angle of View | H: 99.7° - 45.5°, V: 68.1° - 32.7° |
Motion Detection Tracking | 6 zones supported (3 zones per sensor) |
IR Distance | 35m/114ft |
Audio | Yes |
Auto Gain Control | Yes |
Day/Night | Yes |
Automatic White Balance | Yes |
Flickerless | Yes |
Motion Detection Tracking | Yes |
Privacy Masking | Yes |
Wide Dynamic Range | Yes |
Mirror | Yes |
ONVIF | Yes |
Product Highlights
- Available in 10MP and 16MP resolution plus superior WDR, defog and individually controllable IR per sensor
- Wider field of view and lower cost of ownership with dual-head sensors, one power cable, and one VMS license
- Camera simply clicks onto mounting plate featuring clips for internal connections and a single driver for all screws
- Dedicated AI analytics built into each sensor enable independent object classification, rules and alerts with no restriction on captured data types
- Optimized aspect ratio to get less wall and more hall regardless of deployment
