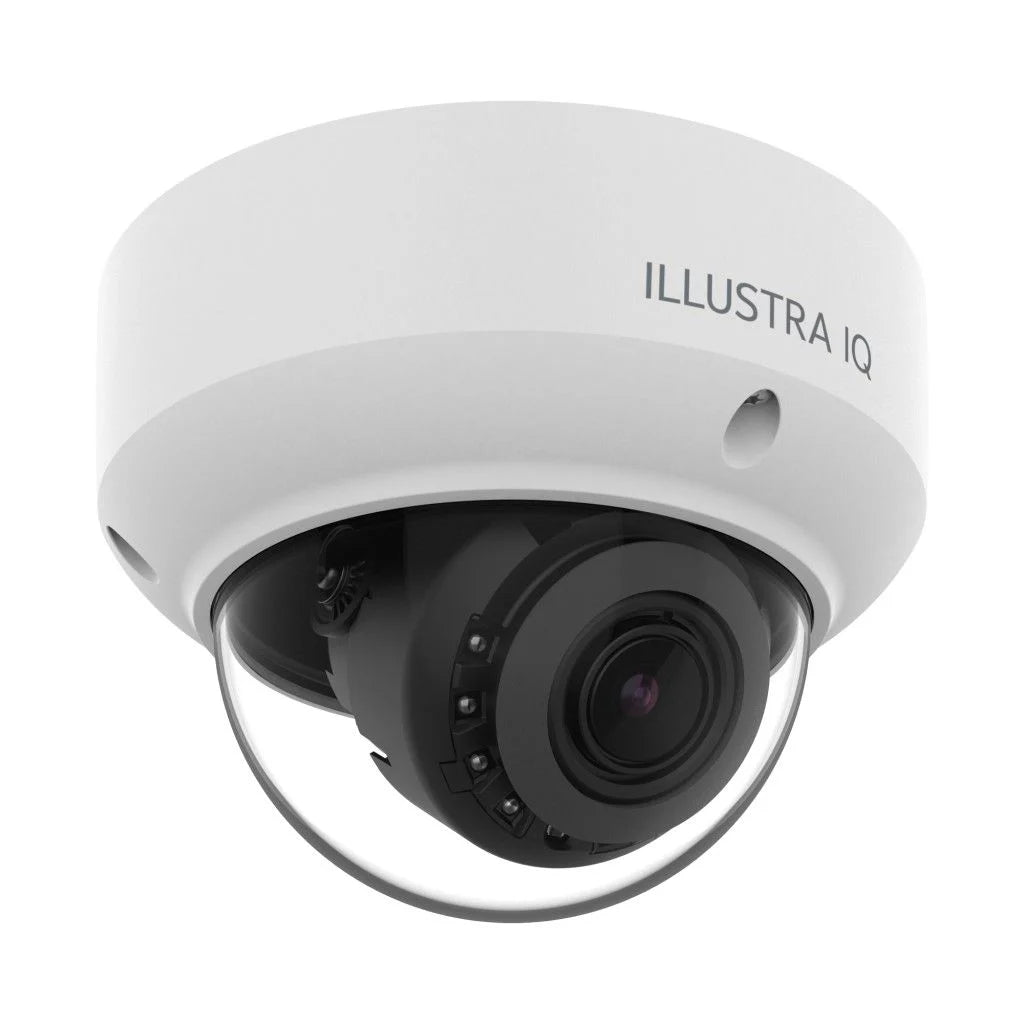

American Dynamics IFS08-D13-OIB4 Illustra Flex Gen4 8 Megapixel/4K Minidome Camera with 3.6-11mm Lens
American Dynamics IFS08-D13-OIB4 Illustra Flex Gen4 8 Megapixel/4K Minidome Camera with 3.6-11mm Lens
Discover the future of technology with our cutting-edge deep learning AI solution, designed to deliver unparalleled image enhancements in the most challenging conditions. Our smart system optimizes bandwidth for seamless performance while ensuring low power consumption, making it an eco-friendly choice for any setting. Engineered to withstand all weather conditions and compatible with an open standard interface, it integrates effortlessly into your existing setup. Our advanced security features offer comprehensive data protection, giving you peace of mind. Plus, with a 5-year warranty, our solution is not just an investment in superior technology but in reliability and trust. Experience the perfect blend of innovation, efficiency, and security, all in one robust package.
Features
- Flex AI suite enabled & calibrated out of the box
- Outstanding imaging in low-light conditions
- High-end image stabilization using Gyro sensor
- Smart & Adaptive IR up to 50 m (164 ft)Corridor and dual HD streaming mode
- IP66, IP67, NEMA 4x, IK10 certified
- Onvif Profile S, G, T, M conformant
- Power failover support
- Conforms to JCI cyber norms
Specifications
Attribute | Details |
---|---|
SKU | IFS08-D13-OIB4 |
Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range, 4K Resolution |
Manufacturer | American Dynamics |
NDAA Compliance | Yes |
Camera Signal | Network IP |
Connection Type | Wired |
Resolution | 8 Megapixel |
Lens Type | Varifocal |
Lens Size | 3.6-11mm |
Mount Type | Ceiling, Wall |
Compression Method | H.264, M-JPEG, H.265 |
Durability | Vandal Resistant, Weather Resistant |
Voltage | 24vAC, PoE |
Automatic Gain Control (AGC) | Auto, Max, Manual |
Dimensions (W x H) | Ø145 x 106.5 mm (Ø5.71 x 4.19 in) (without mount plate), Ø145.3 x 113.5 mm (Ø5.72 x 4.47 in) (with mount plate) |
Electronic Shutter | Automatic, Manual (1/4 to 1/32000 sec) |
Image Device | Sony 1/1.8” Progressive Scan CMOS imager |
IR Wavelength | 850 nm |
Minimum Scene Illumination | Color: 0.1 lux, B/W: 0.01 lux |
Operating Humidity | Up to 95% RH, Non-Condensing |
Operating Temperature | -50°C (-58°F) to +60°C (140°F) (IR off at +50°C/122°F) |
Privacy Zone | 10 user definable rectangular zones |
Weatherproof | IP66, IP67 |
Angle of View | H: 112.1°(W) – 47.5°(T), V: 58.0°(W) – 26.6°(T) |
Motion Detection Tracking | 3 zones supported |
IR Distance | 50m/164ft |
Audio | Yes |
Auto Gain Control | Yes |
Day/Night | Yes |
Automatic White Balance | Yes |
Flickerless | Yes |
Motion Detection Tracking | Yes |
Privacy Masking | Yes |
Wide Dynamic Range | Yes |
Mirror | Yes |
ONVIF | Yes |
- Flex AI suite enabled & calibrated out of the box
- Outstanding imaging in low-light conditions
- High-end image stabilization using Gyro sensor
- Smart & Adaptive IR up to 50 m (164 ft)Corridor and dual HD streaming mode
- IP66, IP67, NEMA 4x, IK10 certified
