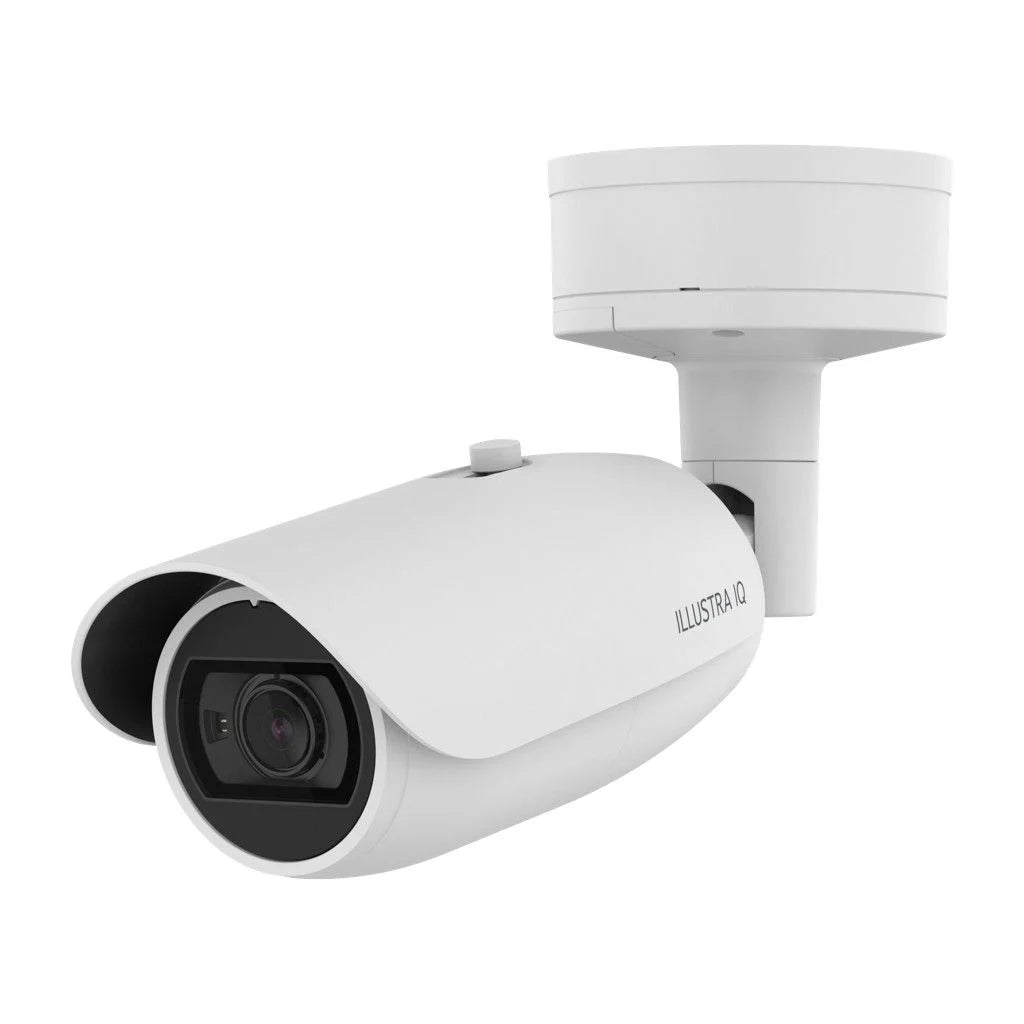

American Dynamics IFS05-B31-OIB4 Illustra Flex Gen4 5 Megapixel Tele Bullet Camera with 5-50mm Lens
American Dynamics IFS05-B31-OIB4 Illustra Flex Gen4 5 Megapixel Tele Bullet Camera with 5-50mm Lens
The Flex Gen4 Long Range Bullet Camera delivers exceptional performance for critical applications. Featuring the latest system-on-chip (SoC) technology, it provides outstanding low-light images, HDR, and advanced security features. Dual Full HD video streaming ensures comprehensive coverage and detailed monitoring.Utilizing industry-leading AI edge intelligence, this camera offers accurate object detection in all lighting conditions, minimizing false alarms. Its deep learning AI includes extensive object classifications for precise alerts.Security is paramount with secure boot, signed firmware, and encrypted streaming/storage, complying with stringent cyber security standards. ONVIF conformance ensures seamless integration into existing VMS platforUpgrade your surveillance system with the Flex Gen4 Long Range Bullet Camera for unparalleled performance, reliability, and security.
Features
- Deep learning AI for accurate object detection in live & recorded video
- P-iris lens (5-50mm) for capturing long distance clear and crisp images in all lighting conditions
- Image stabilization using gyro sensorLow power camera design
- Adaptive/Smart IR covers area up to 70m (239 ft) even in zero lux condition
- Dual-power failover for mission critical 24×7 operation
- Secure boot, signed firmware and encrypted video streaming & storage
Specifications
Attribute | Details |
---|---|
SKU | IFS05-B31-OIB4 |
Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
Manufacturer | American Dynamics |
NDAA Compliant | Yes |
Camera Signal | Network IP |
Connection Type | Wired |
Infrared Distance | 101+ Feet |
Resolution | 5 Megapixel |
Lens Type | Fixed |
Lens Size | 5-50mm |
Mount Type | Ceiling, Wall |
Compression Method | H.264, M-JPEG, H.265 |
Durability | Vandal Resistant, Weather Resistant |
Voltage | 24vAC, PoE |
Automatic Gain Control (AGC) | Auto, Max, Manual |
Dimensions (W x H) | Ø91 (Camera) x 352.5 (L) mm with back box (without sunshield), Backbox is Ø120 mm |
Electronic Shutter | Automatic, Manual (1/4 to 1/32000 sec) |
Image Device | Sony 1/2.8” Progressive Scan CMOS imager |
IR Wavelength | 850 nm |
Minimum Scene Illumination | Color: 0.1 lux, B/W: 0.01 lux, 0 lux with IR |
Operating Humidity | Humidity up to 95% RH, Non-Condensing |
Operating Temperature | -50°C (-58°F) to +60°C (140°F) |
Privacy Zone | 10 user-definable rectangular zones |
Weatherproof | IP66, IP67 |
Angle of View | H: 50.85°(Wide) - 7.7°(Tele), V: 30.96°(Wide) - 4.84°(Tele) |
Motion Detection Tracking | 3 zones supported |
IR Distance | 70m/229.66ft |
Audio | Yes |
Auto Gain Control | Yes |
Day/Night | Yes |
Automatic White Balance | Yes |
Flickerless | Yes |
Motion Detection Tracking | Yes |
Privacy Masking | Yes |
Wide Dynamic Range | Yes |
Mirror | Yes |
ONVIF | Yes |
- Deep learning AI for accurate object detection in live & recorded video
- P-iris lens (5-50mm) for capturing long distance clear and crisp images in all lighting conditions
- Image stabilization using gyro sensorLow power camera design
- Adaptive/Smart IR covers area up to 70m (239 ft) even in zero lux condition
- Dual-power failover for mission critical 24×7 operation
