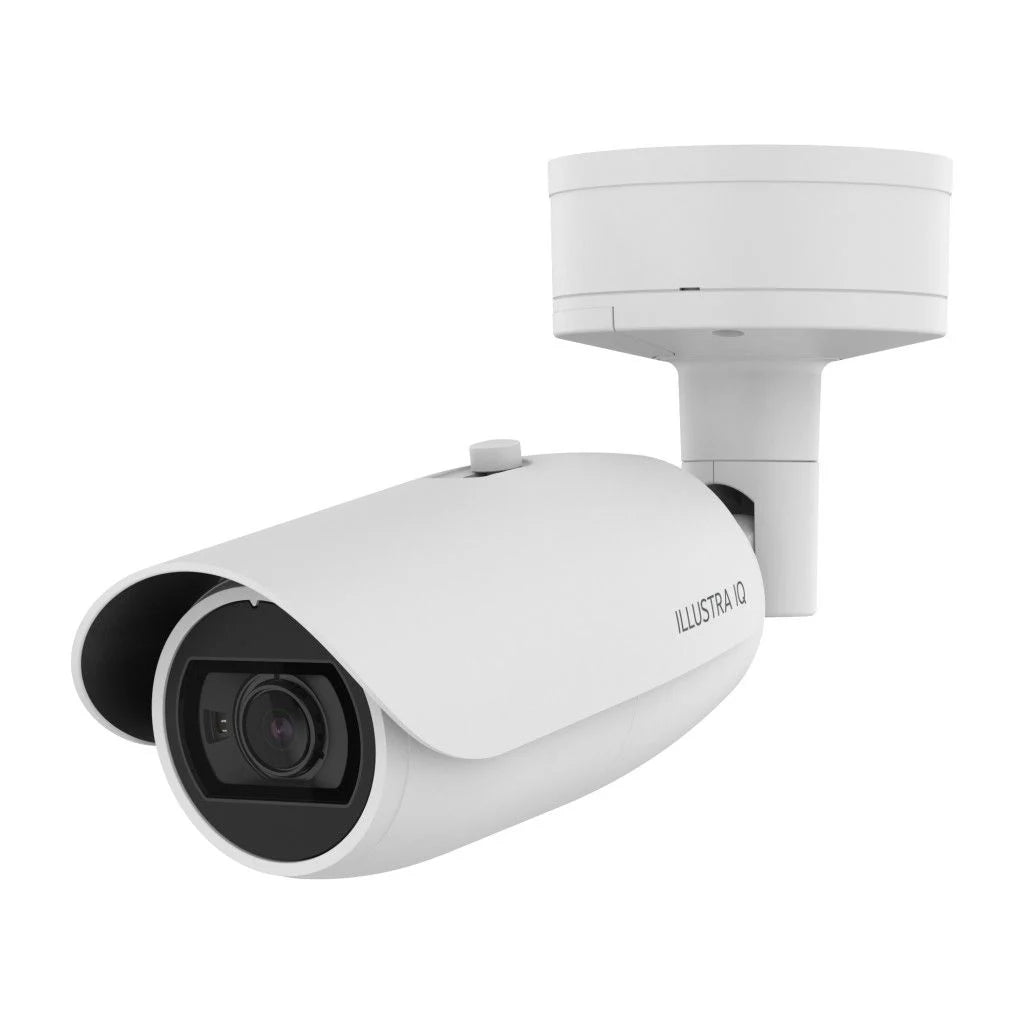

American Dynamics IFS05-B12-OIB4 Illustra Flex Gen4 5 Megapixel Bullet Camera with 2.7-13.5mm Lens
American Dynamics IFS05-B12-OIB4 Illustra Flex Gen4 5 Megapixel Bullet Camera with 2.7-13.5mm Lens
Our cutting-edge camera integrates deep learning AI to redefine surveillance precision, focusing on what matters most in every image, even in the most challenging conditions. Out of the box, the Flex AI suite is calibrated to ensure outstanding imaging, particularly in low light, complemented by high-end image stabilization and intelligent, adaptive IR illumination up to 50 meters (164 ft). Designed for simplicity, it’s easy to install, manage, and use, making it accessible for various applications. This camera is built to endure all weather conditions thanks to its IP66, IP67, NEMA 4x, and IK10 certifications, ensuring reliable operation in any outdoor environment. An open standard interface and Onvif Profile S, G, T, and M conformity facilitate seamless integration. At the same time, low power consumption and advanced security features underscore its efficiency and commitment to data protection. Power failover support and compliance with JCI cyber norms set a new standard for reliability and security. Our camera comes with a comprehensive 5-year warranty, offering peace of mind and demonstrating our confidence in its performance and durability.
Features
- Flex AI suite enabled & calibrated out of the box
- Outstanding imaging in low-light conditions
- High-end image stabilization using Gyro sensor
- Smart & Adaptive IR up to 50 m (164 ft)
- Corridor and dual HD streaming mode
- IP66, IP67, NEMA 4x, IK10 certified
- Onvif Profile S, G, T, M conformant
- Power failover support
- Conforms to JCI cyber norms
Specifications
Attribute | Details |
---|---|
SKU | IFS05-B12-OIB4 |
Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
Manufacturer | American Dynamics |
NDAA Compliant | Yes |
Camera Signal | Network IP |
Connection Type | Wired |
Infrared Distance | 101+ Feet |
Resolution | 5 Megapixel |
Lens Type | Varifocal |
Lens Size | 2.7-13.5mm |
Mount Type | Ceiling, Wall |
Compression Method | H.264, M-JPEG, H.265 |
Durability | Vandal Resistant, Weather Resistant |
Voltage | 24vAC, PoE |
Automatic Gain Control (AGC) | Auto, Max, Manual |
Dimensions (W x H) | Ø91 (Camera) x 352.5 (L) mm with back box (without sunshield), Backbox: Ø120 mm |
Electronic Shutter | Automatic, Manual (1/4 to 1/32000 sec) |
Image Device | Sony 1/2.8” Progressive Scan CMOS imager |
IR Wavelength | 850 nm |
Minimum Scene Illumination | Color: 0.1 lux, B/W: 0.01 lux, 0 lux with IR |
Operating Humidity | Up to 95% RH, Non-Condensing |
Operating Temperature | -50°C (-58°F) to +60°C (140°F) (IR off at +50°C/122°F) |
Privacy Zone | 10 user-definable rectangular zones |
Weatherproof | IP66, IP67 |
Angle of View | H: 107.4° (W) – 34.2° (T), V: 56.2° (W) – 19.2° (T) |
Motion Detection Tracking | 3 zones supported |
IR Distance | 50m/164ft |
Audio | Yes |
Auto Gain Control | Yes |
Day/Night | Yes |
Automatic White Balance | Yes |
Flickerless | Yes |
Privacy Masking | Yes |
Wide Dynamic Range | Yes |
Mirror | Yes |
ONVIF | Yes |
