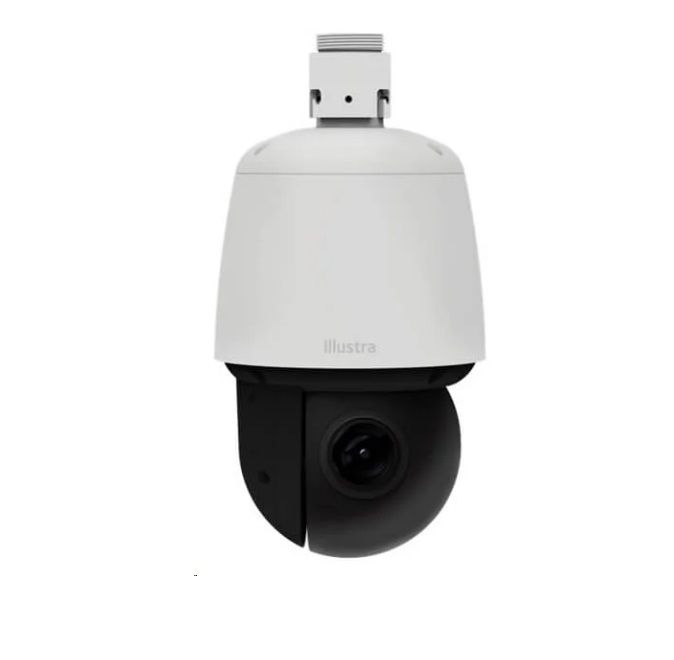

American Dynamics IFS04-P07-IIA4 5 Megapixel Network Indoor PTZ Camera with 30X Lens
American Dynamics IFS04-P07-IIA4 5 Megapixel Network Indoor PTZ Camera with 30X Lens
Regular price
$2,080.00 USD
Regular price
Sale price
$2,080.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Large Field of View with 360° Coverage
Control larger field of view with Pan-Tilt-Zoom. Built in 656ft (200m) IR (outdoor only) provides high quality images for 24x7 operation.
Auto-Tracking Capabilities
Auto-tracking adjusts field of view to follow person through camera range for simplified camera operation.
Encrypted Data Transfer End-to-End
Protection against data misuse with full encryption from camera to recorder/SD card.
Intelligence at the Edge
Reduced false alarms, faster investigations and accurate detection of events with deep learning AI.
Open Standard Support
ONVIF conformance provides open, consistent and reliable standard. Fully interoperable with multiple video management platforms including American Dynamics and Exacq.
Cyber Secure
Meet evolving cyber challenges with resilient and NDAA-compliant camera
Specifications
| Attribute | Details |
|---|---|
| SKU | IFS04-P07-IIA4 |
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | American Dynamics |
| NDAA Compliant | Yes |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101+ Feet |
| Resolution | 5 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor, Vandal Resistant |
| Voltage | 48vDC, 24vAC, PoE |
| Dimensions (W x H) | Ø190 x 336mm (Ø7.48 x 13.23 in), Bubble PTZ: Ø212 x 344mm (Ø8.35 x 13.54 in) |
| Electronic Shutter | Automatic, Manual (1/4 to 1/32000 sec) |
| Image Device | Sony 1/2.8” Progressive Scan CMOS imager |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.06 lux, B/W: 0.02 lux, IR on: 0 lux |
| Operating Humidity | Up to 95% RH, Non-Condensing |
| Operating Temperature | Indoor: -20°C (-4°F) to +60°C (140°F), Start-up temperature: -20°C (-4°F) |
| Privacy Zone | 10 user-definable rectangular zones |
| Angle of View | H: 58.1° - 2.34°, V: 40.5° - 1.48° |
| Motion Detection Tracking | Yes (Single Full Screen Zone) |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
Product Highlights
- Control larger field of view with Pan-Tilt-Zoom.Built in 656ft (200m) IR (outdoor only) provides high quality images for 24x7 operation
- Auto-tracking adjusts field of view to follow person through camera range for simplified camera operation
- Protection against data misuse with full encryption from camera to recorder/SD card
- Meet evolving cyber challenges with resilient and NDAA-compliant camera
- ONVIF conformance provides open, consistent and reliable standard. Fully interoperable with multiple video management platforms including American Dynamics and Exacq
