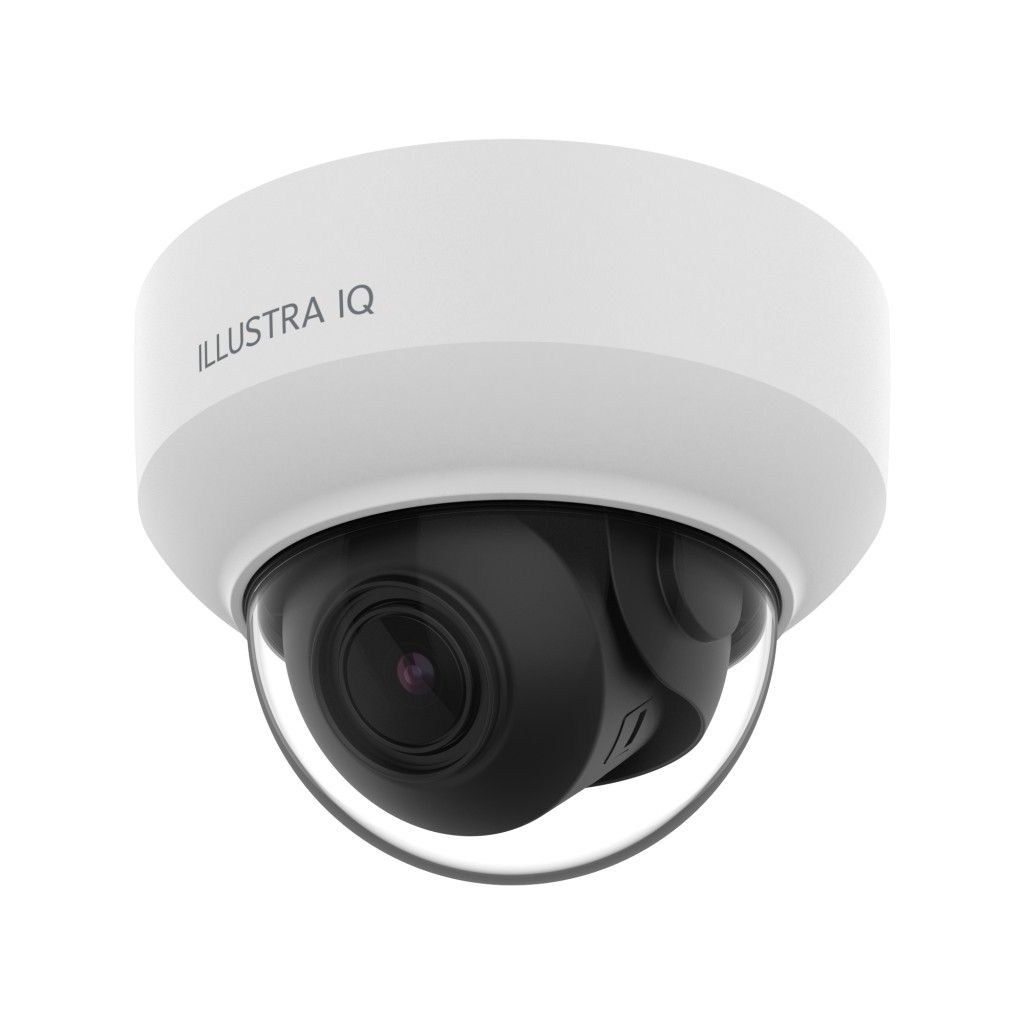

American Dynamics IFS02-D12-ATB4 Illustra Flex Gen4 2 Megapixel Minidome Camera with 2.7-13.5mm Lens
American Dynamics IFS02-D12-ATB4 Illustra Flex Gen4 2 Megapixel Minidome Camera with 2.7-13.5mm Lens
Elevate your visual experience with our state-of-the-art Flex Gen4 Indoor Mini Dome, powered by deep learning AI and designed for perfection. This camera transcends ordinary imaging capabilities, offering unparalleled enhancements in challenging conditions, including low light, thanks to its Flex AI suite—calibrated right out of the box. Smart bandwidth management ensures smooth operation without sacrificing quality, while its smart screwless design and smoked bubble aesthetic make it a stylish addition to any space. Compatibility is never an issue with an open standard interface, including Onvif Profile S, G, T, M conformity, ensuring seamless integration into existing systems. Engineered for efficiency, it boasts low power consumption and advanced security features to protect your data, alongside power failover support for uninterrupted operation. Adhering to JCI cyber norms, this camera promises not just superior performance but also peace of mind with a 5-year warranty, making it a smart, secure, and environmentally friendly choice for discerning users who demand the best in imaging technology.
Features
- Flex AI suite enabled & calibrated out of the box
- Outstanding imaging in low light conditions
- Corridor and dual HD streaming mode
- Smart screwless design with smoked bubble
- Onvif Profile S, G, T, M conformant
- Power Edge AI for Improved Security and Efficiency
- Power failover support
- Conforms to JCI cyber norms
Specifications
Attribute | Details |
---|---|
SKU | IFS02-D12-ATB4 |
Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
Manufacturer | American Dynamics |
NDAA Compliance | Compliant |
Camera Signal | Network IP |
Connection Type | Wired |
Resolution | 2 Megapixel |
Lens Type | Varifocal |
Lens Size | 2.7-13.5mm |
Mount Type | Ceiling, Wall |
Compression Method | H.264, M-JPEG, H.265 |
Durability | Indoor, Vandal Resistant |
Voltage | 24vAC, PoE |
Automatic Gain Control (AGC) | Auto, Max, Manual |
Dimensions (W x H) | Ø132 x 98 mm (Ø5.2 x 3.9 in) |
Electronic Shutter | Automatic, Manual (1/4 to 1/32000 sec) |
Image Device | Sony 1/2.8” Progressive Scan CMOS imager |
Minimum Scene Illumination | Color: 0.05 lux, B/W: 0.005 lux |
Operating Temperature | -20°C (-4°F) to +60°C (140°F); Start-up temperature: -20°C (-4°F) up to 90% RH, Non-Condensing |
Privacy Zone | 10 user definable rectangular zones |
Angle of View | H: 103.1°(W) – 31.5°(T), V: 54.5°(W) – 17.7°(T) |
Motion Detection Tracking | 3 zones supported |
Audio | Yes |
Auto Gain Control | Yes |
Day/Night Functionality | Yes |
Automatic White Balance | Yes |
Flickerless | Yes |
Motion Detection Tracking | Yes |
Privacy Masking | Yes |
Wide Dynamic Range | Yes |
Mirror | Yes |
ONVIF | Yes |
- Flex AI suite enabled & calibrated out of the box
- Outstanding imaging in low light conditions
- Corridor and dual HD streaming mode
- Smart screwless design with smoked bubble
- Onvif Profile S, G, T, M conformant
