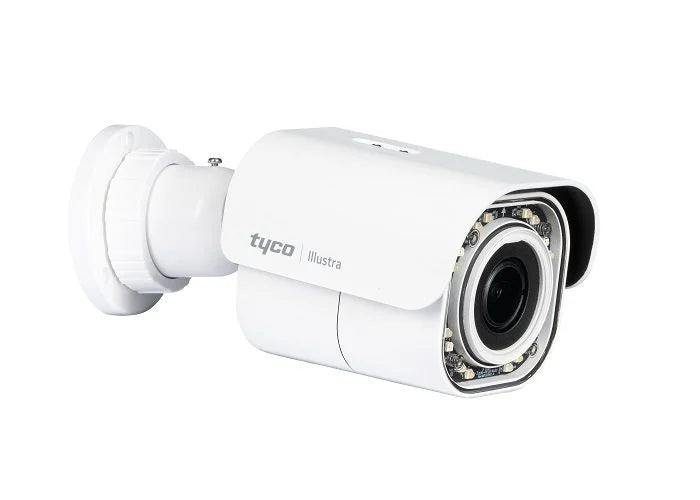

American Dynamics IES02-B12-BI04 Illustra Essentials 2MP Outdoor Network IR Bullet Camera, 2.7-13.5mm Lens, White
American Dynamics IES02-B12-BI04 Illustra Essentials 2MP Outdoor Network IR Bullet Camera, 2.7-13.5mm Lens, White
The Illustra Essentials Gen4 Varifocal Bullet camera offers resolutions up to 1080p with IR illumination to manage low light scenes. The affordable cameras capture video in a variety of lighting conditions with features such as True Day/Night and Wide Dynamic Range to fulfill security operators’ expectations, all while maintaining a lower price point. The camera includes the latest compression technologies by supporting both H.265 and H.264 codecs resulting in reduced bandwidth and storage requirements. To aid ease of setup all Essentials Gen4 models support one-touch auto-focus, and the varifocal models provide motorized zoom. Rated IP67 for an additional degree of environmental protection, the Varifocal Bullet exceeds previous generations of Illustra Essentials cameras. The Essential Gen4 Varifocal Bullet also features corridor mode which allows cameras to maximize video surveillance in narrow vertical situations. Ideal for hallways, retail aisles, and tunnels this mode creates a unique high quality, vertical video.
Features
- 2MP (1080p) resolution for HD quality images
- Manage bandwidth resources with H.264 and H.265 dualstream encoding
- Up to 30 frames per second for seamless video streaming
- 2.7-13.5mm varifocal lens with motorized zoom
- One-touch auto-focus
- IR Illuminators deliver clear video when viewing dark scenes
- IP67 environmental rating to protect against dust and water
- True Day/Night functionality for low light conditions
- WDR to simultaneously view high-contrasting areas
Specifications
Attribute | Details |
---|---|
SKU | IES02-B12-BI04 |
Features | Auto Gain Control, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
Manufacturer | American Dynamics |
Camera Signal | Network IP |
Connection Type | Wired |
Infrared Distance | 61~100 Feet |
Resolution | 2 Megapixel |
Lens Type | Varifocal |
Lens Size | 2.7-13.5mm |
Mount Type | Ceiling, Wall |
Compression Method | H.264, M-JPEG, H.265 |
Durability | Weather Resistant |
Voltage | 12vDC, PoE |
Dimensions (W x H) | 77mm x 84mm x 176mm (3.03in x 3.3in x 6.92in) |
Electronic Shutter | 1/2~1/10,000s (Manual: default NTSC=1/30s, PAL=1/25s) /(Shutter-priority: default NTSC=1/60s, PAL=1/50s) |
Image Device | 1/2.8”, Sony CMOS |
Minimum Scene Illumination | Color: 0.08 Lux (50IRE) |
Operating Humidity | 10% to 90% (non-condensing) |
Operating Temperature | Cold Start Temperature: -20°C to 60°C (-40°F to 140°F), Operating Temperature: -30°C to 60°C (-22°F to 140°F) |
Power Consumption | 9.9W |
Privacy Zone | 8 |
Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, Unicast, NTP, SMTP, WSSecurity, IEEE 802.1x, PEAP, SSH, HTTPS, SSL, SOAP, WSAddressing, SNMP, UPnP, RTSP, LLDP |
S/N Ratio | More than 50dB |
Weatherproof | IP67 |
Digital Noise Reduction | 3D |
Angle of View | Wide Angle: 100°/53°, Telephoto: 34°/20° |
Motion Detection Tracking | 3 Zones |
IR Distance | 30m/98.42ft |
Auto Gain Control | Yes |
Day/Night | Yes |
Digital Noise Reduction | Yes |
Motion Detection Tracking | Yes |
Privacy Masking | Yes |
Wide Dynamic Range | Yes |
Mirror | Yes |
ONVIF | Yes |
