Exacq

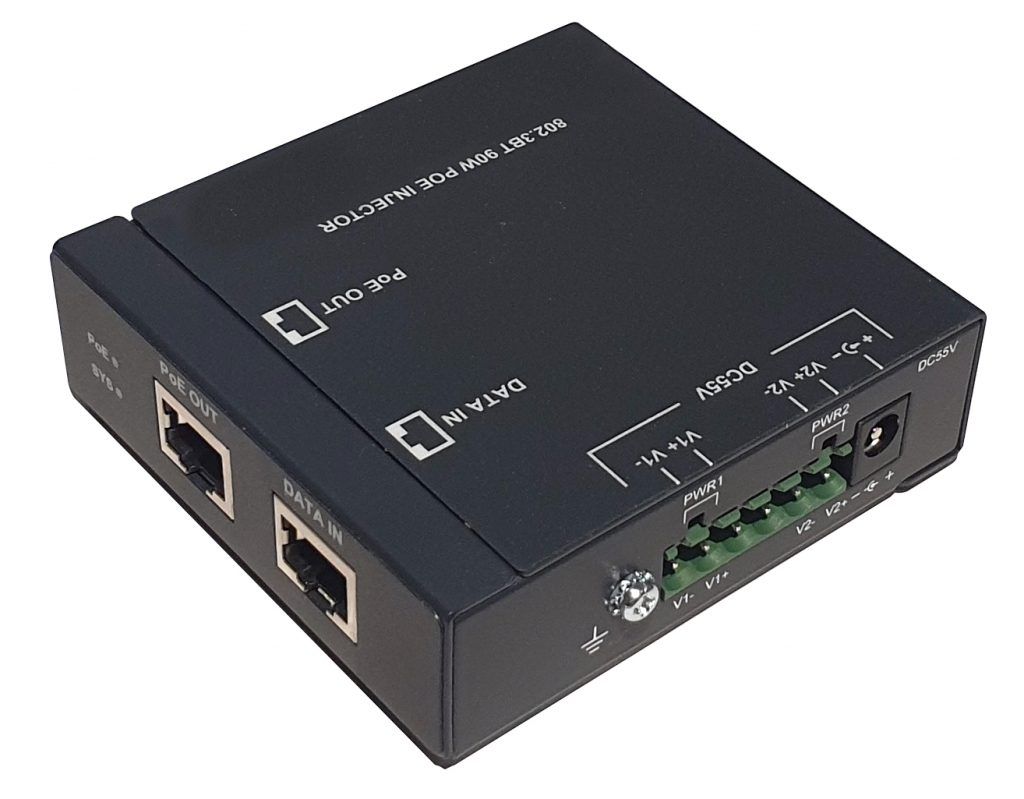

American Dynamics IA-POE-90-U00 90w PoE Injector

American Dynamics IA-POE-90-U00 90w PoE Injector

Regular price $435.00 USD
Regular price Sale price $435.00 USD
Sale Sold out
Shipping calculated at checkout.

The IA-POE-90-U00 is a next-generation injector that is compliant with IEEE 802.3af/at/bt. With PoE (Power over Ethernet) technology, both data and power to Ethernet-enabled devices run on a standard CAT5 cable. Based on the IEEE 802.3af/at/bt PoE standard, it provides the capability to serve up to 90W on a single port using four pairs of Cat. 5e/ Cat.6 Ethernet cabling.

The IA-POE-90-U00 injector flexibly deploys standard and high-powered PD devices to transfer data and power simultaneously through one Ethernet cable while reaching distances of up to 100 meters. It supports dual power inputs via a pluggable terminal block or DC jack. DIN-rail and wall-mounting options provide greater ease of installation.

Features

  • Supports 10/100/1000Base-T (X) for PoE out and Data in
  • IEEE 802.3af/at/bt compliant
  • Power input 55~57 VDC, injects power up to 90W
  • Provides slim size and DIN-rail with IP40 metal mechanism
  • Supports operating temperatures from -40 to 75°C (-40 to 167°F)

Specifications

SKU  IA-POE-90-U00
Manufacturer  American Dynamics
Number of Ports 1
PoE Compliancy Yes
Input Voltage 55-57VDC
Remote Management No



Product Highlights
    • Supports 10/100/1000Base-T (X) for PoE out and Data in
    • IEEE 802.3af/at/bt compliant
    • Power input 55~57 VDC, injects power up to 90W
    • Provides slim size and DIN-rail with IP40 metal mechanism
    • Supports operating temperatures from -40 to 75°C (-40 to 167°F)
