TriStar Security Products

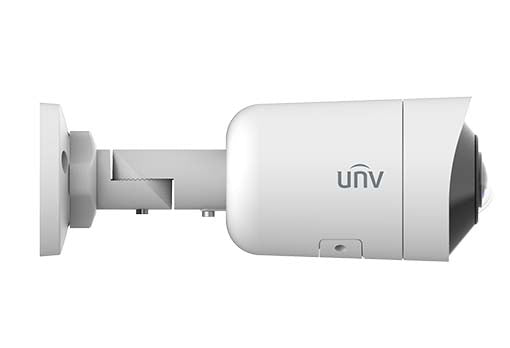

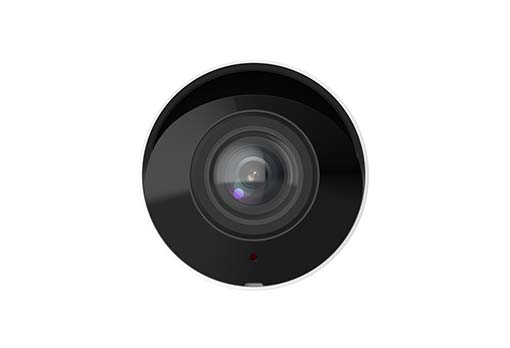

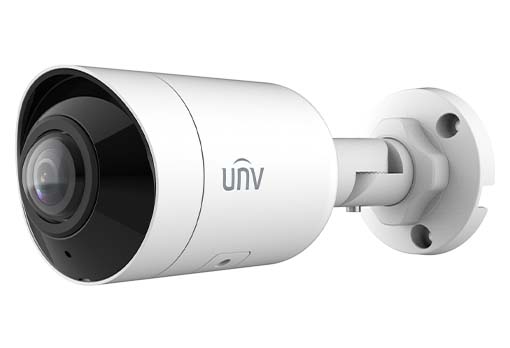

8MP HD Wide Angle Intelligent IR Fixed Bullet Network Camera - IPC2108SB-ADF16KM-I0

8MP HD Wide Angle Intelligent IR Fixed Bullet Network Camera - IPC2108SB-ADF16KM-I0

Regular price $709.00 USD
Regular price Sale price $709.00 USD
Sale Sold out
Shipping calculated at checkout.

This 8MP HD Wide Angle Intelligent IR Fixed Bullet Network Camera provides clear and detailed images with its high-resolution capabilities. Its intelligent IR technology enhances visibility in low light conditions, while its wide angle lens offers a broader field of view. Perfect for surveillance and security purposes.

Features

• High quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160) @30/25fps; 5MP (3072*1728)@30/25fps; 4MP(2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps; s
• Wide Angle technology realize the horizontal viewing angle of 180°
• The dewarp level can be configured in the range of 1-9
• Ultra 265,H.264,H.265, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor svehicle
• 120dB true WDR technology enables clear image in strong light scene
• Auto Scene Match (ASM)(Only WDR)
• Built-in Mic
• Smart IR, up to 20m (66ft) IR distance
• Supports 256 GB Micro SD card
• IP67 protection


Specifications

Camera
Sensor 1/2.7", 8.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.01lux (F2.0, AGC ON)
0 lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
WDR 120dB
S/N >52dB
Lens
Lens type 1.68mm@F2.0
Iris Fixed
Field of View (H) 180°
Field of View (V) 100°
Field of View (O) 180°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
1.68 37.8(124.0ft) 15.1(49.6ft) 7.6(24.8ft) 3.8(12.4ft)
Illuminator
IR Range Up to 20m (66ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720) Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
Auto Scene Match (ASM) Support(Only WDR)
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/ Flip Vertical/ Flip Horizontal/180°
Dewarping Support
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection
Attribute Collection SIP with color retrieval
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile T, Profile G), API,SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2, EN50130)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7W
Power Interface Ø 5.5mm coaxial power plug
Dimensions 198× 71 × 71mm (7.8” × 2.8” × 2.8”)
Weight 0.43kg (0.94lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button Support
Web Client Language 20 Languages
Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
