Vivotek

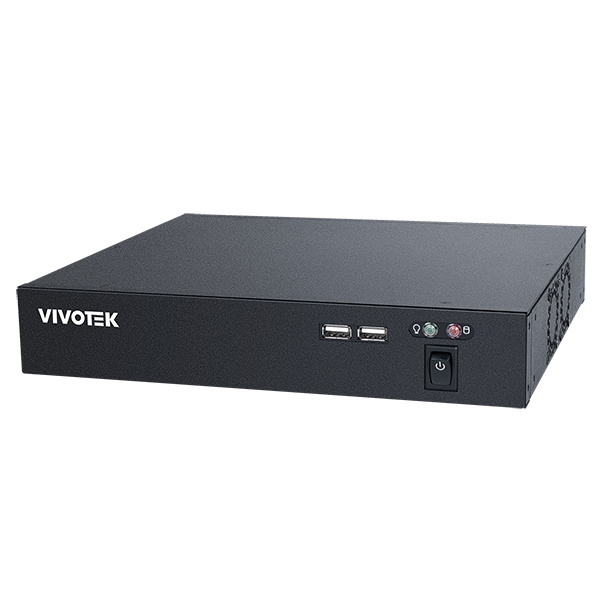

Vivotek Facial Recognition CMS - IE9281-FM

Vivotek Facial Recognition CMS - IE9281-FM

Regular price $4,455.00 USD
Regular price Sale price $4,455.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Specification

Product Information

Feature Specification
Hardware Intel CPU: i7 (8th Generation)
DDR4 32GB RAM
HDD: 2.5" 500GB SSD
OS Linux
Maximum Number of Faces in Database 50,000
Maximum Number of Connected Devices Up to: 256
Power Input 100-240V AC
Power Consumption Max. 90W
Dimensions 250 x 44.2 x 225 mm (L x W x H)
Weight 3.98 kg
Safety Certifications CE, FCC
Support Device FD9387-FR-V2 & V3, FT9361-R, IE9232-F
Push Notification Line, WhatsApp, JSON, E-Mail

System

Feature Specification
Architecture Three Tier Server-client system:
Web Server
Application Server
Database Server
Supported OS Ubuntu Server 20.04
Supported Protocols HTTP & HTTPS
Supported Hypervisors VMware, Hyper-V, Virtual Box
Container Type Docker
Database Type MongoDB

System Security

Feature Specification
System Security Single device login
Renewable session token
Hardened HTTPS
Management Interface Web Client
Supported Browsers Google Chrome, Mozilla Firefox
Languages English, Traditional Chinese

Environment Adaptability

Feature Specification
Camera Installation Height 3.0 meters max. camera height
Mounting Position Within 10 degrees incline
Supported Image Modes Color & Monochrome
Robust Against Large expressions
Beards, moustaches, and different hairstyles
Eyeglasses
Caps and scarfs
Irregular lighting
Partial face obstruction

Supported Devices & Integrations

Feature Specification
I/O Relay Moxa E1214
Advantech ADAM 60XX
VIVOTEK AO-20W I/O Device
IP-to-Wiegand Converter Doorcard DCT-4TW26
VIVOTEK AO-20W Wiegand Box
HTTP Notifications Send customized GET/POST HTTP messages
Others Use VAST Face RESTful API

Persons of Interest (POI) Management

Feature Specification
POI Management Enroll person using Web client.
Manage face profiles database through Web Portal
POI Authentication Using Face as a credential
Using Card Number
POI Groups Default groups: VIP, Blacklist, Staff
User-defined person groups
POI Batch Enrollment Supports bulk enrollment using Excel & JPEG files
Enrollment Photo Min. face size: 200x200 pixels
1MB max. photo size (.JPG or .PNG)
POI Profile Information Name, ID #, card #, job position, email, phone, POI group(s), expiration date

POI Reports

Report Type Filters
Investigation Reports Location, time period, name, POI group, POI type (enrolled or stranger)
Attendance Reports Clock-in time, clock-out time, stay length, late arrival, early leave
Actions Reports Pre-defined actions triggered in response to events
Export Data Export results to Excel file

Trigger Rules and System Actions

Feature Specification
Rule Engine Trigger based on:
Event location, schedule, detection time, POI profile, POI group affiliation, or type (enrolled/stranger)
Supported Actions Trigger I/O Relay
Trigger IP-to-Wiegand converter
Send HTTP GET/POST command
WebSocket notification

System Users Management

Feature Specification
System Users Register using name, email, phone
System User Groups System Administrator
Administrator
VAST Face Manager

System Inter-compatibility

Feature Specification
Supported Products VIVOTEK VAST2 VMS/ CMS
VIVOTEK VAST FaceManager
VIVOTEK VAST FaceVisitor

Facial Recognition Verticals

Application Use Case
Identify Potential Troublemakers Shoplifters, criminals, or any other barred individuals
Detect VIP Members Deliver tailored experiences upon arrival
Provide Physical Entry Access control for buildings, residences, and other rooms
Contactless Clock-In Staff attendance management
Verify Visitor Identity Confirm identity for access
