Vivotek

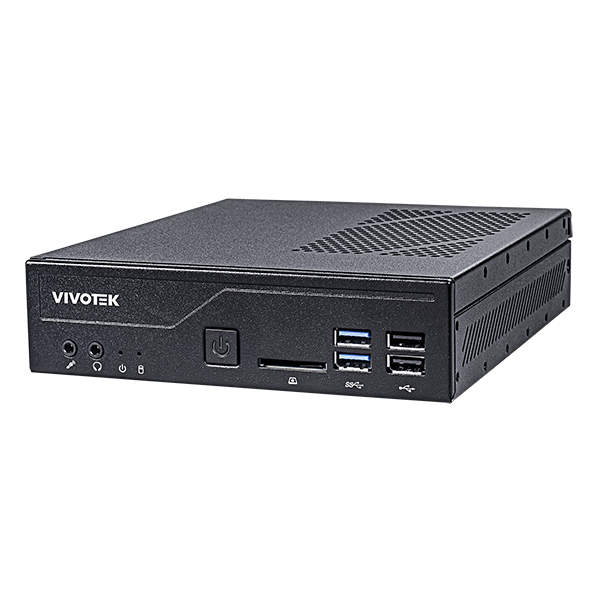

Vivotek Facial Recognition CMS - IE8213-FM
Vivotek Facial Recognition CMS - IE8213-FM
Regular price
$3,475.20 USD
Regular price
Sale price
$3,475.20 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
Product Information
| Feature | Specification |
|---|---|
| Hardware | Intel CPU: i7 (8th Generation), DDR4 32GB RAM, HDD: 2.5" 500GB SSD |
| OS | Linux |
| Maximum Number of Faces in Database | 50,000 |
| Network | 10/100Mb/1Gb Network |
| Maximum Number of Connected Devices | Up to 128 |
| Power Input | 100-240V AC |
| Power Consumption | Max. 90W |
| Dimensions | 190 x 165 x 43 mm (LWH) |
| Weight | 1.3 kg |
| Safety Certifications | CE, FCC |
System
| Feature | Specification |
|---|---|
| Architecture | Three-tier server-client system: Web Server Application Server Database Server |
| Supported OS | Ubuntu Server 20.04 |
| Supported Protocols | HTTP & HTTPS |
| Supported Hypervisors | VMWare, Hyper-V, Virtual Box |
| Container Type | Docker |
| Database Type | MongoDB |
System Security
| Feature | Specification |
|---|---|
| System Security | Single device login Renewable session token Hardened HTTPS |
| Management Interface | Web Client |
| Supported Browsers | Google Chrome, Mozilla Firefox |
| Languages | English, Traditional Chinese |
Environment Adaptability
| Feature | Specification |
|---|---|
| Camera Installation Height | 3.0 meters max. |
| Mounting Position | Within 10 degrees incline |
| Supported Image Modes | Color & Monochrome |
| Robust Against | Large expressions Beards, moustaches, and hairstyles Eyeglasses, caps, scarfs Irregular lighting Partial face obstruction |
Supported Devices & Integrations
| Feature | Specification |
|---|---|
| I/O Relay | Moxa E1214, Advantech ADAM 60XX, VIVOTEK AO-20W I/O Device |
| IP-to-Wiegand Converter | Doorcard DCT-4TW26, VIVOTEK AO-20W Wiegand Box |
| HTTP Notifications | Send customized GET/POST HTTP messages |
| Others | Use VAST Face RESTful API |
Persons of Interest (POI) Management
| Feature | Specification |
|---|---|
| POI Management | Enroll person using Web client |
| POI Authentication | Face as a credential Card number |
| POI Groups | Default: VIP, Blacklist, Staff User-defined groups |
| POI Batch Enrollment | Bulk enrollment via Excel & JPEG files |
| Enrollment Photo | Min. face size: 200x200 pixels 1MB max photo size (.JPG or .PNG) |
| POI Profile Information | Name, ID #, card #, job position, email, phone, POI group(s), expiration date |
POI Reports
| Report Type | Filters |
|---|---|
| Investigation Reports | Location, time period, name, POI group, POI type (enrolled or stranger) |
| Attendance Reports | Clock-in time, clock-out time, stay length, late arrival, early leave |
| Actions Reports | Pre-defined actions triggered in response to events |
| Export Data | Export results to Excel file |
Trigger Rules and System Actions
| Feature | Specification |
|---|---|
| Rule Engine | Trigger based on: Event location, schedule, detection time, POI profile, POI group affiliation, or type (enrolled/stranger) |
| Supported Actions | Trigger I/O Relay Trigger IP-to-Wiegand converter Send HTTP GET/POST command WebSocket notification |
System Users Management
| Feature | Specification |
|---|---|
| System Users | Register using name, email, phone |
| System User Groups | System Administrator Administrator VAST Face Manager |
Facial Recognition Verticals
| Application | Use Case |
|---|---|
| Identify Potential Troublemakers | Shoplifters, criminals, barred individuals |
| Detect VIP Members | Deliver tailored experiences |
| Provide Physical Entry | Access control for buildings and rooms |
| Contactless Clock-In | Staff attendance management |
| Verify Visitor Identity | Confirm identity for access |
