Vivotek

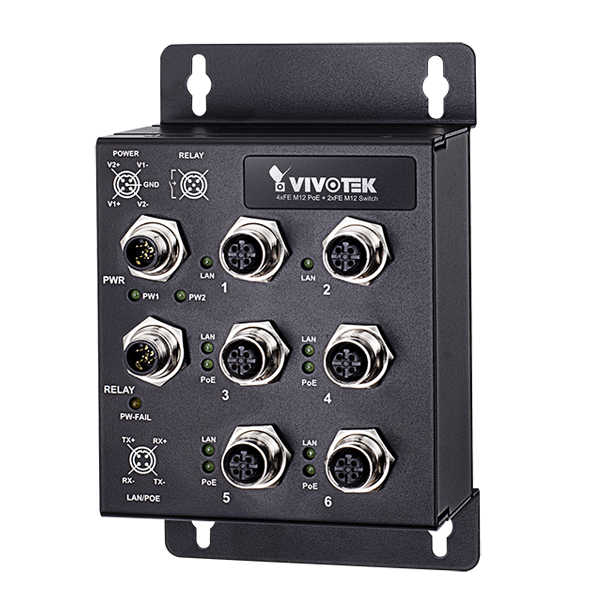

Vivotek EN50155 4xFE M12 PoE + 2xFE M12 Switch - AW-IHT-0602
Vivotek EN50155 4xFE M12 PoE + 2xFE M12 Switch - AW-IHT-0602
Regular price
$896.40 USD
Regular price
Sale price
$896.40 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Segment | M12 EN50155 Unmanaged PoE Switch |
| Product Description | 4xM12 D-coded PoE + 2xM12 D-coded Switch |
| PoE Port Ethernet | 6xM12 D-Coded |
| Uplink Port Ethernet | 2xM12 D-Coded |
| Total Ports | 6 |
| PoE Function | PoE Port |
| PoE Port | 4 |
PoE Output and Power
| Specification | Details |
|---|---|
| Max. PoE Output Power | 30W |
| PoE Power Budget | 120W |
| PoE Standard | 802.3 af/at |
| PoE Pin Assignment | 1/2 (+), 3/6 (-) |
HW Performance
| Specification | Details |
|---|---|
| Switching Bandwidth | 1.2 Gbps |
| Buffer Memory | 1Mb |
| Forwarding Rate | 0.8928 Mpps |
| MAC Address | 4K |
| Jumbo Frames | 9216 Bytes |
| Max. Power Consumption | 130W |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 5% ~ 90% Non-Condensing |
Mechanical Specifications
| Specification | Details |
|---|---|
| Dimensions | 100 (L) x 163 (W) x 56.2 (H) mm |
| Weight | 0.85 kg |
Power Source
| Specification | Details |
|---|---|
| Power Input | PW1: 24 ~ 56VDC |
| PW2: 24 ~ 56VDC | |
| Redundant Power Backup |
Certifications
| Specification | Details |
|---|---|
| Types | CE, FCC, EN50155 |
