Vivotek

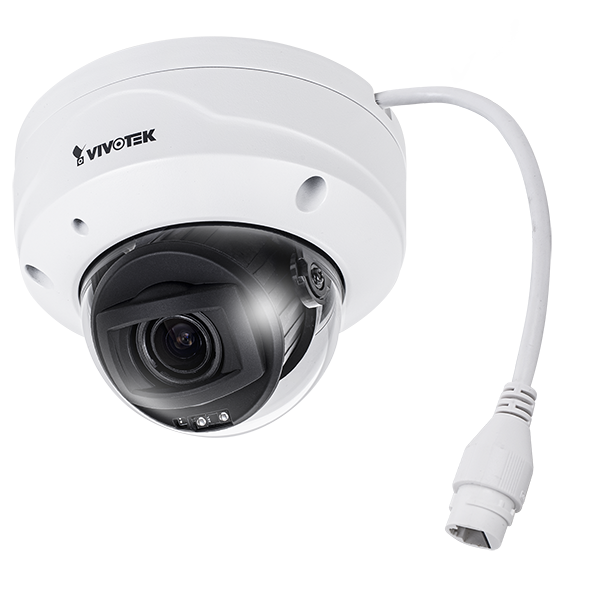

Vivotek 5MP Outdoor Fixed Dome Network Camera - FD9388-HTV
Vivotek 5MP Outdoor Fixed Dome Network Camera - FD9388-HTV
Regular price
$289.00 USD
Regular price
Sale price
$289.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
System Information
| Component | Specification |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 1 GB |
| RAM | DDR4 2 GB |
Camera Specifications
| Component | Specification |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.7 ~ 13.5 mm |
| Aperture | F1.4(W) ~ F2.8(T) |
| Iris Type | P-iris |
| Field of View | Horizontal: 39.3° ~ 15.4°, Vertical: 70° ~ 23°, Diagonal: 128° ~ 38° |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| IR-Cut Filter | Removable |
| Illuminators | Built-in IR, effective up to 50 meters with Smart IR III, 4 LEDs |
| Minimum Illumination | Color: 0.075 lux @ F1.4, B/W: < 0.01 lux @ F1.4, 0 lux with IR |
| Pan/Tilt/Rotation | Pan: ±175°, Tilt: 80°, Rotation: ±175° |
| Zoom Functionalities | ePTZ: 48x digital zoom (4x via IE, 12x built-in) |
Video
| Component | Specification |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Max Frame Rate | 30 fps @ 2560x1920, 30 fps @ 1600x1200 |
| Max Streams | 3 streams (Up to 8 configurable profiles) |
| Dynamic Range | 120 dB |
| S/N Ratio | 61 dB |
| Video Streaming | Adjustable resolution and bit rate, Smart Stream II |
Audio
| Component | Specification |
|---|---|
| Audio Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input, Line out |
Network
| Component | Specification |
|---|---|
| AI Analytics | SoC with deep learning accelerator |
| Analytics | Facial recognition, Person stay tracking |
| Protocols | 802.1X, HTTP/HTTPS, TCP/IP, SNMP, etc. |
Alarm and Event
| Trigger | Audio detection, motion, tampering, cyber events, manual | | Actions | Email, FTP, NAS upload, SD recording |
General
| Component | Specification |
|---|---|
| Connectors | RJ-45, Audio I/O, DC/AC Power, Digital I/O |
| Power Input | AC 24V/DC 12V, IEEE 802.3at PoE Class 4 |
| Power Consumption | Max 23W (IR on) |
| Dimensions | Ø 155 x 103.2 mm |
| Weight | 909 g |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Certifications | EMC, Safety, Environment |
System Requirements
| Operating System | Microsoft Windows 10/8/7, Mac (Chrome only) |
|---|---|
| Browser | Chrome 58.0+, Internet Explorer 11 |
| Player Support | VLC 1.1.11+ |
