Vivotek

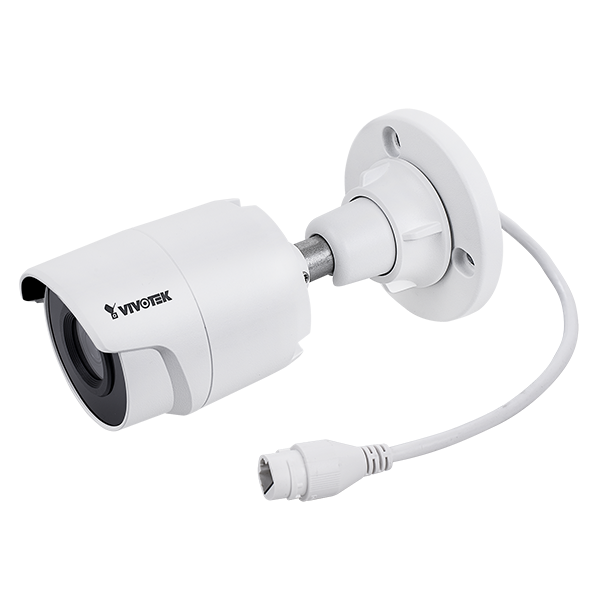

Vivotek 5MP Outdoor Bullet Network Camera - IB9380-H
Vivotek 5MP Outdoor Bullet Network Camera - IB9380-H
Regular price
$209.00 USD
Regular price
Sale price
$209.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
System Information
| Specification | Details |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 512 MB |
Camera Specifications
| Specification | Details |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 3.6mm |
| Aperture | F2.0 |
| Iris Type | Fixed iris |
| Field of View | 76° (Horizontal), 59° (Vertical), 100° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 30 meters (Smart IR, IR LED*2) |
| Minimum Illumination | 0.03 lux @ F2.0 (Color), <0.005 lux @ F2.0 (B/W), 0 lux with IR on |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | MicroSD/SDHC/SDXC (up to 1TB), NAS |
Video
| Specification | Details |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 20 fps @ 2560x1920 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 67 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, constant bit rate control, Smart Stream III |
Image Settings
| Specification | Details |
|---|---|
| General Settings | Video title and timestamp overlay, video orientation (flip, mirror, rotation), day/night settings |
| Illuminators | Anti-overexposure |
| Image Adjustments | White balance, brightness, contrast, saturation, sharpness, gamma curve, defog, 3DNR |
| Exposure | BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR |
| Privacy Mask | Yes |
| Scheduled Profiles | Yes |
Network
| Specification | Details |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45), recommended standard CAT5e & CAT6 cables |
| ONVIF | Profile G, S, T supported |
Alarm and Event
| Specification | Details |
|---|---|
| Event Trigger | Camera tampering, cybersecurity events, manual trigger, motion detection, SD card life expectancy, system boot |
| Event Action | Notification via email, HTTP, FTP, NAS server, SD card, push notification |
General
| Specification | Details |
|---|---|
| Connectors | RJ-45 cable connector for 10/100Mbps Network/PoE connection |
| LED Indicator | Hidden system power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 6.49 W/3.6 W (IR on/off) |
| Dimensions | 91 x 176.8 mm |
| Weight | 530 g |
| Certifications | EMC, Safety, Environmental (IP66, IK10) |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | Starting: -10°C ~ 60°C, Working: -30°C ~ 60°C |
| Humidity | 90% |
System Requirements
| Specification | Details |
|---|---|
| OS | Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58+, Internet Explorer 10/11 |
| Players | VLC 1.1.11+ |
