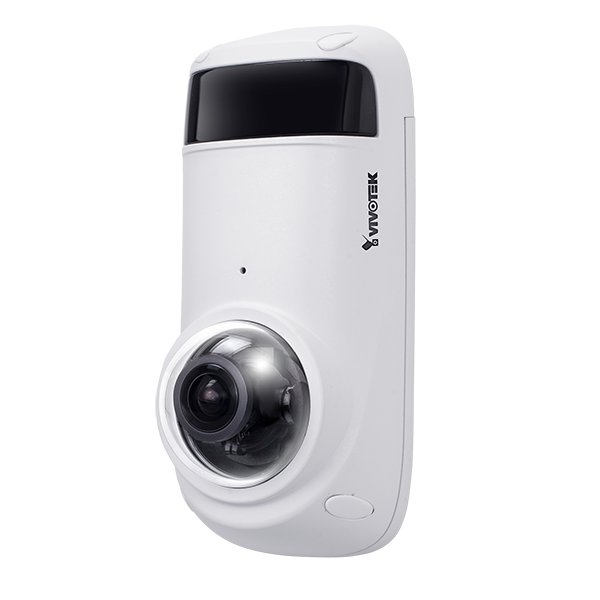

Vivotek 5MP IR Compact Panoramic Network Camera - CC9381-HV

System Information

• CPU:

  • Multimedia SoC (System-on-Chip)

• Flash:

  • 256 MB

• RAM:

  • 512 MB

Camera Specifications

• Image Sensor:

  • 1/2.7" Progressive CMOS

• Max. Resolution:

  • 2560x1920 (5MP)

• Lens Type:

  • Fixed-focal

• Focal Length:

  • f = 1.45 mm

• Aperture:

  • F2.2

• Iris Type:

  • Fixed iris

• Field of View:

  • 180° (Horizontal)
  • 120° (Vertical)
  • 180° (Diagonal)

• Shutter Time:

  • 1/5 sec. to 1/32,000 sec.

• WDR Technology:

  • WDR Pro

• Day/Night:

  • Yes

• Removable IR-cut filter:

  • Yes

• Illuminators:

  • Built-in IR illuminators up to 15 meters with Smart IR, IR LED*4

• Minimum Illumination:

  • 0.11 lux @ F2.2 (Color)
  • 0.01 lux @ F2.2 (B/W)
  • 0 lux with IR illumination on

• Tilt Range:

  • ±25°

• Pan/Tilt/Zoom Functionalities:

  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

• Storage:

  • Seamless recording to MicroSD/SDHC/SDXC card (1TB capacity supported)
  • Recording to network-attached storage (NAS)

Video

• Compression:

  • H.265, H.264, MJPEG

• Maximum Frame Rate:

  • H.265: 20 fps/30 fps @ 2560x1920 (WDR Pro on/off)
  • H.264: 20 fps/25 fps @ 2560x1920 (WDR Pro on/off)
  • MJPEG: 20 fps/20 fps @ 2560x1920 (WDR Pro on/off)

• Maximum Streams:

  • 3 video streams (Up to 8 configurable profiles)

• S/N Ratio:

  • 62 dB

• Dynamic Range:

  • 120 dB

• Video Streaming:

  • Adjustable resolution, quality, and constrained bit rate control
  • Smart Stream III

• Image Settings:

  • General settings
  • Video title and timestamp overlay
  • Video orientation (flip, mirror)
  • Day/night settings

• Illuminators:

  • Built-in IR illuminators
  • Anti-overexposure

• Image Settings (Advanced):

  • White balance
  • Image adjustment (brightness, contrast, saturation, sharpness, gamma curve)
  • Defog, 3DNR, HLM, DIS, Scene mode (auto, deblur)

• Exposure:

  • BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode)
  • AE speed adjustment
  • WDR

• Privacy Mask:

  • Yes

• Scheduled Profile Settings:

  • Yes

Audio

• Audio Capability:

  • One-way audio (audio received from the camera to the viewer)

• Compression:

  • G.711, G.726

• Interface:

  • Built-in microphone

• Effective Range:

  • 5 meters

Network

• Users:

  • Live viewing for up to 10 clients simultaneously.

• Security:

  • Access List: Allows configuration of who can access the device.
  • Digest Authentication: Ensures secure login.
  • HTTPS: Provides secure communication over HTTP.
  • IEEE 802.1X: Port-based network access control.
  • Password Protection: Secures the device with a password.
  • Signed Firmware: Ensures firmware integrity.
  • Trend Micro IoT Security: Includes protection against brute force attacks, cyberattacks, and quarantine events.
  • User Access Log: Tracks login attempts and actions.
  • User Account Management: Allows management of different user roles and permissions.

• Protocols Supported:

  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP.

• Interface:

  • 10Base-T/100BaseTX Ethernet (RJ-45) for network and PoE (Power over Ethernet) connection.
  • Cable Recommendations: Use standard Cat. 5e or Cat. 6 cables compliant with the 3P/ETL standard for optimal performance.

Solution Integration

• Video Motion Detection:
  • Motion Detection (Five-window video motion detection)

Alarm and Event

• Event Trigger
  • Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
• Event Action
  • Event notification via email, HTTP, FTP, NAS server, SD card, push notificationFile upload via email, HTTP, FTP, NAS server, SD card

General

Connectors:

• • Network/PoE Connection: RJ-45 cable connector for 10/100 Mbps Ethernet.

LED Indicator:

• • System Power and Status Indicator: Displays system power and operational status.

Power Input:

• • PoE Power Input: IEEE 802.3af PoE Class 0.

Power Consumption:

• • Max Power Consumption: 9.12 W (IR on), 5.37 W (IR off).

Dimensions:

• • Size: 160 x 72 x 60 mm.

Weight:

• • Weight: 492 g.

Certifications:

• • EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B).
  • Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471).

Environment:

• • IK Rating: IK10 (IEC 62262).
  • IP Rating: IP66 (IEC 60529).

Other Approvals:

• • IA: BIS (IS 13252).

Operating Temperature:

• • Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F).
  • Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F).

Humidity:

• • Humidity Range: 90% RH (non-condensing).

System Requirements

Operating System Requirements:

• • Microsoft Windows: Windows 10/8/7
  • Mac: macOS 10.12 or above (Chrome only)

Web Browser Requirements:

• • Google Chrome: Version 58.0 or above
  • Internet Explorer: Versions 10/11

Other Supported Players:

• • VLC Player: Version 1.1.11 or above
