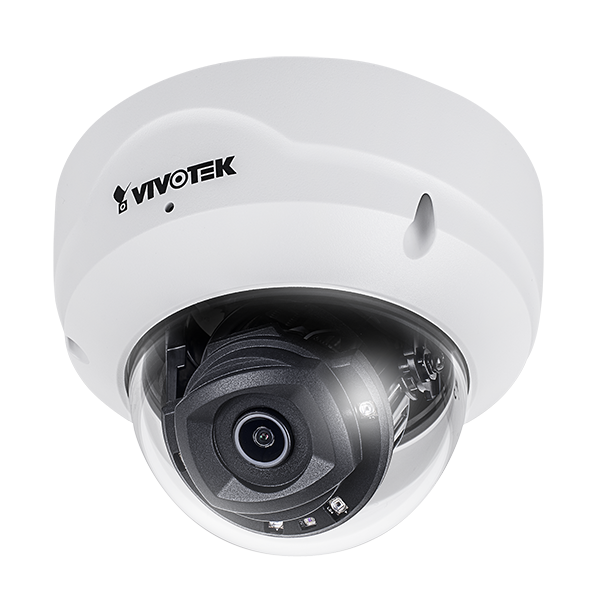

Vivotek 5MP Indoor Fixed Dome AI Camera - FD9189-H-V2
Vivotek 5MP Indoor Fixed Dome AI Camera - FD9189-H-V2
Regular price
$378.00 USD
Regular price
Sale price
$378.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification Chart
| Category | Specification |
|---|---|
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 1 GB |
Camera Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Iris Type | Fixed iris |
| Field of View | 103° (Horizontal), 76° (Vertical), 134° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED * 4 |
| Minimum Illumination | 0.06 lux @ F2.0 (Color), 0.01 lux @ F2.0 (B/W), 0 lux with IR illumination on |
| Pan Range | >350° |
| Tilt Range | 80° |
| Rotation Range | ±175° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
Video
| Category | Specification |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 (5MP) (WDR on), 30 fps @ 2560x1440 (4MP) (WDR on), 60 fps @ 1920x1080 (2MP) (WDR off) |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | > 55dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, and constant bit rate control, Smart Stream III |
Image Settings
| Category | Specification |
|---|---|
| General settings | Video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings |
| Illuminators | Anti-overexposure |
| Image settings | White balance, brightness, contrast, saturation, sharpness, gamma curve, defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur) |
| Exposure | BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR |
| Privacy mask | Scheduled profile settings |
Audio
| Category | Specification |
|---|---|
| Audio Capability | One-way Audio |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
Network
| Category | Specification |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
AI Analytics
| Category | Specification |
|---|---|
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection (people, vehicle [4-wheeled, 2-wheeled]) |
| Attribute Extraction | People (gender, color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) |
| AI-powered Image Enhancement | Smart IR III |
Alarm and Event
| Category | Specification |
|---|---|
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Event Action | Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card; File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
General
| Category | Specification |
|---|---|
| Connectors | RJ-45 cable connector for Network 10/100 Mbps PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max: 6.3W (IR on), Max: 3.9W (IR off) |
| Dimensions | 130 x 95 mm |
| Weight | 350 g |
Certifications
| Category | Specification |
|---|---|
| EMC | CE (EN55032, EN55024 Class B, E50121-4), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B) |
| Safety | UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) |
| IA | BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
Environmental Requirements
| Category | Specification |
|---|---|
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F), Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) (IR off), -10°C ~ 45°C (14°F ~ 113°F) (IR on) |
| Humidity | 90% RH (non-condensing) |
System Requirements
| Category | Specification |
|---|---|
| Operating System | Microsoft Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above, Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
