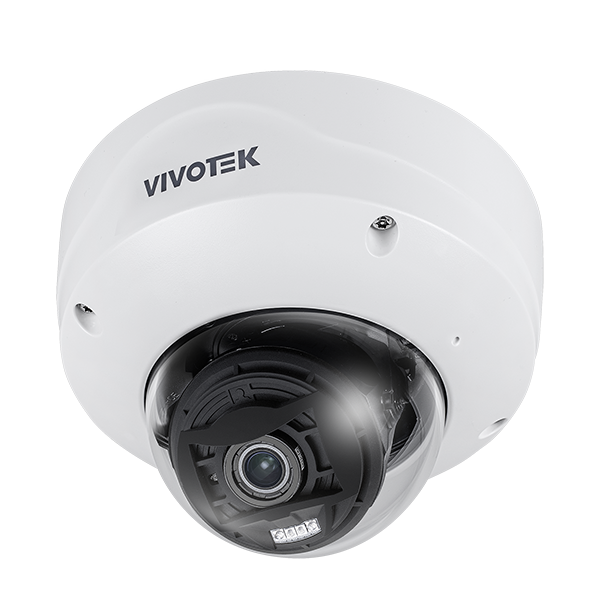

Vivotek 5MP Indoor Fixed Dome AI Camera - FD9187-HT-V3(2.7-13.5 mm)
Vivotek 5MP Indoor Fixed Dome AI Camera - FD9187-HT-V3(2.7-13.5 mm)
Regular price
$900.00 USD
Regular price
Sale price
$900.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specifications
System Information
| Component | Specification |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | eMMC 8 GB |
| RAM | DDR4 2 GB |
Camera Specifications
| Attribute | Specification |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.7 ~ 13.5 mm |
| Aperture | F1.83(W) ~ F3.32(T) |
| Iris Type | P-iris |
| Field of View | Horizontal: 100.1° ~ 29.9° Vertical: 71.8° ~ 22.4° Diagonal: 135.2° ~ 37.4° |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR, Smart IR III (Effective up to 50 meters, 4 IR LEDs) |
| Minimum Illumination | Color: 0.04 lux @ F1.8 B/W: <0.005 lux @ F1.8 0 lux with IR on |
| Pan Range | ±175° |
| Tilt Range | 80° |
| Rotation Range | ±175° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | MicroSD/SDHC/SDXC (1TB), NAS support |
| Built-in Installation Aids | Remote focus/zoom, Micro USB, Pixel calculator |
Video Specifications
| Attribute | Specification |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Max. Frame Rate | 30 fps @ 2560x1920 (WDR Pro on) 60 fps @ 1920x1080 (WDR Pro off) |
| Max. Streams | 3 video streams (8 configurable profiles) |
| Dynamic Range | 120 dB |
| S/N Ratio | 70 dB |
| Video Streaming | Adjustable resolution/quality, Smart Stream III |
Image Settings
| General Settings | Video title/time overlay, flip/mirror, day/night settings |
|---|---|
| Illuminators | Anti-overexposure, VCA-based Smart IR III |
| Exposure | BLC, HLC, AE speed adjustment, WDR, motion blur sharpener |
| Focus | Zoom, focus |
| Privacy Mask | Yes |
Audio Specifications
| Attribute | Specification |
|---|---|
| Audio Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone, external mic input |
| Effective Range | 5 meters |
Network & Security
| Users | Live viewing for up to 10 clients |
|---|---|
| Protocols | 802.1X, RTSP/RTP, HTTPS, NTP, SNMP, etc. |
| Security | Trend Micro IoT Security, CSRF protection |
AI Analytics
| Feature | Description |
|---|---|
| Object Detection | People, Vehicles (2-wheeled, 4-wheeled) |
| Attribute Extraction | Gender, clothing color, vehicle type |
| Applications | Smart VCA, Smart Motion Detection |
Power and General Specifications
| Attribute | Specification |
|---|---|
| Power Input | AC 24V, DC 12V, PoE Class 0 |
| Power Consumption | Max. 14.4W (DC 12V), 12.95W (PoE) |
| Dimensions | ø 173.6 x 122.6 mm |
| Weight | 1.10 kg |
| Operating Temp. | -10°C to 50°C |
| Certifications | CE, FCC, UL, IP54 |
System Requirements
| OS | Windows 10/8/7, Mac (Chrome) |
|---|---|
| Browser | Chrome 58.0+, IE 11 |
| Players | VLC 1.1.11+ |
