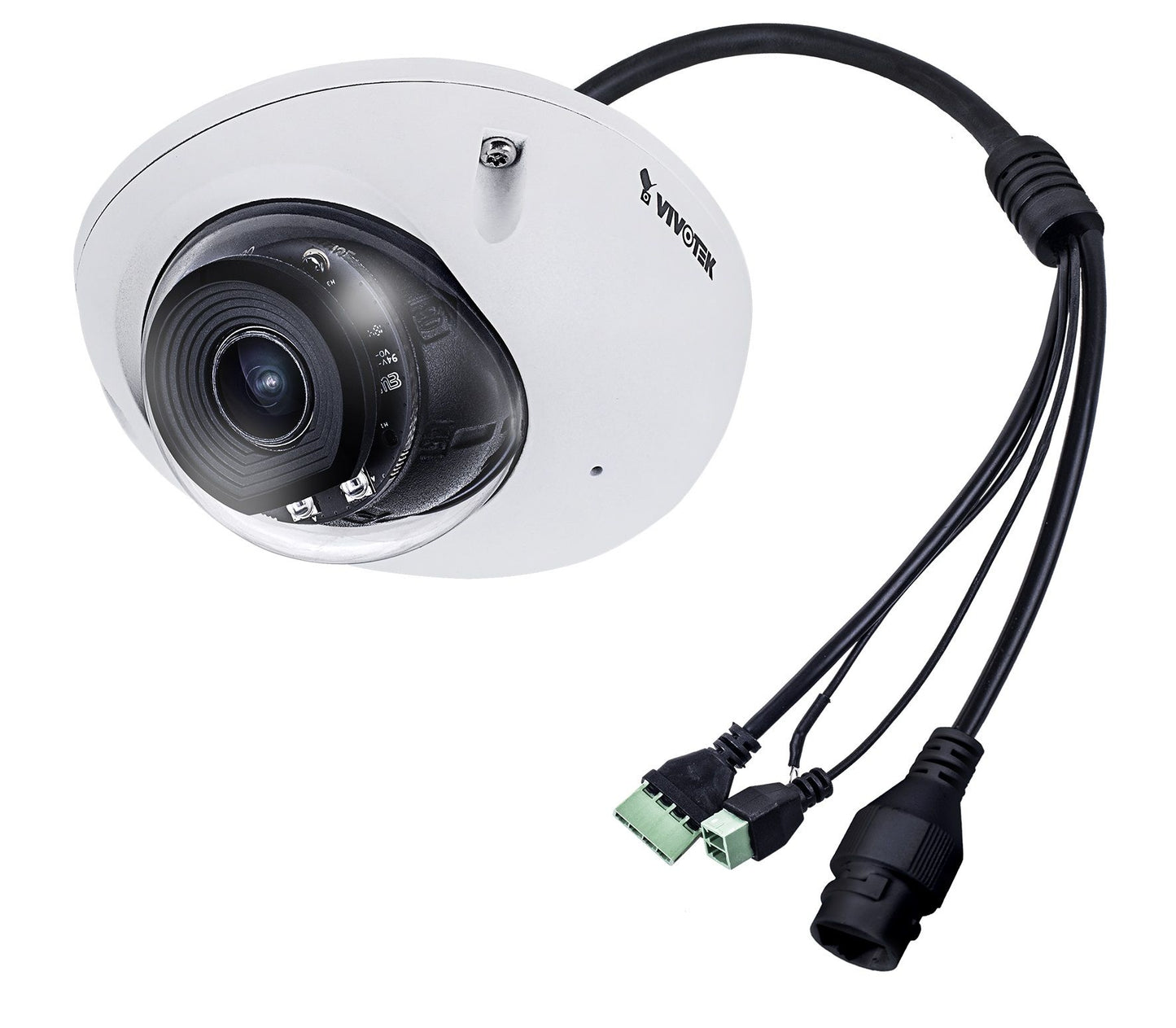

Vivotek 5 Megapixel Outdoor Network IR Dome Camera - FD9366-HVF3
Vivotek 5 Megapixel Outdoor Network IR Dome Camera - FD9366-HVF3
Regular price
$486.00 USD
Regular price
Sale price
$486.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The FD9366-HVF3 from Vivotek is a 5 megapixel outdoor network IR dome camer, 3.6mm lens.
Features
- H.265 Compression Technology
- 30 fps @1920x1080
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, effective up to 20 Meters
- Weather-proof IP67 and IP66, Vandal-proof IK10 Housing
- Built-in 802.3af Compliant PoE
- Build-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Video Rotation for Corridor Scenario
Product Specifications
| Specification | Details |
|---|---|
| SKU | FD9366-HVF3 |
| Manufacturer | Vivotek |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | Ø 98 x 54 x 110.8 mm |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec. |
| Image Device | 1/2.9" Progressive CMOS |
| IR LEDs | IR LED*2 |
| Minimum Scene Illumination | 0.15 lux @ F2.0 (Color), 0.01 lux @ F2.0 (B/W), 0 lux with IR illumination on |
| Operating Humidity | 98% |
| Operating Temperature | -25°C to 60°C (-13°F to 140°F) with IR off, -25°C to 55°C (-13°F to 131°F) with IR on |
| Power Consumption | Max. 5.5 W (IR on) / 3.3 W (IR off) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4/IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| S/N Ratio | 66 dB |
| Weatherproof | IP66, IP67 |
| Digital Noise Reduction | 3DNR |
| Angle of View | 89° (Horizontal), 47° (Vertical), 105° (Diagonal) |
| IR Distance | 20m / 65.61 ft |
| Audio | Yes |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
