Vivotek

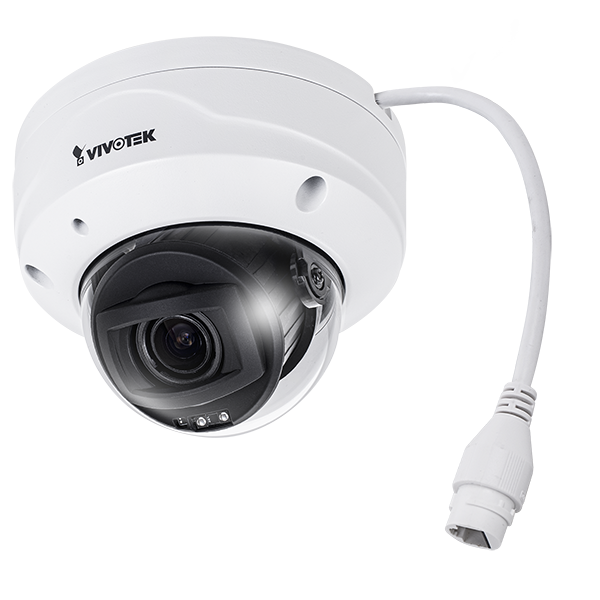

Vivotek 2MP Outdoor Fixed Dome Network Camera - FD9368-HTV
Vivotek 2MP Outdoor Fixed Dome Network Camera - FD9368-HTV
Regular price
$307.00 USD
Regular price
Sale price
$307.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specifications
System Information
| Feature | Details |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
Camera Specifications
| Feature | Details |
|---|---|
| Image Sensor | 1/2.9" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.8 ~ 12mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Type | Fixed iris |
| Field of View | Horizontal: 93° ~ 32° Vertical: 50° ~ 18° Diagonal: 110° ~ 37° |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators (effective up to 30m with Smart IR, IR LED x2) |
| Minimum Illumination | 0.055 lux @ F1.4 (Color) <0.005 lux @ F1.4 (B/W) 0 lux with IR on |
| Pan Range | 353° |
| Tilt Range | 75° |
| Rotation Range | 350° |
| PTZ Functionalities | ePTZ: 48x digital zoom (4x on IE, 12x built-in) |
| Storage | MicroSD/SDHC/SDXC card (1TB capacity supported), NAS |
| Installation Aids | Remote focus, remote zoom |
Video
| Feature | Details |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Max. Frame Rate | 30 fps @ 1920x1080 |
| Max. Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 68 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, constant bit rate control, Smart Stream III |
| Image Settings | Brightness, contrast, saturation, sharpness, WDR, anti-overexposure, privacy masks |
Audio
| Feature | Details |
|---|---|
| Audio Capability | One-way Audio |
| Compression | G.711/G.726 |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
Network
| Feature | Details |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security |
| Protocols | IPv4, IPv6, RTSP/RTP, TLS 1.2, etc. |
| Interface | 10/100Mbps Ethernet (RJ-45) |
| ONVIF | Profile G, S, T supported |
Solution Integration
| Feature | Details |
|---|---|
| Event Triggers | Audio detection, motion detection, tampering, system boot |
| Event Actions | Notifications via email, HTTP, FTP, NAS, SD card |
General
| Feature | Details |
|---|---|
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 12.95 W/9 W (IR on/off) |
| Dimensions | ø133.7mm x 103.8mm |
| Weight | 819 g |
| Certifications | CE, FCC, UL, IK10 (housing), IP66 |
| Operating Temp. | -30°C to 60°C (-22°F to 140°F) |
| Humidity | 90% |
System Requirements
| Feature | Details |
|---|---|
| OS | Windows 10/8/7, Mac 10.12 (Chrome only) |
| Browser | Chrome 58.0 or above, IE 10/11 |
| Other Players | VLC 1.1.11 or above |
