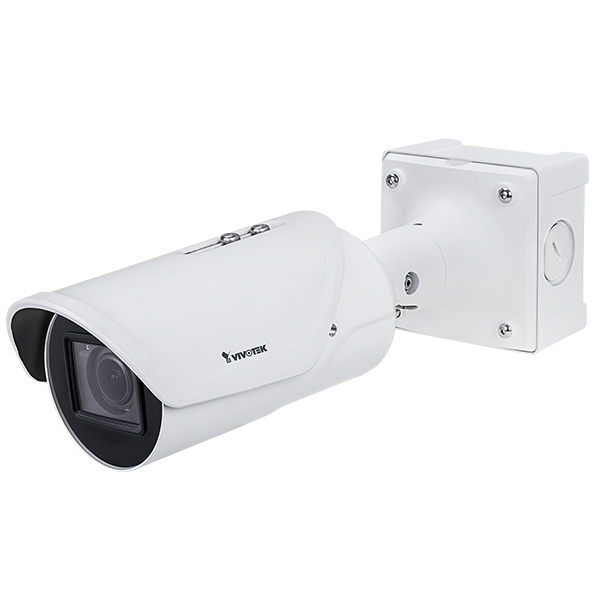

Vivotek 2MP Outdoor Bullet Network Camera - IB9365-EHT-A
Vivotek 2MP Outdoor Bullet Network Camera - IB9365-EHT-A
Regular price
$950.40 USD
Regular price
Sale price
$950.40 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
System Information
| Specification | Details |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 1 GB |
Camera Specifications
| Specification | Details |
|---|---|
| Image Sensor | 1/2" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 4 ~ 9 mm (f = 3.5 ~ 11.4 mm equivalent focal length @ 1/2.8") |
| Aperture | F1.3 ~ 2.2 |
| Iris Type | P-iris |
| Field of View | 100° ~ 46° (Horizontal), 52° ~ 26° (Vertical), 120° ~ 53° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators (Smart IR II, IR LED*6, up to 50 meters) |
| Minimum Illumination | 0.015 lux @ F1.3 (Color), <0.005 lux @ F1.3 (B/W), 0 lux with IR on |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | MicroSD/SDHC/SDXC (up to 256GB), NAS |
| Built-in Installation Aids | Remote focus, remote zoom, CVBS |
Video
| Specification | Details |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 (WDR Pro on), 60 fps @ 1920x1080 (WDR Pro off) |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 68dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, constant bit rate control, Smart Stream III |
Image Settings
| Specification | Details |
|---|---|
| General Settings | Video title and timestamp overlay, video orientation (flip, mirror, rotation), day/night settings |
| Illuminators | Anti-overexposure |
| Image Adjustments | White balance, brightness, contrast, saturation, sharpness, gamma curve, defog, 3DNR, EIS |
| Exposure | BLC, HLC, exposure control, AE speed adjustment, WDR |
| Focus | Zoom, focus |
| Privacy Mask | Yes |
| Scheduled Profiles | Yes |
Audio
| Specification | Details |
|---|---|
| Audio Capability | Two-way Audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input, External line output |
Network
| Specification | Details |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45), recommended standard CAT5e & CAT6 cables |
| ONVIF | Profile G, S supported |
Alarm and Event
| Specification | Details |
|---|---|
| Event Trigger | Audio detection, camera tampering, cybersecurity events, motion detection, system boot |
| Event Action | Notification via audio clip, email, HTTP, FTP, NAS server, SD card |
General
| Specification | Details |
|---|---|
| Connectors | RJ-45, Audio input/output, AC/DC power, Digital input/output (x2), BNC out |
| LED Indicator | System power and status |
| Power Input | IEEE 802.3at Class 4 PoE, DC 12V, AC 24V (Redundancy Supported) |
| Power Consumption | Max. 25 W (PoE) |
| Dimensions | 121 x 121 x 352.1 mm |
| Weight | 1.3 kg |
| Certifications | EMC, Safety, Environmental (IP66/IP67, IK10) |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -40°C ~ 60°C |
| Humidity | 0.98 |
System Requirements
| Specification | Details |
|---|---|
| OS | Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58+, Internet Explorer 11 |
| Players | VLC 1.1.11+ |
