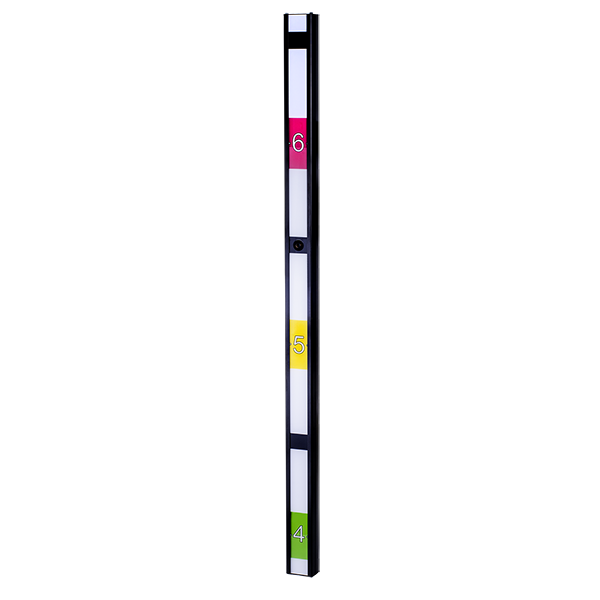

Vivotek 2MP Height Strip Panoramic Network Camera - CC9160-H (HS)

Product Information

• CPU: Multimedia SoC (System-on-Chip)
• Flash: 256 MB
• RAM: 512 MB


Camera Specifications

• Image Sensor: 1/2.8" Progressive CMOS
• Max. Resolution: 1920x1080 (2MP)
• Lens Type: Fixed-focal
• Focal Length: f = 1.66 mm
• Aperture: F1.95
• Iris Type: Fixed iris
• Field of View:
  • Horizontal: 180°
  • Vertical: 100°
  • Diagonal: 180°
• Shutter Time: 1/5 sec. to 1/32,000 sec.
• WDR Technology: WDR Pro
• Minimum Illumination: 0.03 lux@F1.95
• Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)


Video

Compression:

• H.265, H.264, MJPEG

Maximum Frame Rate:

• 30 fps @ 1920x1080

Maximum Streams:

• 3 video streams (Up to 8 configurable profiles)

S/N Ratio:

• 66.2 dB

Dynamic Range:

• 120 dB

Video Streaming:

• Adjustable resolution, quality, and constrained bit rate control
• Smart Stream III

Image Settings:

• General settings
• Video title and timestamp overlay
• Video orientation (flip, mirror)
• Image settings

Exposure:

• BLC (Backlight Compensation)
• HLC (Highlight Compensation)
• Exposure control (exposure level, exposure time, gain control)
• AE (Auto Exposure) speed adjustment
• WDR (Wide Dynamic Range)

Privacy Mask:

• Yes (to mask areas in the video)

Scheduled Profile Settings:

• Yes (to schedule recording profiles)


Solution Integration

• Video Motion Detection: Motion Detection (Five-window video motion detection)

Network

• Users:

  • Live viewing for up to 10 clients

• Security:

  • Access list
  • Digest authentication
  • HTTPS
  • IEEE 802.1x
  • Password protection
  • Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
  • User access log
  • User account management

• Protocols:

  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

• Interface:

  • 10Base-T/100 BaseTX Ethernet (RJ-45)
  • It is highly recommended to use standard Cat. 5e & Cat. 6 cables compliant with the 3P/ETL standard.

• ONVIF:

  • Profile G, S, T supported

Solution Integration

• Video Motion Detection: Motion Detection (Five-window video motion detection)

Alarm and Event

• Event Trigger:

  • Camera tampering detection
  • Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Manual trigger
  • Motion detection
  • Periodical trigger
  • Recording notification
  • SD card life expectancy
  • System boot
  • Digital input

• Event Action:

  • Event notification via email, HTTP, FTP, NAS server, SD card, push notification, digital output
  • File upload via email, HTTP, FTP, NAS server, SD card

General

• Connectors:

  • RJ-45 cable connector for 10/100 Mbps Network/PoE connection
  • Digital input
  • Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)

• LED Indicator:

  • System power and status indicator

• Power Input:

  • IEEE 802.3af PoE Class 2

• Power Consumption:

  • PoE: Max. 5W

• Dimensions:

  • 868 x 28 x 50 mm

• Weight:

  • 660 g

• Certifications (EMC):

  • CE (EN 55032 Class B, EN 55035)
  • FCC (FCC Part 15 Subpart B Class B)
  • UKCA (BS EN 55032: 2015 +A11: 2020)
  • RCM (AS/NZS CISPR 32 Class B)
  • VCCI (VCCI-CISPR 32 Class B)

• Certifications (Safety):

  • UL (UL 62368-1)
  • CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
  • UKCA (BS EN IEC 62368-1: 2020 +A11: 2020)

• Certifications (IA):

  • BIS (IS 13252)
  • BSMI (EMC: CNS 13438, Safety: CNS 14336-1)

• Operating Temperature:

  • Starting Temperature: 0°C ~ 45°C (32°F ~ 113°F)
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)

• Humidity:

  • 90% RH (non-condensing)

System Requirements

• Operating System:

  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)

• Web Browser:

  • Chrome 58.0 or above
  • Internet Explorer 10/11

• Other Players:

  • VLC: 1.1.11 or above
