Vivotek

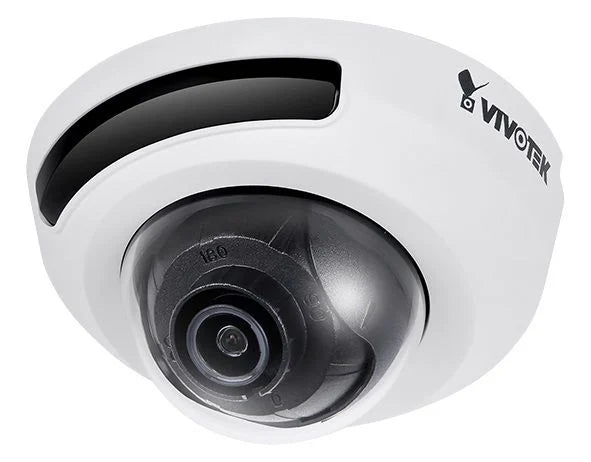

Vivotek 2 Megapixel Network IR Dome Camera - FD9166-HNF3
Vivotek 2 Megapixel Network IR Dome Camera - FD9166-HNF3
Regular price
$360.00 USD
Regular price
Sale price
$360.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| SKU | FD9166-HNF3 |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Vivotek |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 90 x 50 mm |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec. |
| Image Device | 1/2.9" Progressive CMOS |
| IR LEDs | 4 |
| IR Wavelength | 940nm |
| Minimum Scene Illumination | 0.16 lux @ F2.0 (Color), 0.01 lux @ F2.0 (B/W), 0 lux with IR illumination on |
| Operating Humidity | 90% |
| Operating Temperature | Starting: 0°C ~ 40°C (32°F~ 104°F), Working: -10°C ~ 55°C (14°F~ 131°F) (IR off), -10°C ~ 50°C (14°F~ 122°F) (IR on) |
| Power Consumption | Max. 5.5 W/2.8 W (IR on/off) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| S/N Ratio | 66 dB |
| Digital Noise Reduction | 3DNR |
| Angle of View | 89° (Horizontal), 47° (Vertical), 105° (Diagonal) |
| Motion Detection Tracking | Five-window video motion detection |
| IR Distance | 10m/32.8ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
