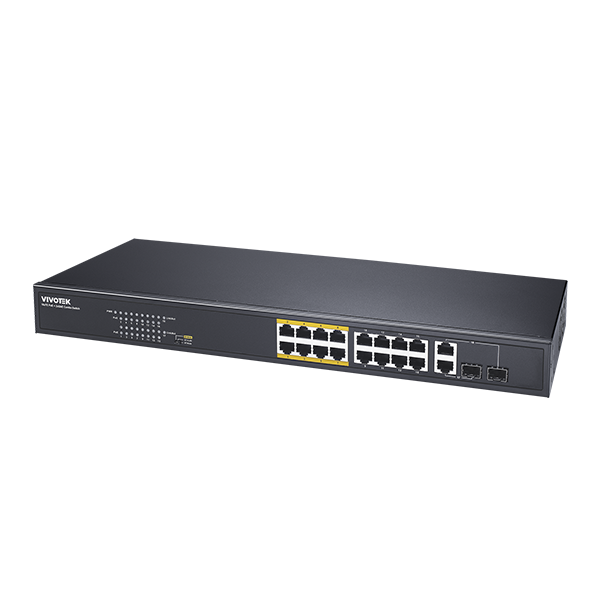

Vivotek 18 Ports Unmanaged PoE Swtich - AW-FGT-180F-250
Vivotek 18 Ports Unmanaged PoE Swtich - AW-FGT-180F-250
Regular price
$475.20 USD
Regular price
Sale price
$475.20 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Segment | Unmanaged PoE Switch |
| Product Description | 16xFE PoE + 2xGbE Combo |
| PoE Port Ethernet | 16xFE PoE |
| Uplink Port Ethernet | 2xGbE Combo |
| Total Ports | 18 |
| PoE Function | PoE Port |
| Max. PoE Output Power | 30W |
| PoE Power Budget | 240W |
| PoE Standard | 802.3 af/at |
| PoE Pin Assignment | 1/2 (+), 3/6 (-) |
| Surge Protection | 6KV |
| Switching Bandwidth | 7.2 Gbps |
| MAC Address | 16K |
| Jumbo Frames | 1,536 Bytes |
| Max. Power Consumption | 250W |
| PoE Management | Extended PoE Mode (up to 250m/10mbps) |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10 ~ 90% RH |
Mechanical Specifications
| Specification | Details |
|---|---|
| Dimensions | 440 (L) x 207 (W) x 44 (H) mm |
| Weight | 2.93 kg |
Power Source
| Specification | Details |
|---|---|
| Power Input | 100V ~ 240V |
| Frequency | 50 ~ 60 Hz |
Certifications
| Specification | Details |
|---|---|
| Types | CE, UKCA, LVD, VCCI |
