TriStar Security Products

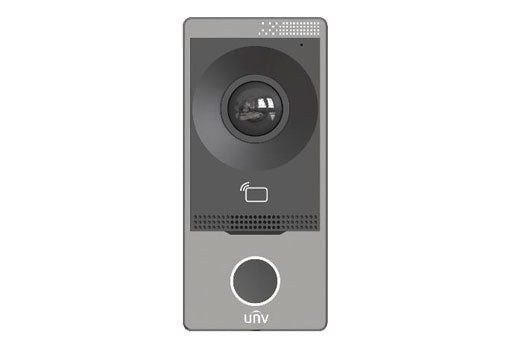

Uniview Villa Outdoor Station - OEU-201B-HMK-W
Uniview Villa Outdoor Station - OEU-201B-HMK-W
Regular price
$459.00 USD
Regular price
Sale price
$459.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Upgrade your home's security with the Uniview Villa Outdoor Station - OEU-201B-HMK-W. With advanced features and reliable performance, this outdoor station ensures clear communication and seamless entry control. Experience enhanced safety with this professional-grade outdoor station.
Specifications
| Parameter | Description |
| Power | DC 12V±25% input |
| Card capacity | 2000 |
| Operation system | Linux |
| Supplement light | IR light(Adaptive infrared compensation) |
| WDR | Support |
| FOV | Horizontal:124.3° Vertical:67.5° Diagonal:147.2° |
| Power consumption | ＜10W |
| Volume adjustment | Adjustable |
| Audio quality | Noise suppression,echo cancellation and AGC |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in speaker |
| Audio compression standard | PCM,G711,MP3 |
| Audio compression bitrate | 128Kbps |
| Protocol | UNV private protocol |
| Button | 1 physical button |
| Protection level | IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.) IK08 |
| Weight | 0.261Kg |
| Linked indoor station capacity | 20 |
| Mount method | Wall mounted, flush installation |
| Interface | Power *1, network port *1, WIFI, RS485, door lock interface *2, IO input *4 |
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply |
| Dimensions (L×H×W) | 78mm×170mm×34mm |
| Operating environment | ﹣30℃~﹢60℃,10%～90%, non-condensing, outdoor |
