TriStar Security Products

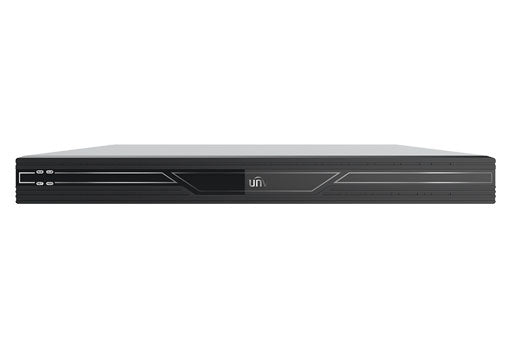

Uniview UNV Embed VMS Server - VMS-B180-A

Uniview UNV Embed VMS Server - VMS-B180-A

Regular price $3,439.00 USD
Regular price Sale price $3,439.00 USD
Sale Sold out
Shipping calculated at checkout.

As an expert in video management systems, the Uniview UNV Embed VMS Server - VMS-B180-A provides advanced features and capabilities to effectively store and manage video footage. With a powerful processor and extensive storage options, it offers a reliable and efficient solution for video surveillance needs.

Features:

  • Connection: Connect and manage 250 devices, 500 video channels.
  • Management: Unified management of IPC, NVR, decoder, network keyboard, alarm controller, access controller, cloud devices.
  • Bandwidth: 512Mbps input bandwidth, 384Mbps output bandwidth.
  • Compatibility: Support standard Onvif and RTSP.
  • Service: Live view, playback, sequence, video wall, GIS map, two-way audio, alarm-triggered actions, access control management.
  • Access: Browser/Server, Client/Server and mobile clients (both iOS and Android).
  • Smart: Multiple smart functions including cross line detection, intrusion detection, face detection, LPR, mixed traffic detection, people counting, behavior search, and alarms and reports.
  • Stability and reliability: Linux OS, 802.1x authentication, ARP protection, HTTPS, Telnet enabling/disabling, network fault tolerance, load balancing, multi-IP configuration, secure password, and IP address filtering.
  • Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online/offline status, HDD status, online users, bandwidth usage, packet loss rate, log query.
  • Interfaces: 4 x 1000Mbps Ethernet interfaces, 24 alarm inputs, 8 alarm outputs, 4 x USB 3.0, 1 HDMI and 1 VGA.

Specifications:

Item VMS-B180-A
Management Video 250 devices, 500 channels
Human/vehicle Can receive 100 vehicle or face images per second.
Note: The number of devices supported depends on the number of images sent from the devices per second. For example, if each device sends 1 image per second, then the server can connect 100 devices. If each device sends 5 images per second, then the server can connect 20 devices.
Decoding Video H.265, H.264
Resolution 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 960P/ 720P/ 960H/ D1/ 2CIF/ CIF/ QCIF
Output (local client) Independent output to HDMI and VGA
HDMI supports 4K resolution
Audio G.711A, G.711μ
Input Bandwidth 512Mbps
Output Bandwidth 384Mbps
User Management 50 online users
Device Management IPC, NVR, face recognition terminal, decoder, network keyboard, smart devices, alarm controller, access controller, and cloud devices.
Play Control 1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display
Corridor format
Up to 3 auxiliary monitors
Playback Play NVR recordings
16-ch synchronous playback
Speed: -256, -128, -64, -32, -16, -8, -4, -2, -1, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256
Data Info Alarm Records 200,000
Operation logs 200,000
Face capture records 3 million
Face alarm records 3 million
Vehicle pass-through records 3 million
Structured motor vehicle, non-motor vehicle and pedestrian records 3 million
Access control entry/exit records 3 million
External Interface


Network 4 × 10M/100M/1000M Base-T adaptive Ethernet interfaces
USB 4 × USB3.0
Serial 1 × RS232 (RJ45), 1 × RS485 (RJ45)
Alarm input/output 24 alarm inputs, 8 alarm outputs
Power output 12V DC
Power 100-240V AC, with power switch
Others Power consumption ≤ 40W
Operating temperature -10°C to 55°C (14°F to 131°F)
Operating humidity 10%-90% (noncondensing)
Weight ≤ 4.1 Kg (without HDD)
Dimensions
(D×W×H)
Height: 1U
400mm x 346mm x 48mm(17.3"×13.6"×1.9")
View full details
