Uniview Prime X Series 16 Channel NVR - NVR304-16X

Uniview Prime X Series 16 Channel NVR - NVR304-16X

$2,339.00 USD
$2,339.00 USD
Sale Sold out
Shipping calculated at checkout.

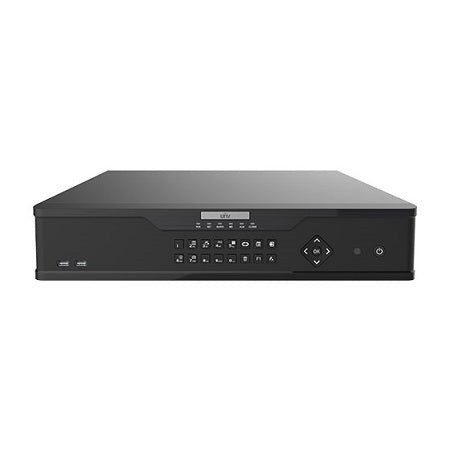

The Uniview Prime X Series 16 Channel NVR - NVR304-16X is a high-quality network video recorder designed for security and surveillance systems. With 16 channels, it offers wide coverage and the ability to connect multiple cameras. Utilizing advanced technology and reliable performance, it ensures smooth and efficient video recording for optimal security.

Features

  • Supports Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Supports 2-ch HDMI, 1-ch VGA.HDMI1 and HDMI2 up to 4K (3840x2160) resolution
  • HDMI1, HDMI2, VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Supports RAID 1, 5
  • 4 SATA HDDs, Up to 10TB for each HDD
  • Complies with Section 889 of the NDAA


Specifications

Category Details
Video/Audio Input IP Video Input: 16 channels
Two-way Audio Input: 1 channel, RCA
Network Incoming Bandwidth: 384Mbps
Outgoing Bandwidth: 384Mbps
Remote Users: 128
Protocols: P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output HDMI/VGA Output:
VGA: 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
HDMI1/HDMI2: 30fps @ 4K (3840x2160), 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
Audio Output: 1 channel, RCA
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback 16 channels
Corridor Mode Screen 3/4/5/7/9/10/12/16
Decoding Decoding Format: Ultra 265, H.265, H.264
Liveview/Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Decoding Capability: 2x 30fps @ 12MP, 4x 30fps @ 4K, 8x 30fps @ 4MP, 9x 25fps @ 4MP, 16x 30fps @ 1080P
Hard Disk SATA: 4 SATA interfaces
Capacity: Up to 10TB for each HDD
Disk Array Array Type: RAID 1, 5
External Interface Network Interface: 2 RJ45 10M/100M/1000M self-adaptive Ethernet
Serial Interface: 1 x RS485, 1 x RS232
USB Interface: 2 x USB2.0 (front), 1 x USB3.0 (rear)
Alarm In/Out 16-ch In, 4-ch Out
General Power Supply: 100~240 VAC
Power Consumption: ≤ 25 W (without HDD)
Working Environment: -10°C ~ +55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions 442mm × 426mm × 89mm (17.4" × 16.8" × 3.5")
Weight ≤ 5.7Kg (12.57lb)
