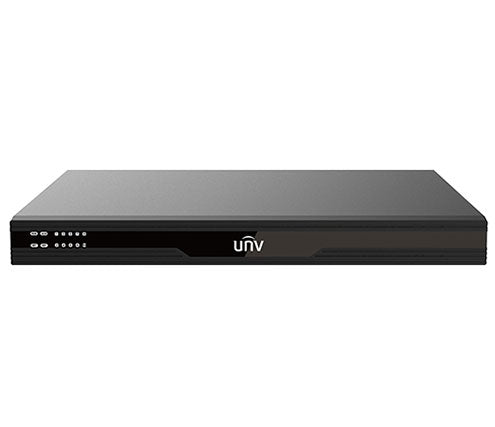

Uniview High Definition Video Decoder - DC5510-E-V2
Uniview High Definition Video Decoder - DC5510-E-V2
Regular price
$4,059.00 USD
Regular price
Sale price
$4,059.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Experience stunning video quality with the Uniview High Definition Video Decoder - DC5510-E-V2. This powerful decoder utilizes top-of-the-line technology to deliver crystal clear images and videos. With its high definition capabilities, you can expect unmatched visual clarity and precision. Enhance your viewing experience and stay ahead of the curve with the DC5510-E-V2.
Key Features:
- Provide 4/6/10 HDMI output interfaces
- Provide 2 HDMI input interface
- Up to 3840x2160@60Hz via HDMI output interfaces
- Up to 1920x1080@60Hz via HDMI input interfaces
- Up to decoding at 8MP resolution
- DC5504-E-V2 Support 4-ch@4K/16-ch@1080P/36-ch@720P/64-ch@D1 decoding ability
- DC5506-E-V2 Support 6-ch@4K/24-ch@1080P/54-ch@720P/96-ch@D1 decoding ability
- DC5510-E-V2 Support 10-ch@4K/40-ch@1080P/90-ch@720P/160-ch@D1 decoding ability
- Decode video stream in H.265/ H.264/ MPEG4/ MPEG2/ MJPEG
- 1/2/3/4/6/7/9/16 display split
- Standard ONVIF video stream supported
- Support multicast
- Support up to 4/6/10 video-wall display units
Specifications:
| Model | DC5510-E-V2 | ||
| Video Output | |||
| Output channel | 10 | ||
| HDMI output | 3840x2160(4K)@60HZ、3840x2160(4K)@30HZ、1920x1080(1080P)@60HZ、1600x1200(UXGA)@60HZ、1440x900(WXGA+)@60HZ、1280x1024(SXGA)@60HZ、1280x720(720P)@60HZ、1024x768(XGA)@60HZ | ||
| Video input | |||
| Input channel | 2*HDMI (video only) | ||
| HDMI input | 1920x1080(1080P)@60HZ、1920x1080(1080P)@50HZ、1600x1200(UXGA)@60HZ、1440x900(WXGA)@60HZ、1280x1024(SXGA)@60HZ、1280x720(720P)@60HZ、1280x720(720P)@50HZ、1024x768(XGA)@60HZ | ||
| Video Decoding | |||
| Video Stream Format | H.265, H.264, MPEG4, MPEG2, MJPEG | ||
| Decoding Capability | 10x3840x2160@30、40x1080P@30、90x720P@30、160xD1 | ||
| Display split | 1/2/3/4/6/7/9/16 | ||
| External Interface | |||
| Audio Input | 2-ch (Reservation) | ||
| Audio Output | 1-ch (3.5mm) | ||
| Alarm Input | 6(Reservation) | ||
| Alarm Output | 3(Reservation) | ||
| USB Interface | 1*USB 3.0 | ||
| Serial Interface | 1*RS-232, 1*RS485 | ||
| Network Interface | 1*RJ-45 , 10M/100M/1000M adaptive Ethernet Interfaces | ||
| General | |||
| Dimensions(W×H×D)(mm) | 440mm × 339 mm × 44mm | ||
| Weight | 3 | 3.37kg | |
| Working Temperature | -10~55°C | ||
| Working Humidity | 10% ~ 90%(No-condensing) | ||
| Power Supply | 100V ~ 240V AC; 50Hz/60Hz | ||
| Consumption | 31W | ||
