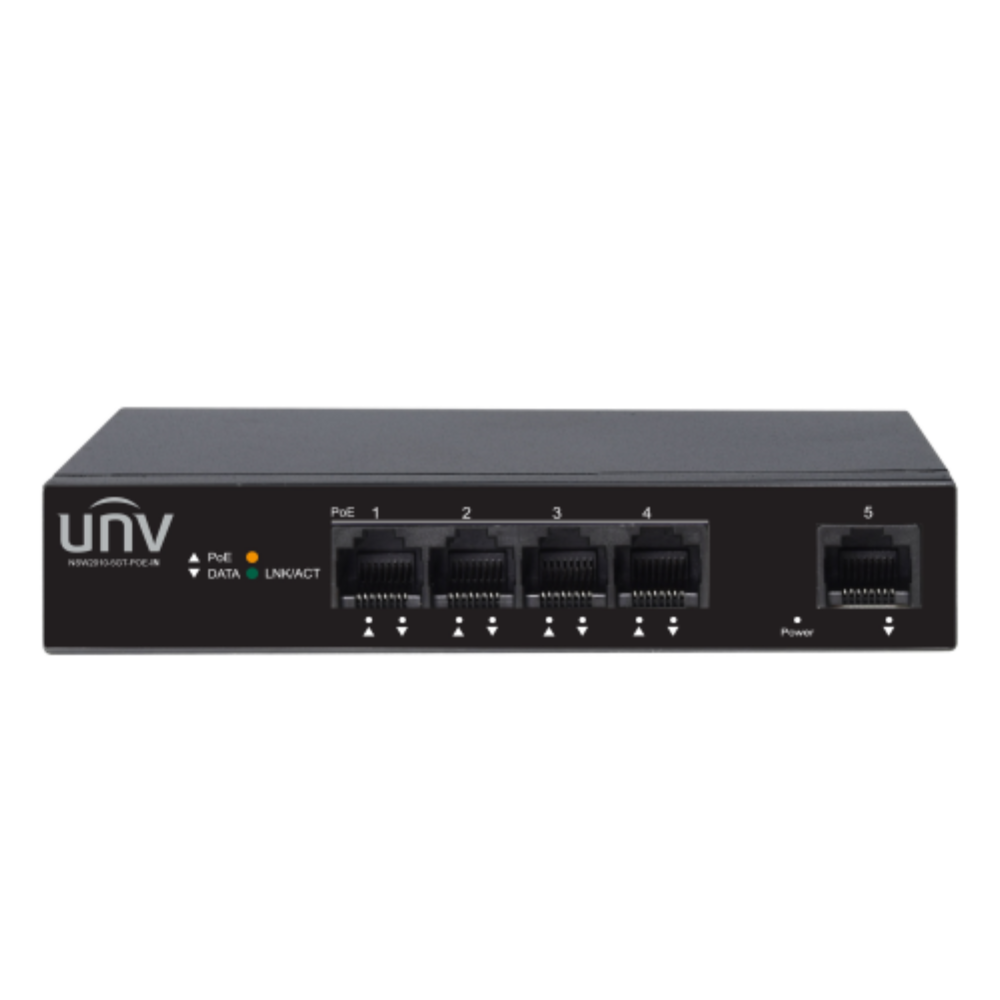

Uniview Ethernet Switch(POE) - NSW2010-5GT-POE-IN
Uniview Ethernet Switch(POE) - NSW2010-5GT-POE-IN
The Uniview Ethernet Switch(POE) - NSW2010-5GT-POE-IN is a high-performance network switch designed for maximum efficiency and reliability. With power over ethernet capabilities, it provides seamless power and data transmission, making it ideal for businesses and organizations looking to enhance their network infrastructure. Its compact design and advanced features make it a versatile and cost-effective solution for all your networking needs.
Features
• Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
• Supports PoE Power up to 30W for each PoE port;
• Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
• Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
• Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
• Line-speed forwarding, intelligent identification
• Supports storage – and- forward for Data exchange;
Specifications
Hardware Specification | ||||||||
Ports Type | 4×1000Mbps PoE ports (RJ45)+1×1000Mbps ports(RJ45) | |||||||
Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
Switching capacity | 10Gbps | |||||||
Forwarding performance | 7.44Mpps | |||||||
Packet Buffer | 1M bit | |||||||
MAC | 2K | |||||||
Weight | <1 kg | |||||||
Dimensions (W×D×H) | 140mm x 76.7mm x 27.7mm (5.5"×3"×1.1") |
|||||||
Power supply | AC: 100-240 V, 50/60 Hz | |||||||
PoE | support POE | |||||||
Max. PoE Power | Max capacity: 60W, Max capacity for single port: 30W |
|||||||
Cooling Fans | 0 | |||||||
Storage Temperature | -40 °C ~ 70 °C | |||||||
Operating temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) | |||||||
Operating humidity | 10%~90% (noncondensing) | |||||||
Storage humidity | 5%~90% (noncondensing) | |||||||
Indicator | PWR (Green), LNK/ACT (Green), PoE (Orange) |
