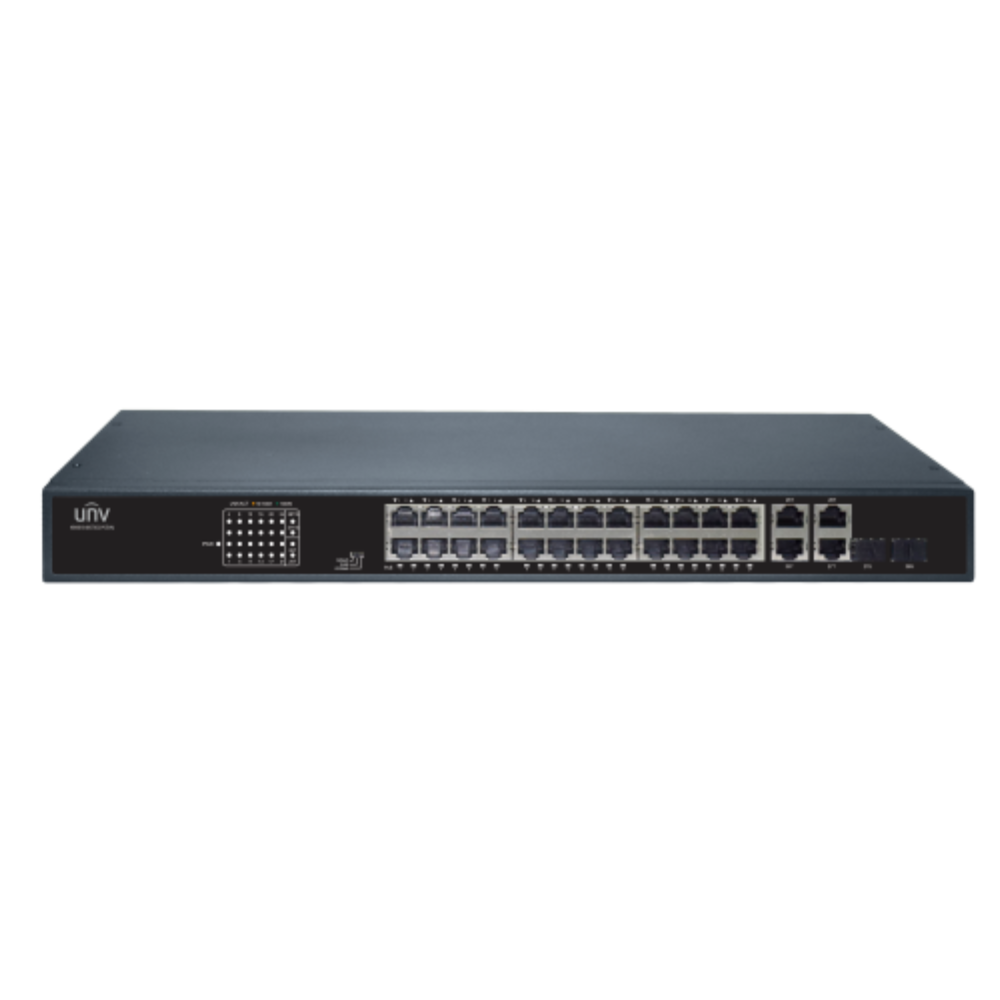

Uniview Ethernet Switch(POE) - NSW2010-26GT2GC-POE-IN
Uniview Ethernet Switch(POE) - NSW2010-26GT2GC-POE-IN
Boost your network's performance with the Uniview Ethernet Switch(POE) - NSW2010-26GT2GC-POE-IN. With 26 gigabit ports, advanced POE technology, and a sleek design, this switch delivers high speeds, efficient power distribution, and a professional look. Perfect for businesses and industries that demand top-notch networking capabilities.
Features
• Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
• Supports PoE Power up to 30W for each PoE port;
• Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
• Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
• Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
• Line-speed forwarding, intelligent identification
• Supports storage – and- forward for Data exchange;
Specifications
Hardware Specification | ||||||||
Ports Type | 24×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports(Combo) | |||||||
Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az | |||||||
Switching capacity | 56Gbps | |||||||
Forwarding performance | 41.7Mpps | |||||||
Packet Buffer | 4M bit | |||||||
MAC | 8K | |||||||
Power supply | AC: 100-240 V, 50/60 Hz | |||||||
PoE | support POE | |||||||
Max. PoE Power |
Max capacity: 370W, Max capacity for single port: 30W |
|||||||
Cooling Fans | 2 | |||||||
Weight | <5kg | |||||||
Indicator | PWR (Green), LNK/ACT (Green), PoE (Orange) | |||||||
Dimensions (W×D×H) | 440mm x 207mm x 44mm (17.3"×8.1"×1.7") |
|||||||
Storage Temperature | -40 °C ~ 70 °C | |||||||
Operating temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) | |||||||
Storage humidity | 5%~90% (noncondensing) | |||||||
Operating humidity | 10%~90% (noncondensing) | |||||||
Working Mode | Default(Normal mode) : All ports can communicate with each other., VLAN(Secure mode): Downlink ports can communicate only with uplink ports., Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
